Giantz QB60 370W Automatic Peripheral Water Pump with Controller

Giantz QB60 370W Automatic Peripheral Water Pump with Controller

Make everyday water management easier with the Giantz QB60 Automatic Peripheral Water Pump. Designed for clean-water transfer, garden watering and household water pressure boosting, this pump combines a 370W motor with an automatic pressure controller for convenient operation.

Key Features

• 370W Motor: 0.5HP motor designed for household and garden water pumping.
• Maximum Flow Rate: Up to 35 litres per minute (2,100 litres per hour).
• Maximum Delivery Head: Up to 35 metres.

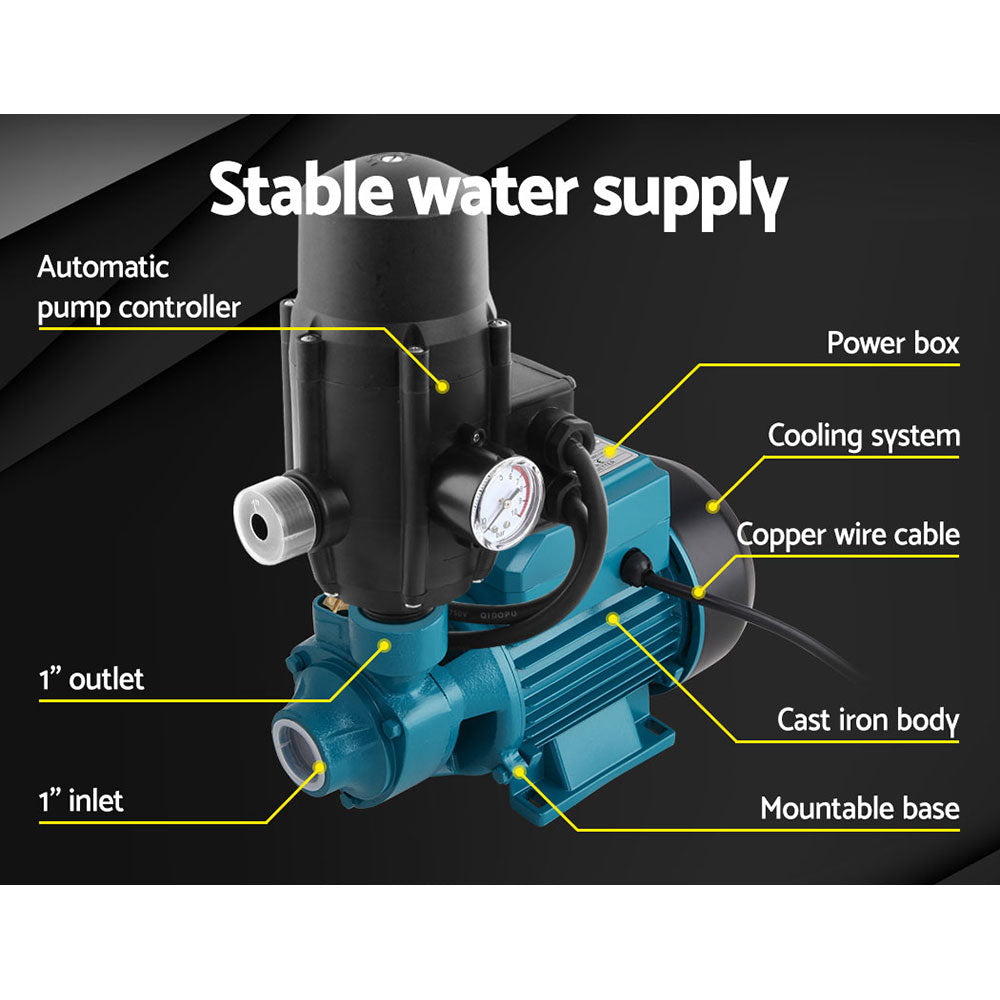

• Automatic Pump Controller: Automatically switches the pump on and off in response to tap operation and water demand.

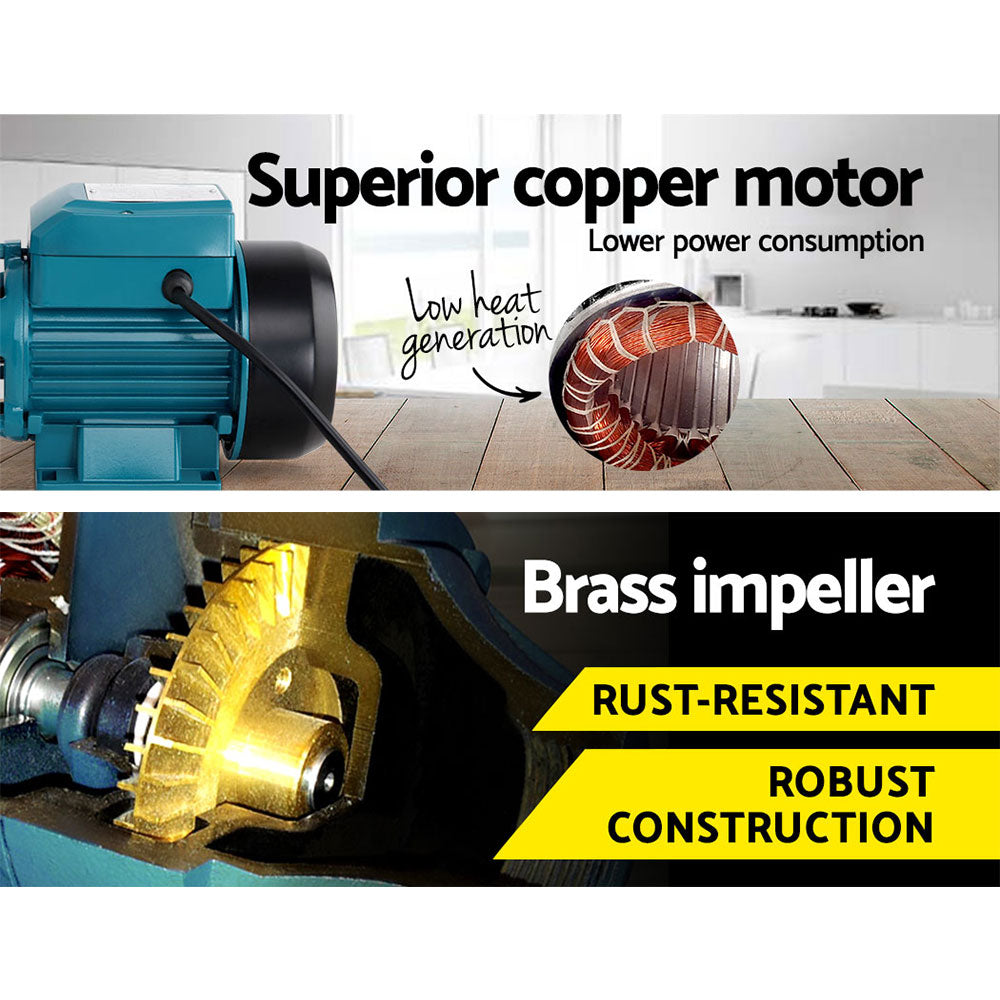

• Brass Impeller: Rust-resistant construction for dependable performance.
• Copper Motor Wiring: Designed for effective electrical conductivity.

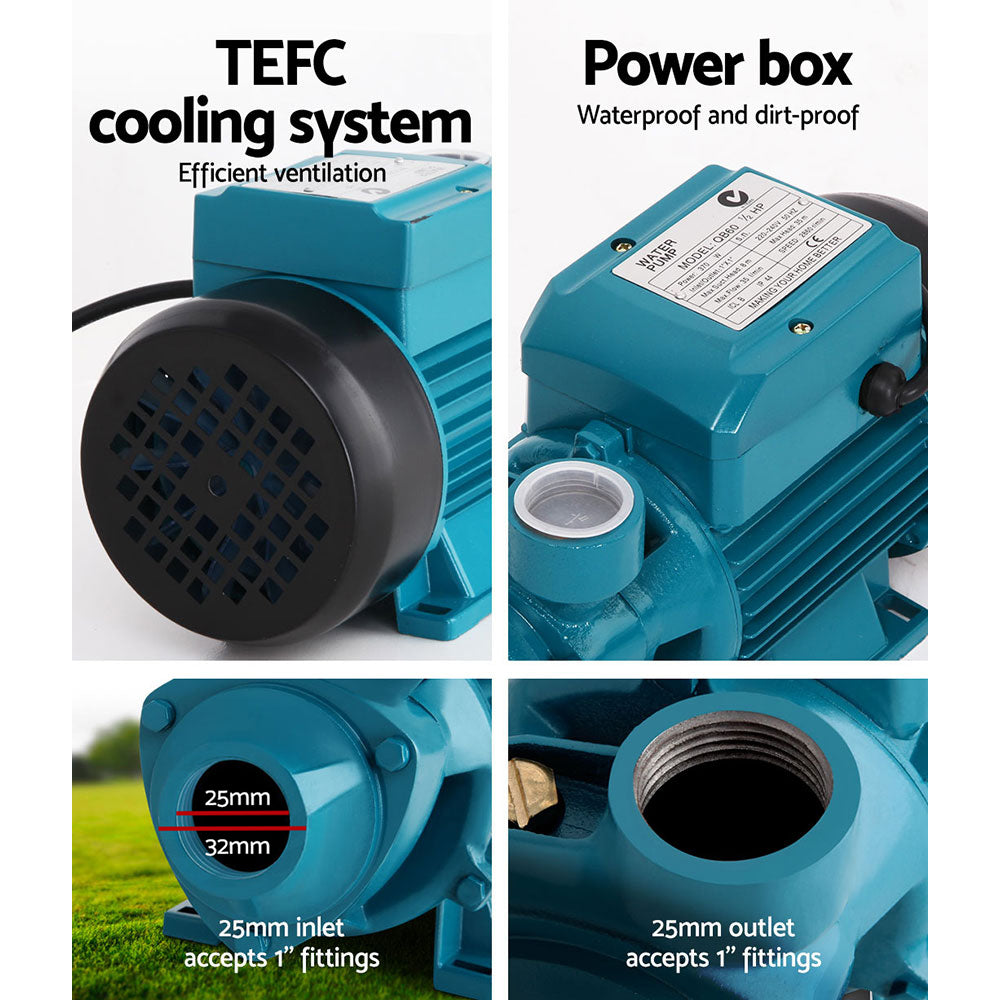

• TEFC Cooling System: Helps protect the motor during operation.
• Stable Mounting Base: Supports secure pump installation.
• Easy Operation: Designed for convenient installation and maintenance.

Suitable Applications

• Garden watering and sprinklers
• Garden and small-scale irrigation
• Household water pressure boosting
• Clean-water transfer
• Compatible pool pumping applications
• General cleaning tasks requiring a suitable clean-water supply

Technical Specifications

• Brand: Giantz
• Model: QB60 with pump controller
• Pump Type: Automatic peripheral clean-water pump
• Motor Power: 370W / 0.5HP
• Voltage: 220–240V
• Frequency: 50Hz
• Maximum Flow Rate: 35L/min (2,100L/hour)
• Maximum Delivery Head: 35m
• Maximum Suction Lift: 8m (listed specification)
• Maximum Pump Pressure: 3.5 bar
• Protection Rating: IP44
• Inlet/Outlet Size: 1 inch
• Motor Wire: Copper
• Impeller Material: Brass
• Stator Size: 45mm
• Pump Weight: 4.5kg

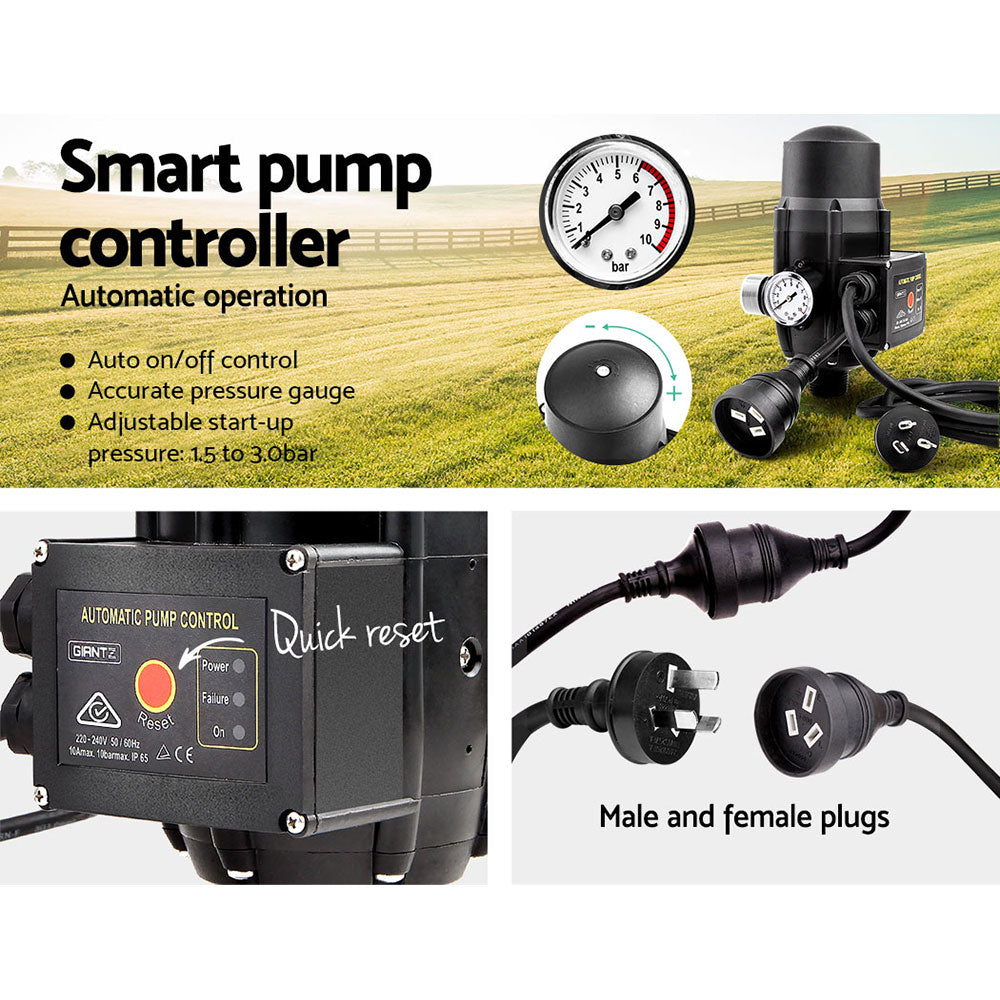

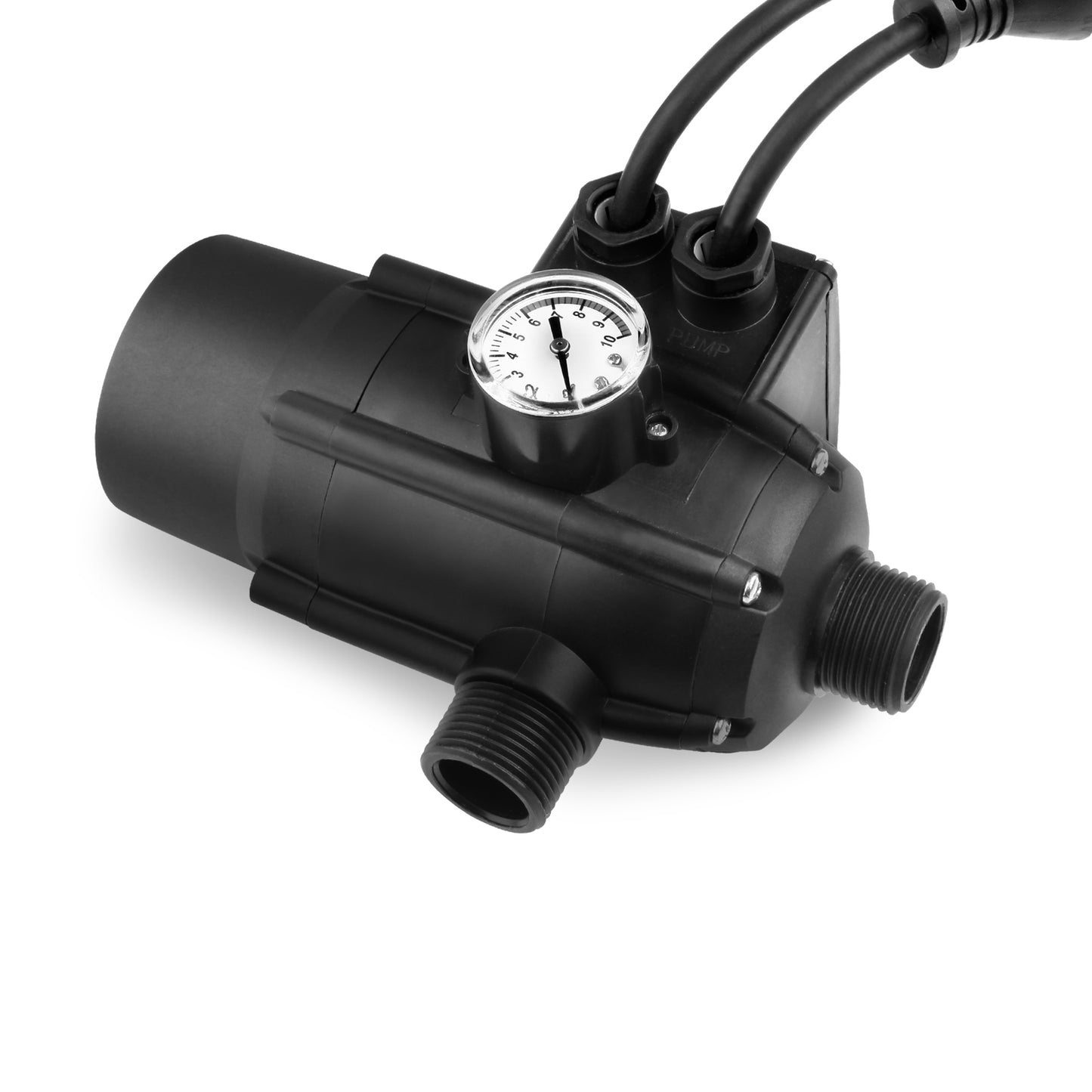

Automatic Controller Specifications

• Operating Voltage: 220–240V
• Frequency: 50/60Hz
• Maximum Current: 10A
• Protection Rating: IP65
• Maximum Water Temperature: 60°C
• Starting Pressure: 1.5–3 bar
• Maximum Working Pressure: 10 bar

Package Includes

• 1 × Giantz QB60 Clean Water Pump
• 1 × Automatic Pump Controller

Important Information

Maximum flow rate, delivery head and suction lift are rated limits; actual performance depends on installation, pipework and operating conditions. Use with clean water and confirm compatibility with your intended application. Follow the manufacturer's installation and electrical safety instructions.

Warranty: 1 year.
