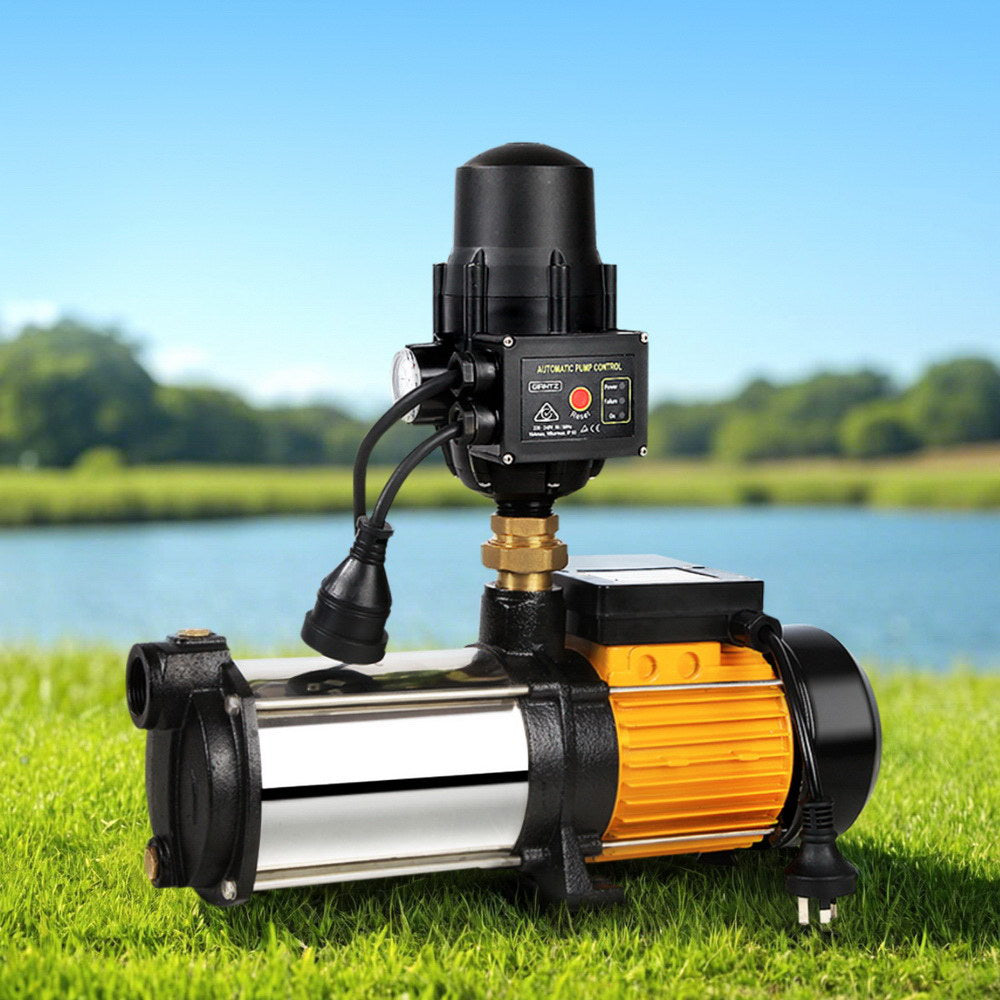

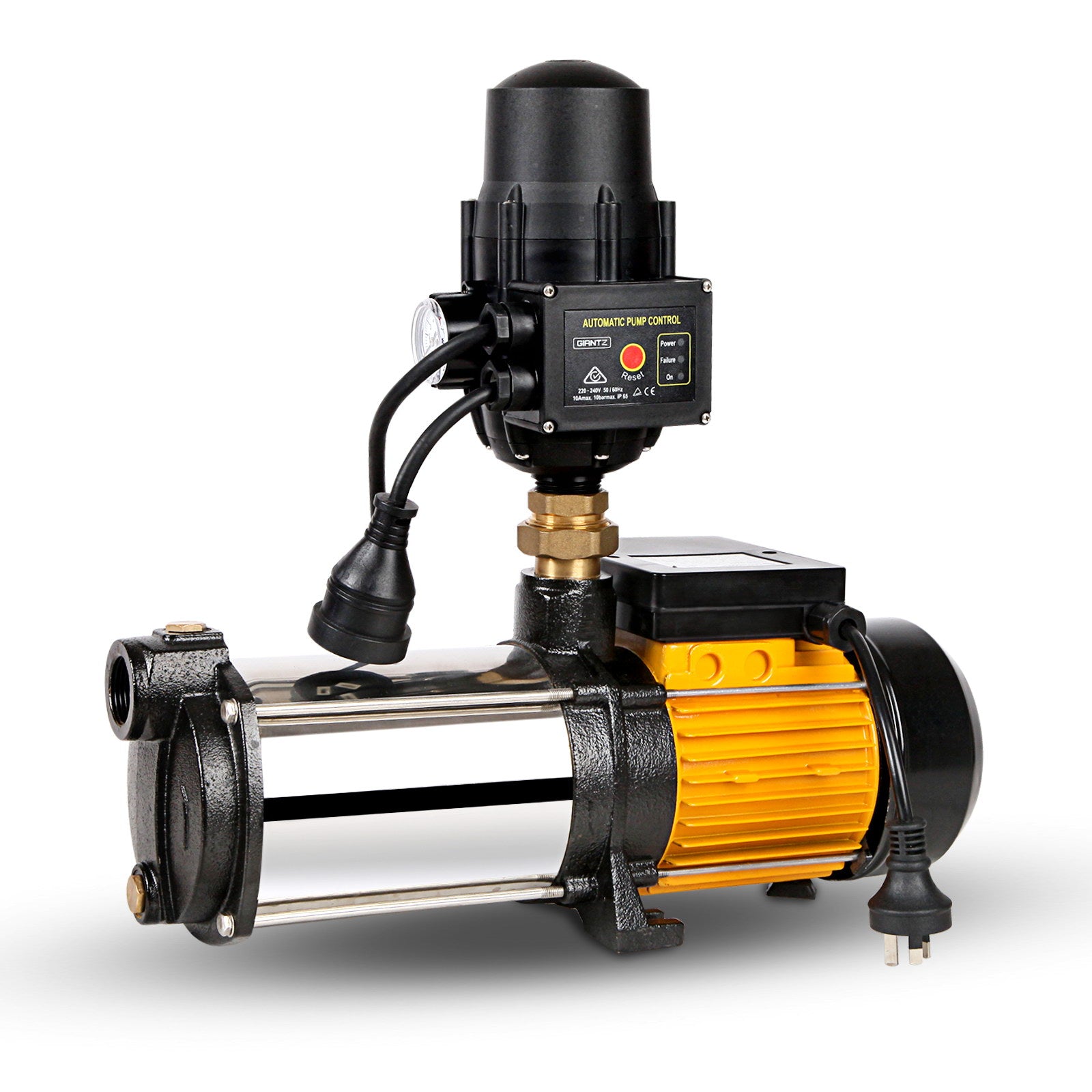

Giantz 2000W 4-Stage High Pressure Garden Water Pump with Automatic Controller – Black

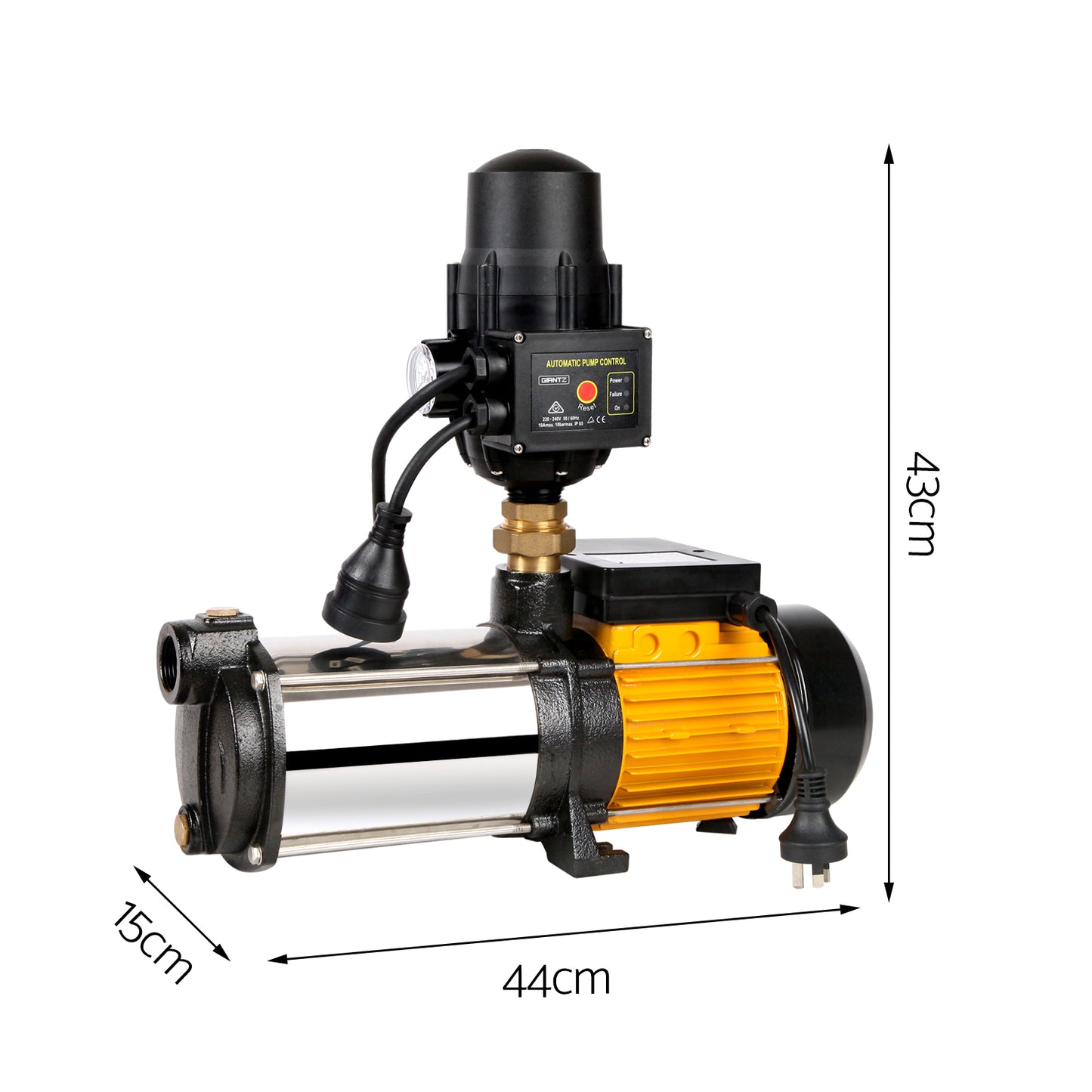

Giantz 2000W 4-Stage High Pressure Garden Water Pump – Black

The Giantz 4-Stage High Pressure Water Pump is designed to provide reliable water pressure for domestic water supply, garden irrigation, farm watering and rainwater tank transfer. Its multi-stage pump design and automatic pressure controller help deliver water on demand for suitable home and garden systems.

With a maximum input power of 2000W, a maximum flow rate of 7200L/hour and a maximum pumping head of 51m, this pump is suitable for a range of household water supply and irrigation applications.

Key Features

• 2000W maximum input power
• 1100W rated input power
• 4-stage self-priming multi-stage pump
• Maximum flow rate of 7200L/hour (120L/min)
• Maximum head of 51m
• Fully automatic on/off pressure controller

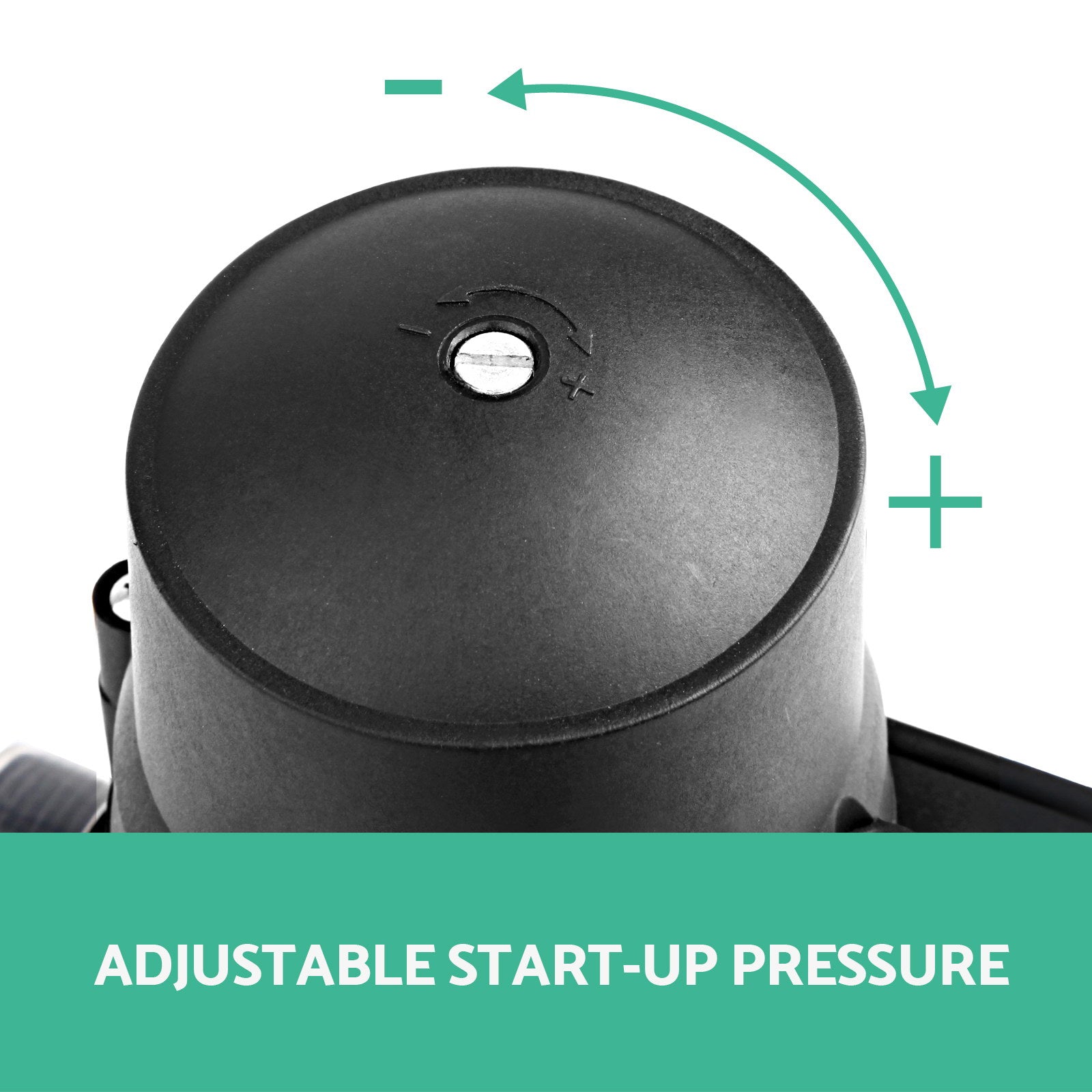

• Adjustable start-up pressure
• Stainless steel pump casing with cast iron ends

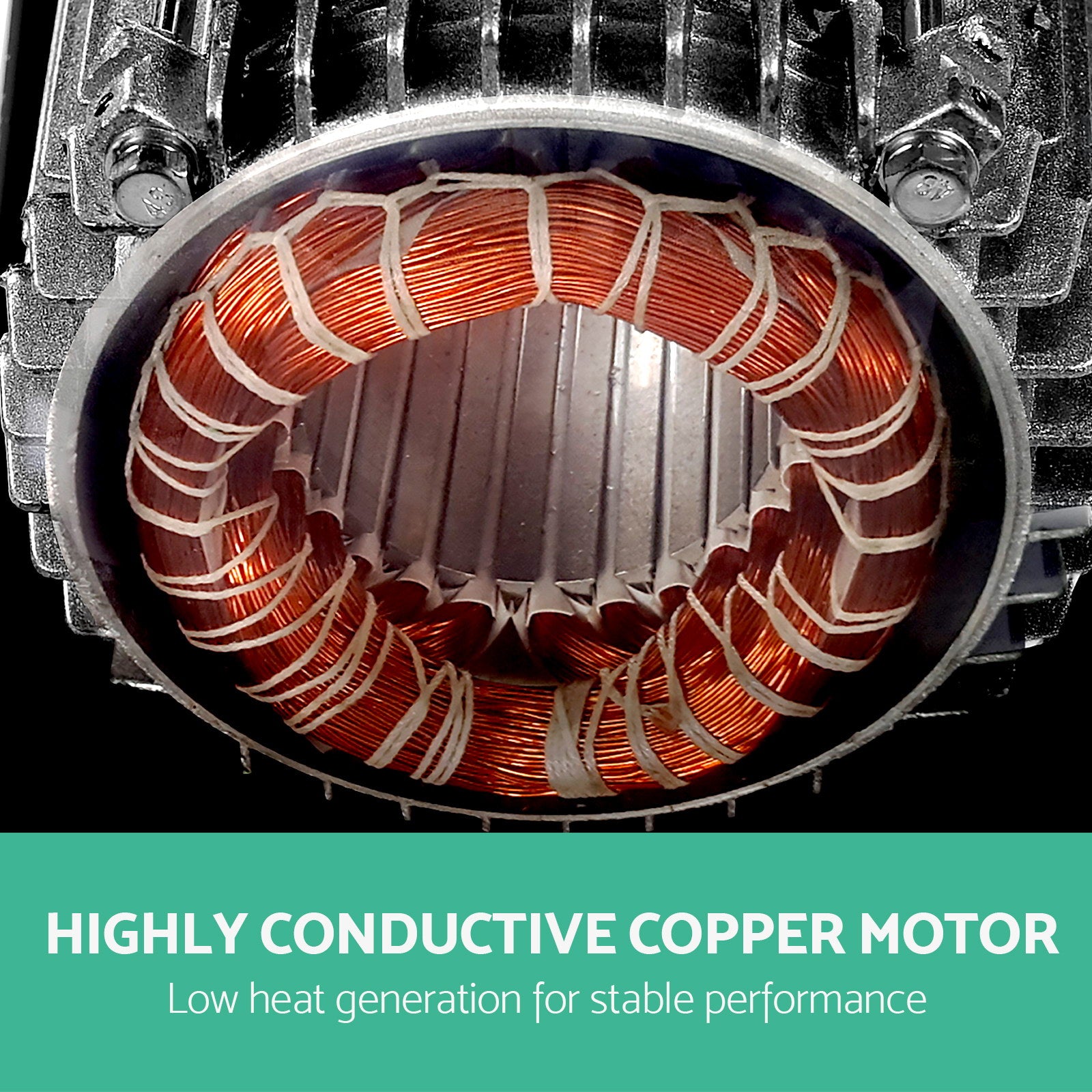

• Copper-wire motor
• Anti-corrosive alloy motor housing
• Ceramic and carbon mechanical seals

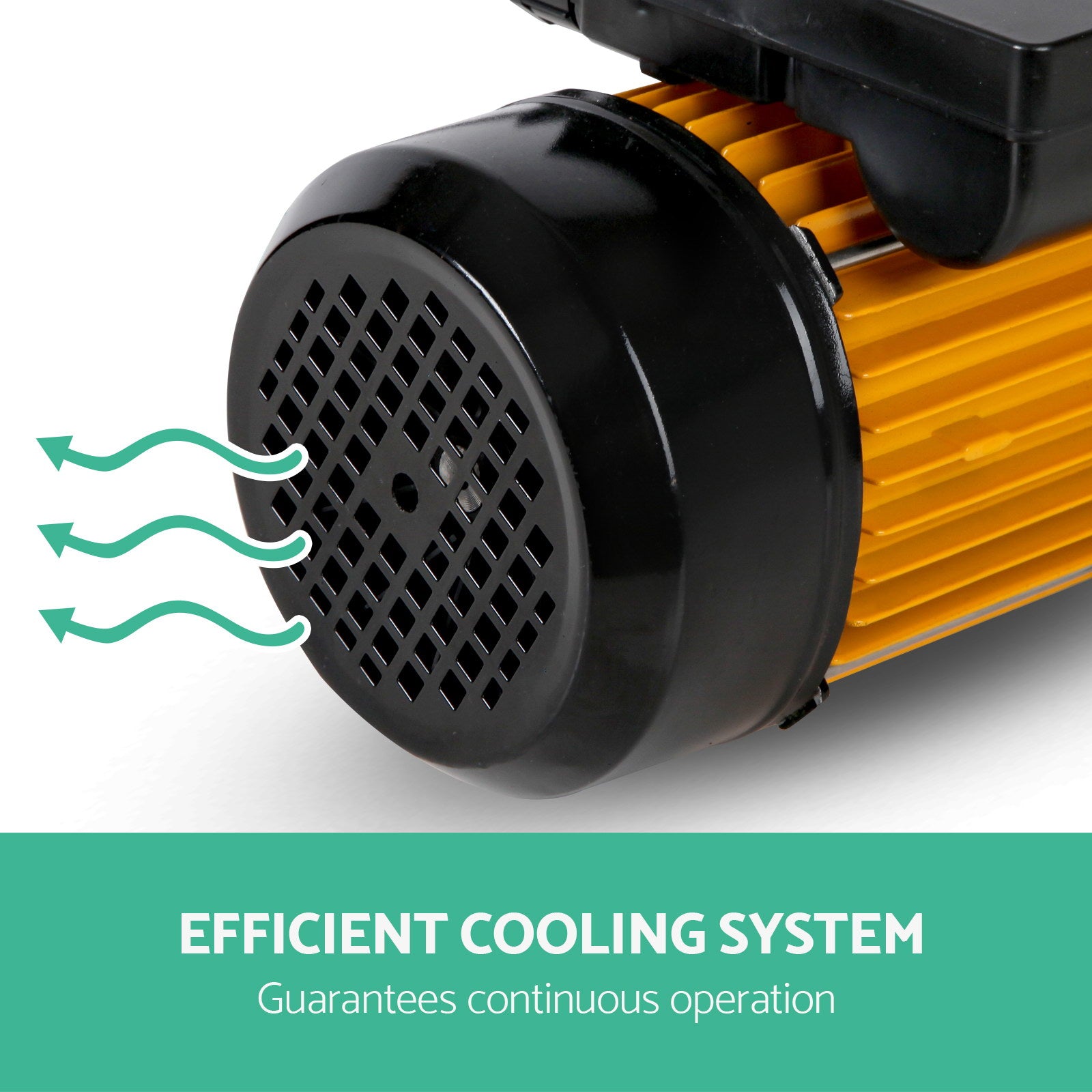

• Built-in thermal protection and efficient cooling

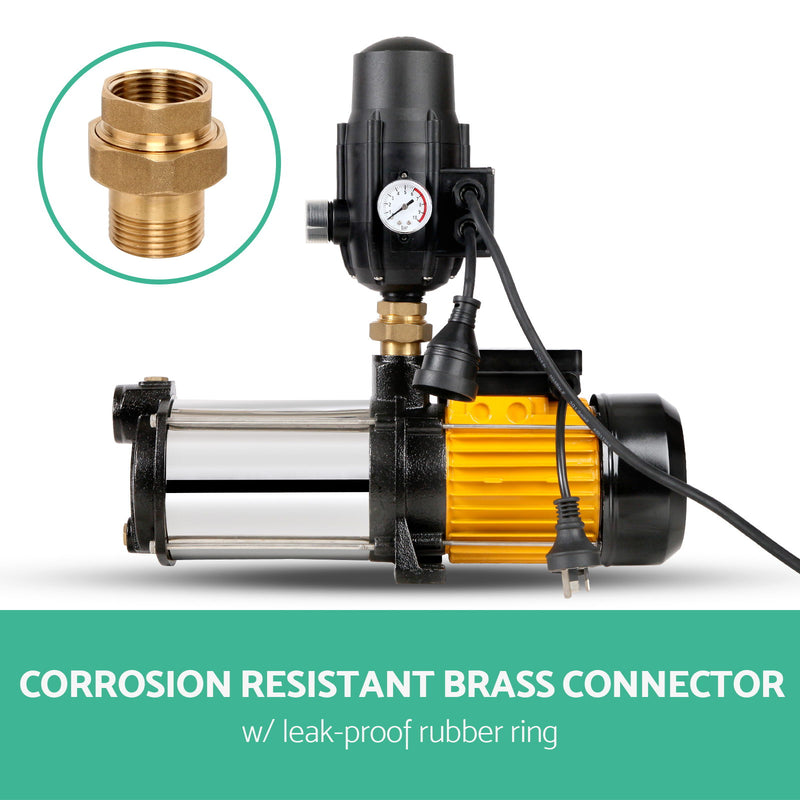

• Corrosion-resistant brass connector
• Leak-resistant rubber sealing ring
• Australian-standard cable and plug
• 1-year warranty

Technical Specifications

• Brand: Giantz
• Model / product code: PUMP-ST4-20-OG-TPC
• Colour: Black (as named in the product listing)
• Maximum input power: 2000W
• Rated input power: 1100W
• Number of stages: 4
• Maximum flow rate: 7200L/hour (120L/min)
• Maximum head: 51m
• Inlet and outlet: 1 inch (25mm)
• Brass connector: 1 inch
• Power cord: SAA 250V / 10A, 0.6m
• Protection rating: IP44
• Mechanical seal: Ceramic/carbon
• Pump weight: 14.5kg

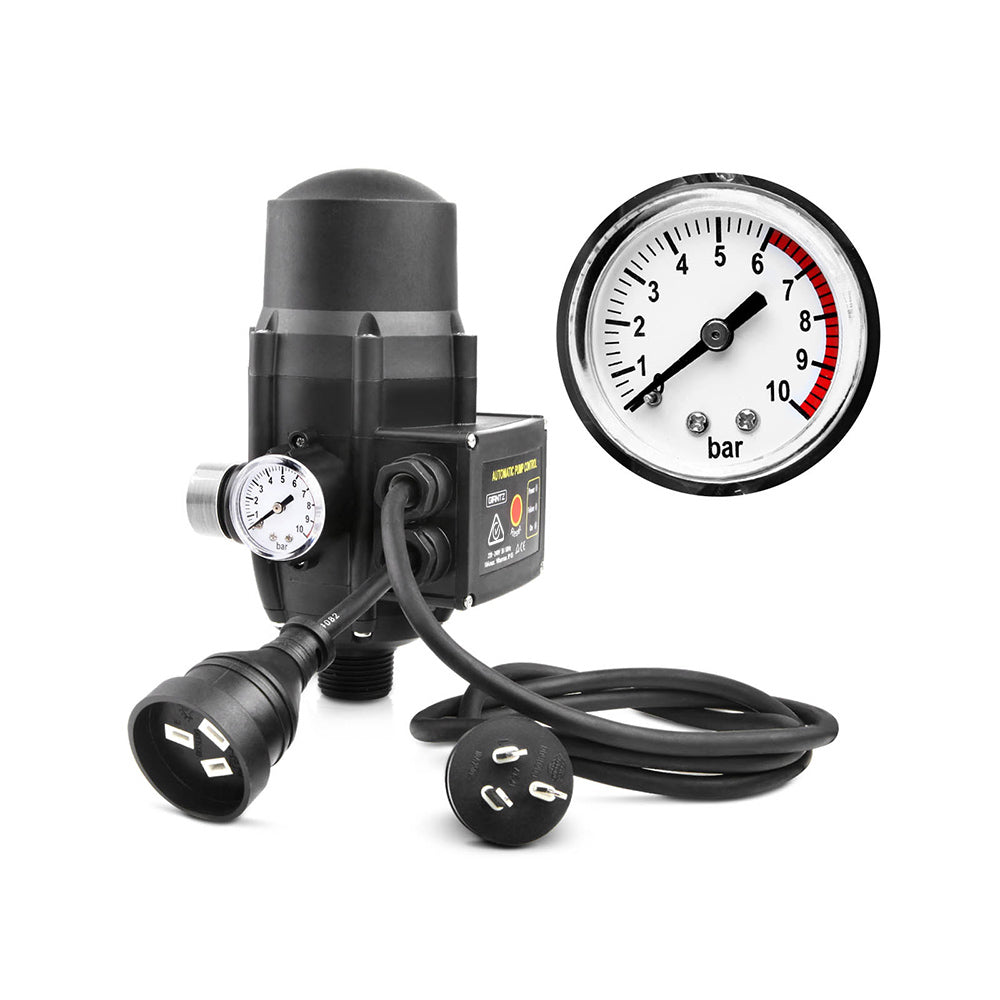

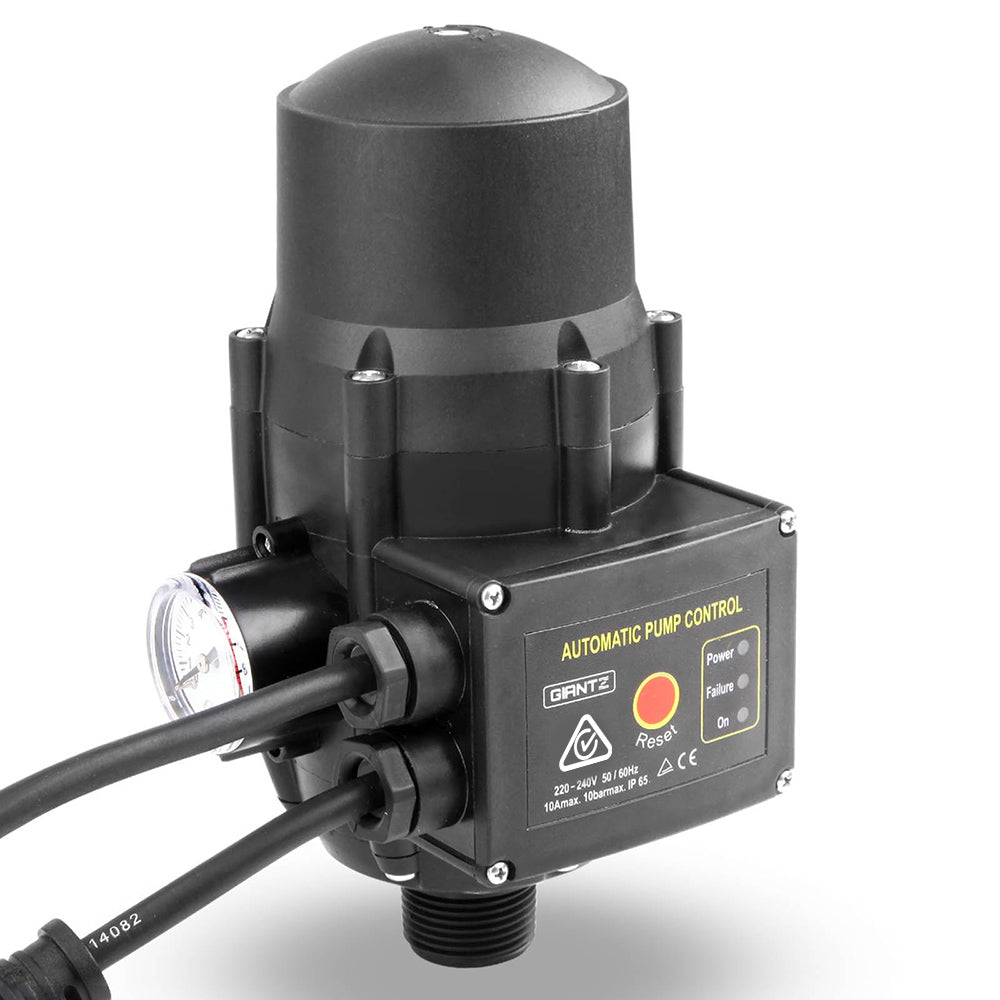

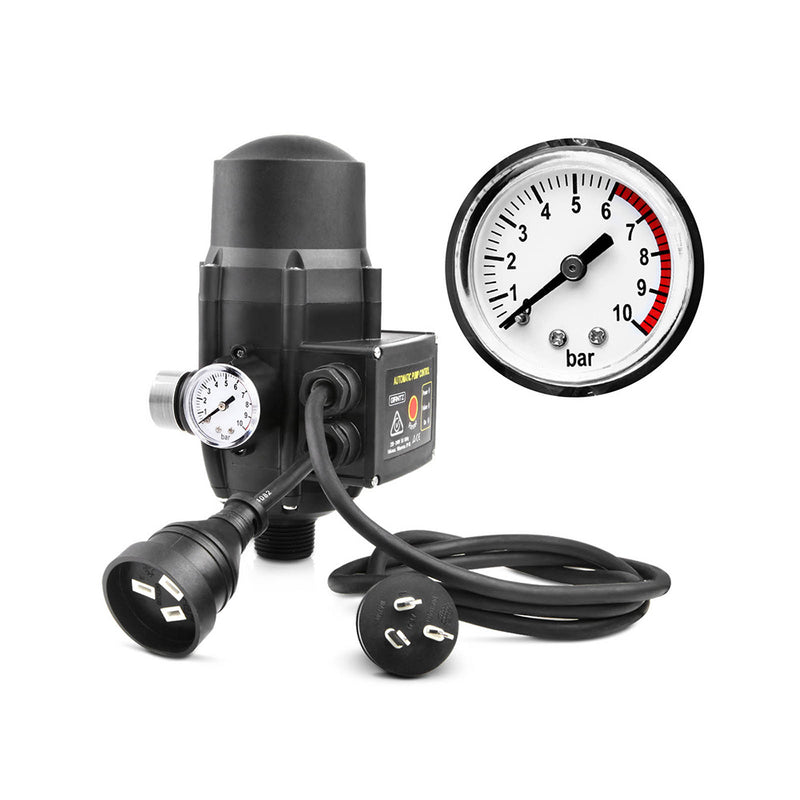

Automatic Controller Specifications

• Voltage: 220–240V
• Frequency: 50/60Hz
• Maximum current: 10A
• Starting pressure: 1.5–3 bar
• Maximum operating pressure: 10 bar
• Maximum water temperature: 60°C
• Protection rating: IP65
• Inlet and outlet: 1 inch (25mm)
• Dimensions: 22 × 15 × 15cm
• Controller weight: 1.5kg

Package Contents

• 1 × Giantz 4-stage water pump
• 1 × Automatic pump controller

Suitable Applications

• Domestic water supply and pressure boosting
• Garden and farm irrigation
• Rainwater tank or well water transfer
• Water supply to compatible household fixtures
• Water circulation in suitable ponds and small fountains

Important Usage Information

This pump is not designed for heavy-duty industrial, commercial or hydraulic applications, elevators or industrial machinery. Follow the manufacturer's installation instructions and ensure the electrical supply and plumbing system are suitable.

The maximum flow rate and maximum head are separate performance ratings and should not be expected simultaneously. Actual performance depends on pipework, elevation and system resistance.
