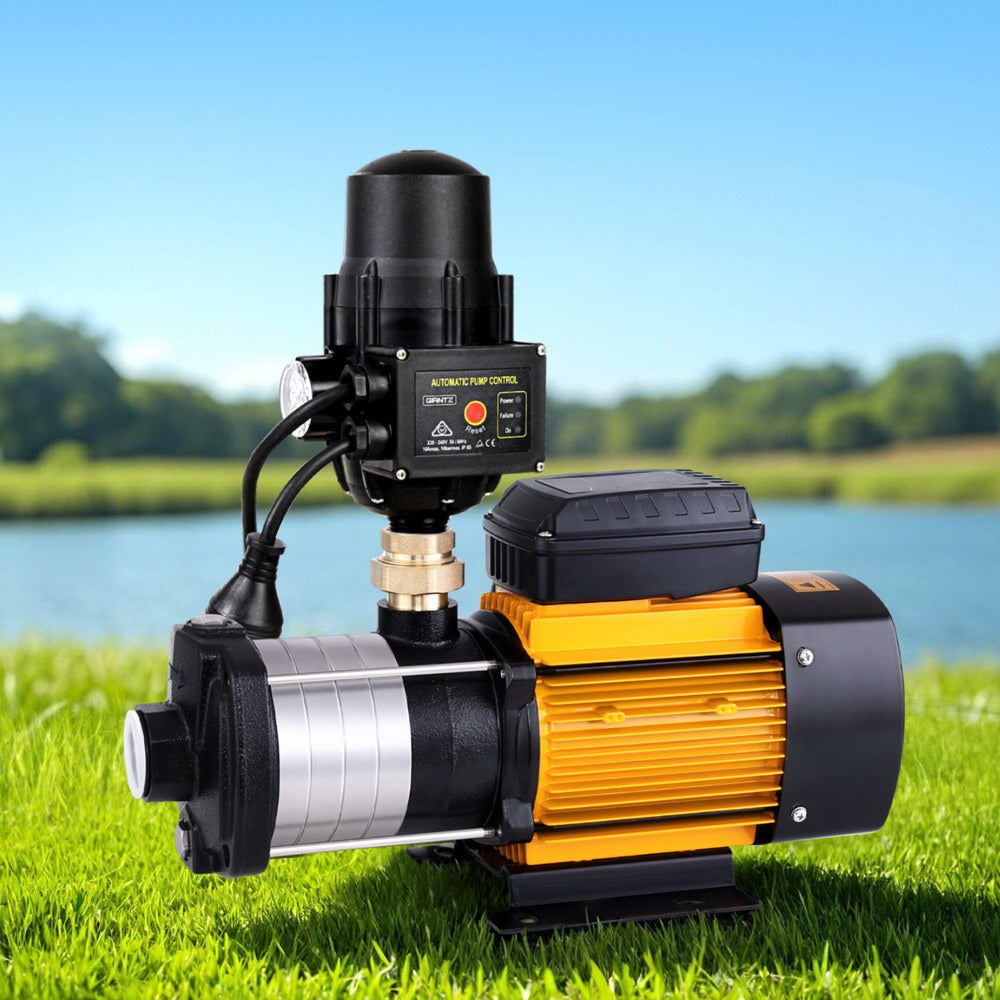

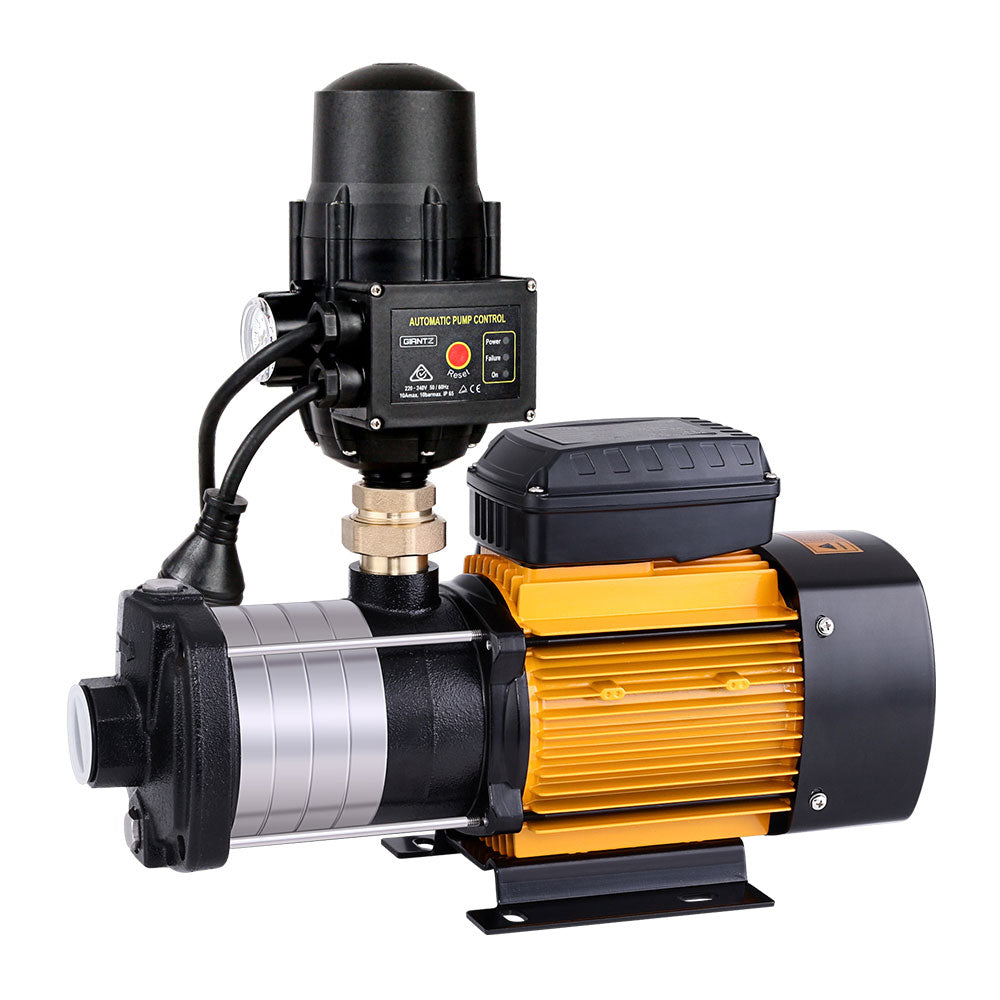

Giantz 2000W 5-Stage High Pressure Garden Water Pump with Automatic Controller – Black

Giantz 2000W 5-Stage High Pressure Garden Water Pump – Black

The Giantz 5-Stage Garden Water Pump is designed to provide dependable water pressure for domestic water supply, garden irrigation, farms and rainwater tank transfer. Its multi-stage pump design and automatic pressure controller help deliver water on demand when taps or connected outlets are opened.

With a maximum input power of 2000W, a maximum pumping head of 50m and a maximum flow rate of 6000L/hour, this pump is suited to a range of household and garden water applications.

Key Features

• 2000W maximum input power
• 1300W rated input power
• 5-stage self-priming multi-stage pump

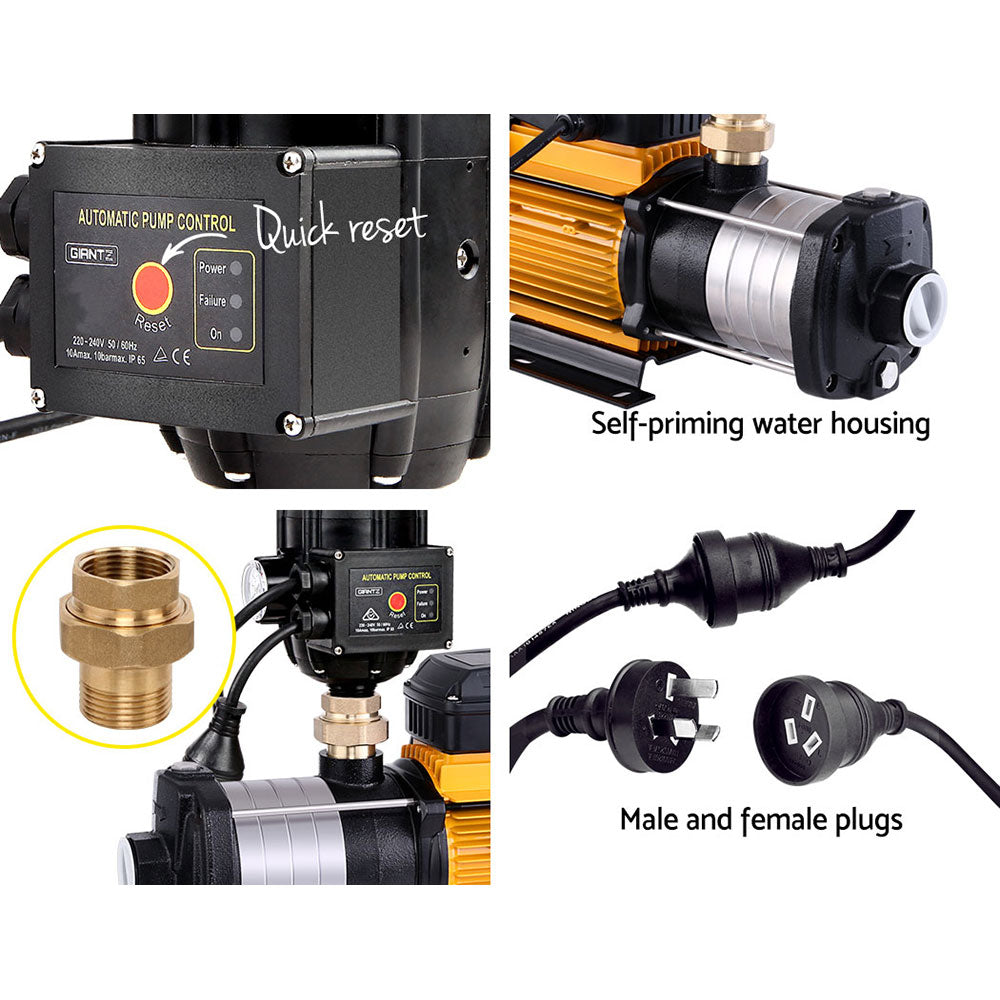

• Automatic on/off pressure controller
• Adjustable start-up pressure
• Stainless steel pump body, impeller and motor shaft
• Cast iron pump ends

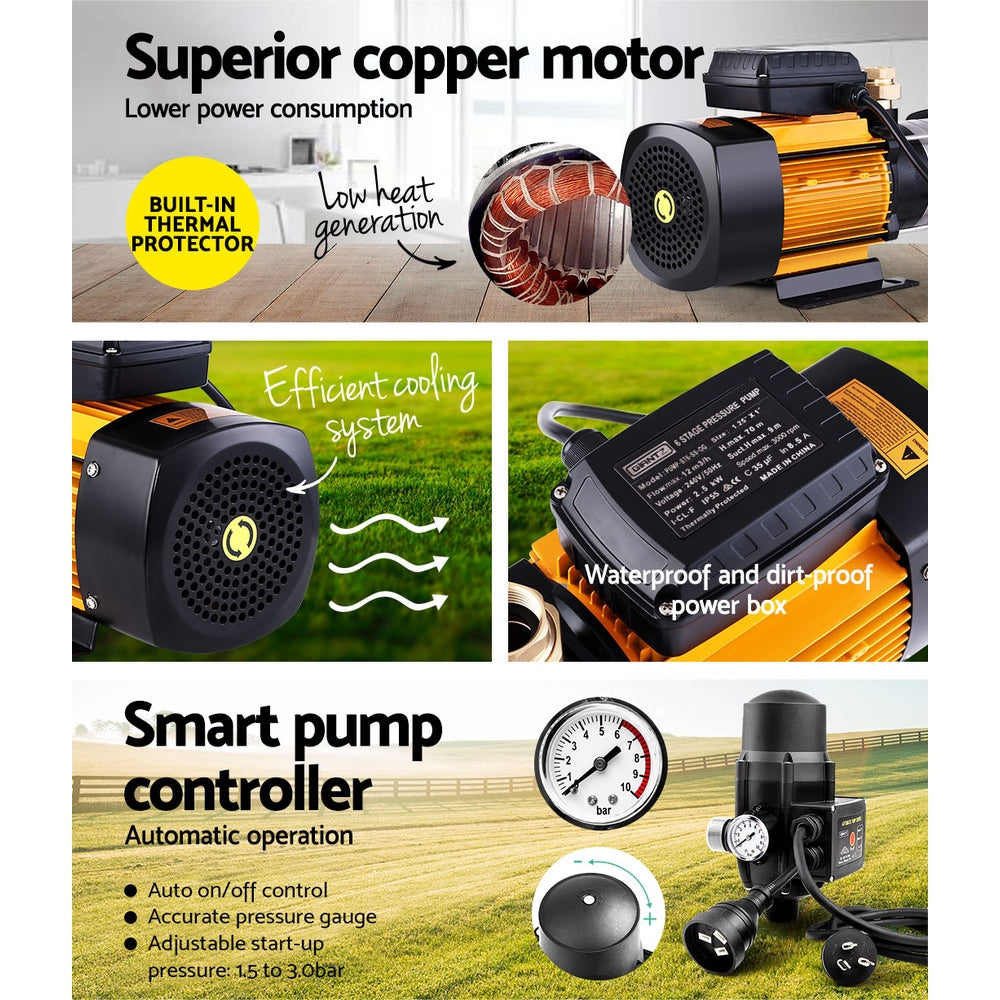

• Copper motor with efficient cooling system
• Built-in thermal protection
• Corrosion-resistant brass connectors
• Ceramic and carbon mechanical seals
• Designed for continuous-duty operation within the manufacturer's specified limits
• 1-year warranty

Technical Specifications

• Brand: Giantz
• Model / product code: PUMP-ST5-SS-OG-TPC
• Power rating: 1300W rated / 2000W maximum input
• Maximum flow rate: 6000L/hour (100L/min)
• Maximum head: 50m

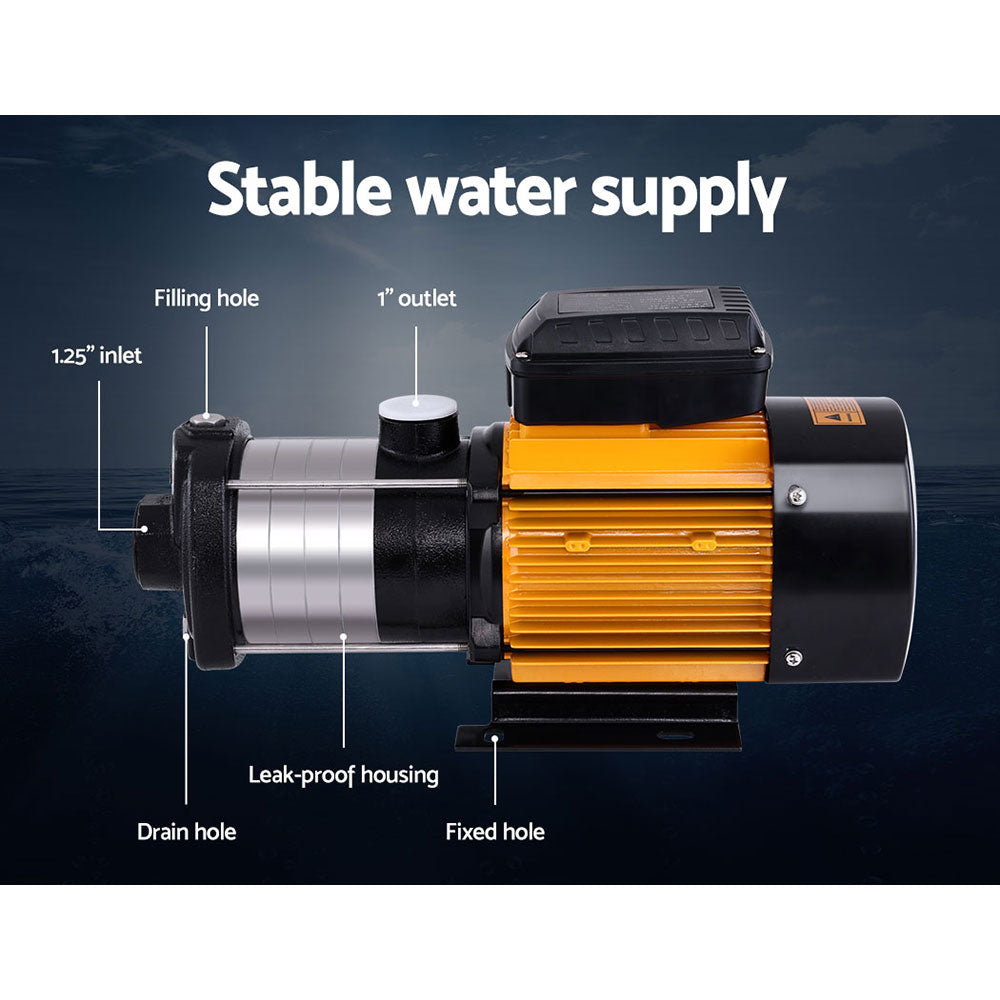

• Pump inlet: 1.25 inches (30mm)
• Pump outlet: 1 inch (25mm)
• Pump protection rating: IP54
• Insulation class: B (130°C)
• Maximum ambient temperature: 40°C
• Maximum liquid temperature: 60°C

Automatic Controller Specifications

• Voltage: 220–240V
• Frequency: 50/60Hz
• Maximum current: 10A
• Starting pressure: 1.5–3 bar
• Maximum operating pressure: 10 bar
• Protection rating: IP65
• Controller inlet/outlet: 1 inch (25mm)
• Controller dimensions: 22 × 15 × 15cm
• Controller weight: 1.5kg

Package Contents

• 1 × Giantz 5-stage water pump
• 1 × Automatic pump controller
• 1 × User manual

Suitable Applications

• Garden and farm irrigation
• Rainwater tank or well water transfer
• Domestic pipeline pressure boosting
• Small pond or fountain water circulation

Important Usage Information

This pump is not designed for heavy-duty industrial, commercial or hydraulic applications. Do not use it to power elevator systems or industrial machinery. Ensure the electrical supply and installation comply with the manufacturer's requirements.

The maximum flow rate and maximum head are separate performance ratings and should not be expected simultaneously. Actual performance depends on pipework, elevation and system resistance.
