Giantz 2000W 5-Stage High Pressure Garden Water Pump with Automatic Controller – Yellow

Giantz 2000W 5-Stage High Pressure Garden Water Pump – Yellow

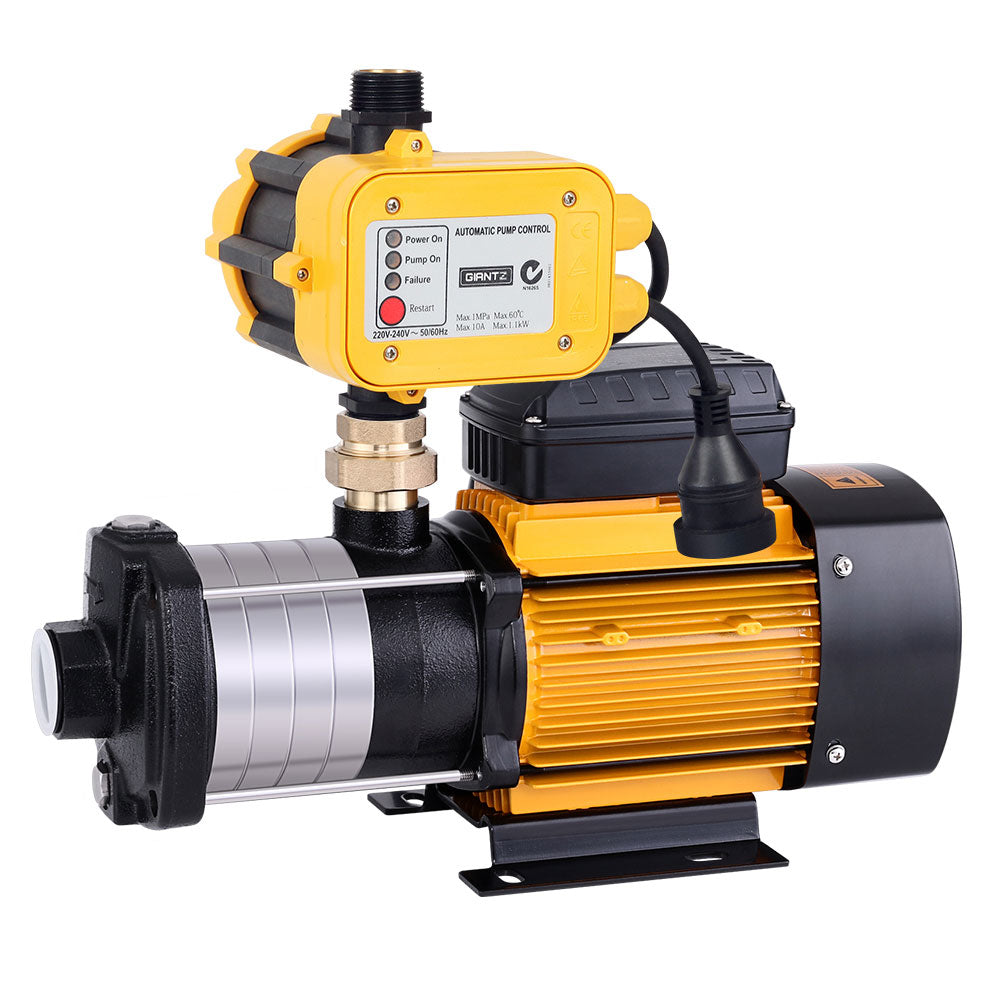

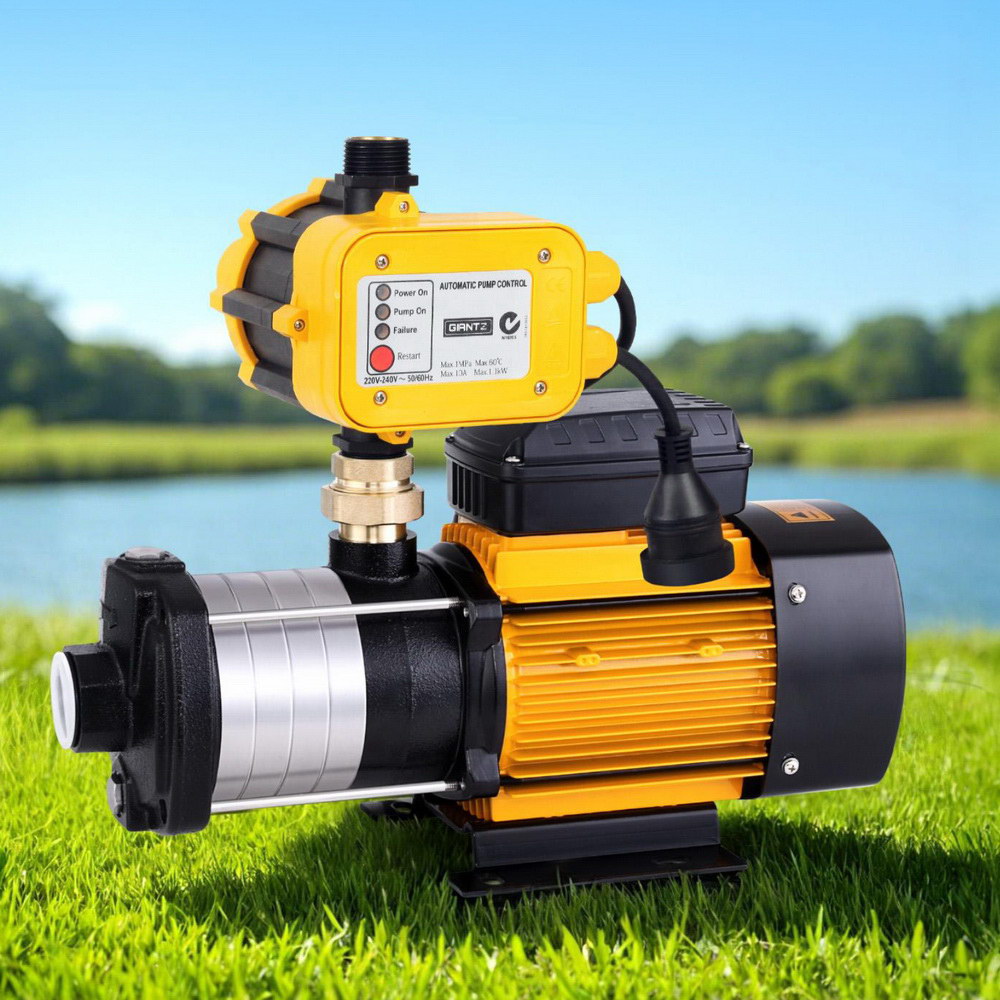

The Giantz 5-Stage High Pressure Water Pump is designed to provide reliable, on-demand water pressure for domestic water supply, garden irrigation, farms and rainwater tank transfer. Its automatic pressure controller starts and stops the pump as water is needed.

With a maximum input power of 2000W, a 5-stage pump design and a maximum head of 50m, this pump is a practical solution for suitable home and garden water systems.

Key Features

• 2000W maximum input power
• 1300W rated input power
• 5-stage self-priming multi-stage pump
• Maximum flow rate of 6000L/hour (100L/min)
• Maximum pumping head of 50m

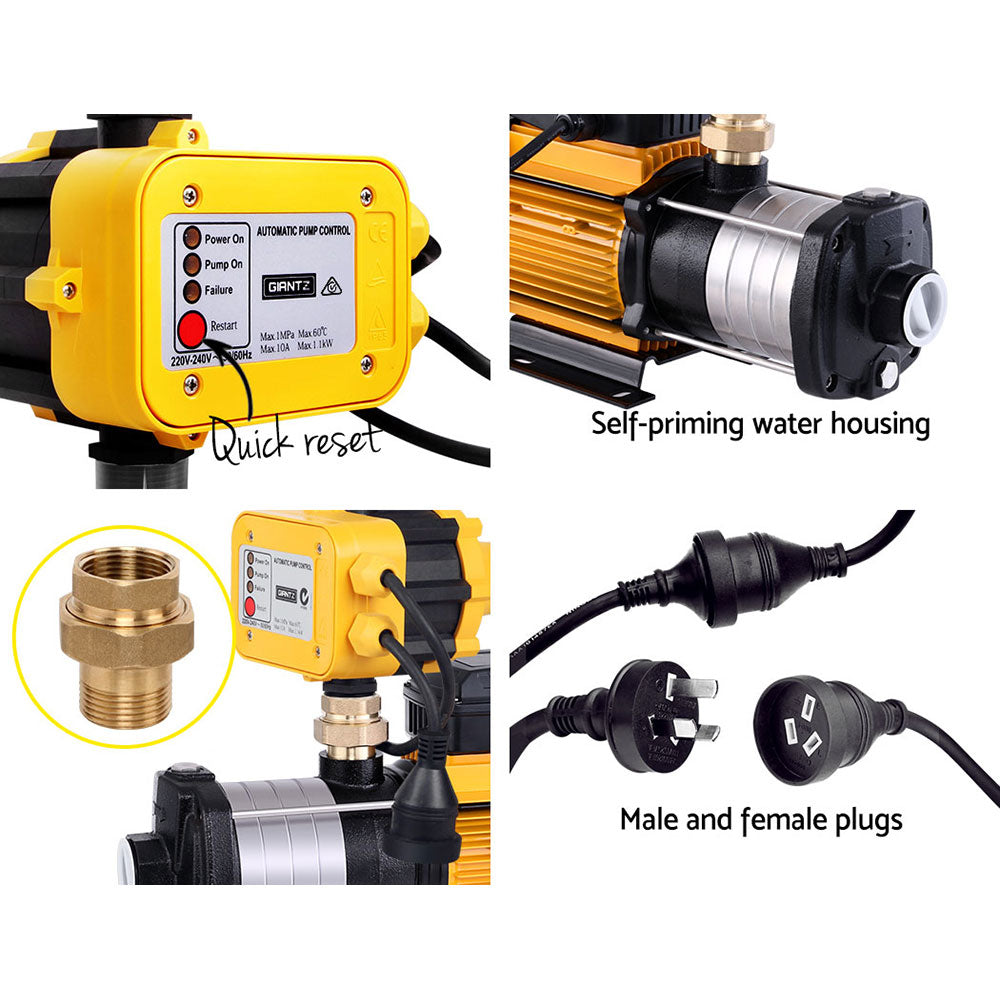

• Automatic pressure controller with adjustable start-up pressure

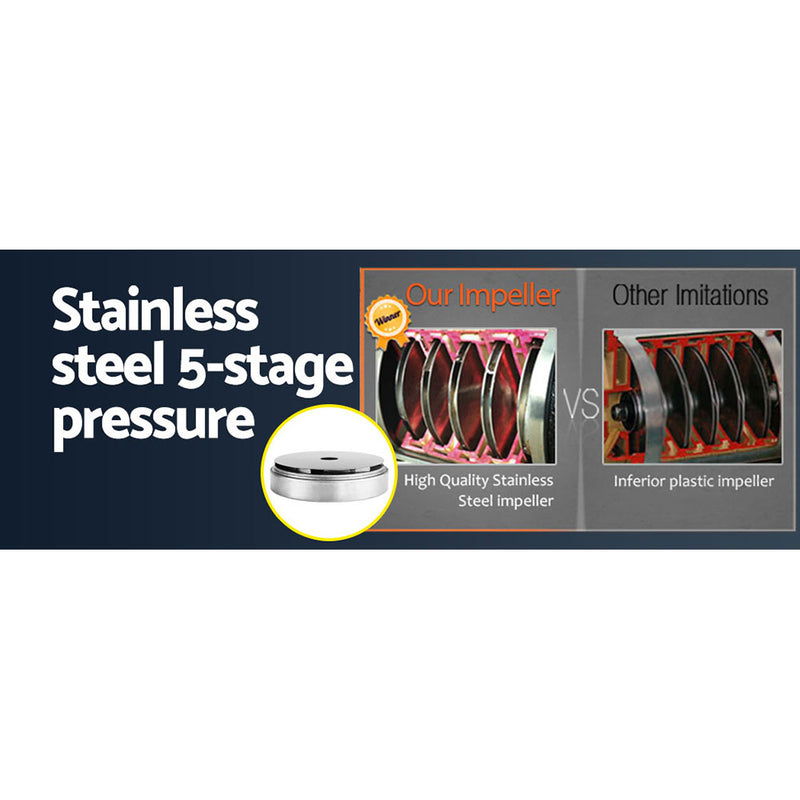

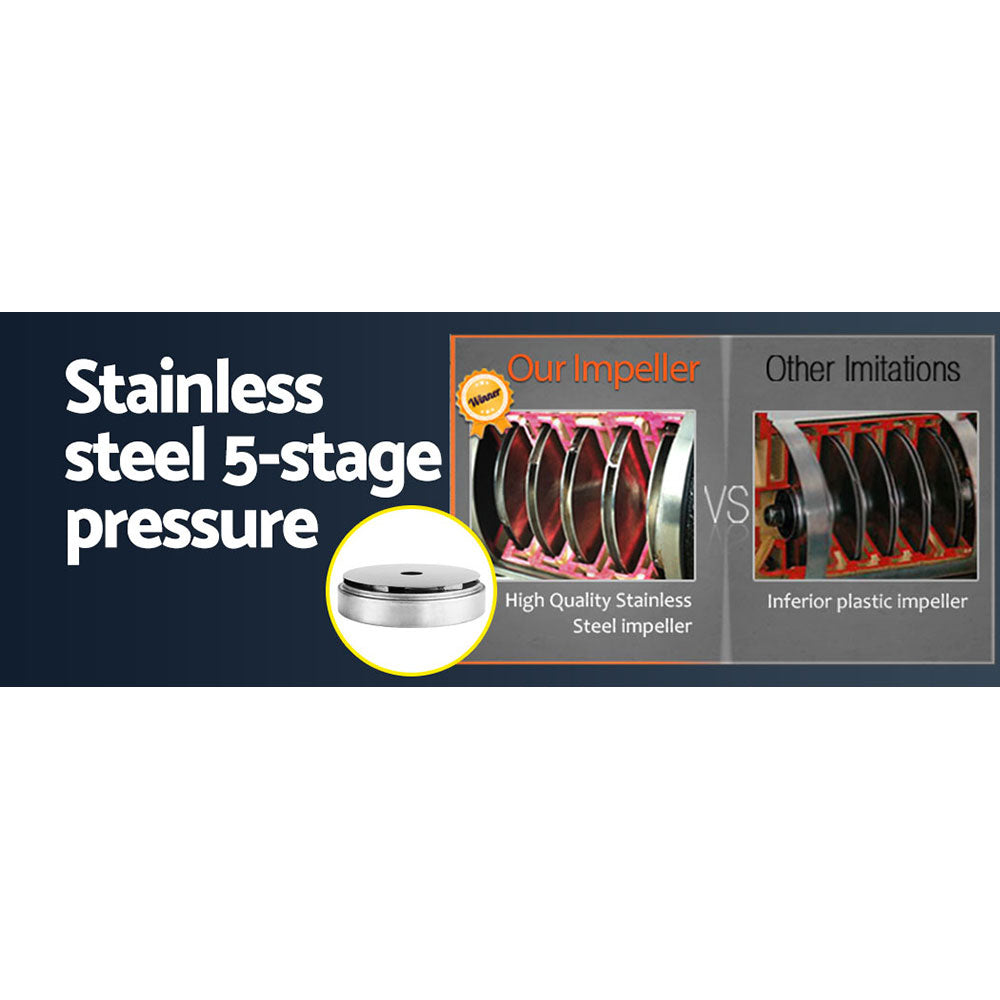

• Stainless steel pump body, impeller and motor shaft
• Cast iron pump ends

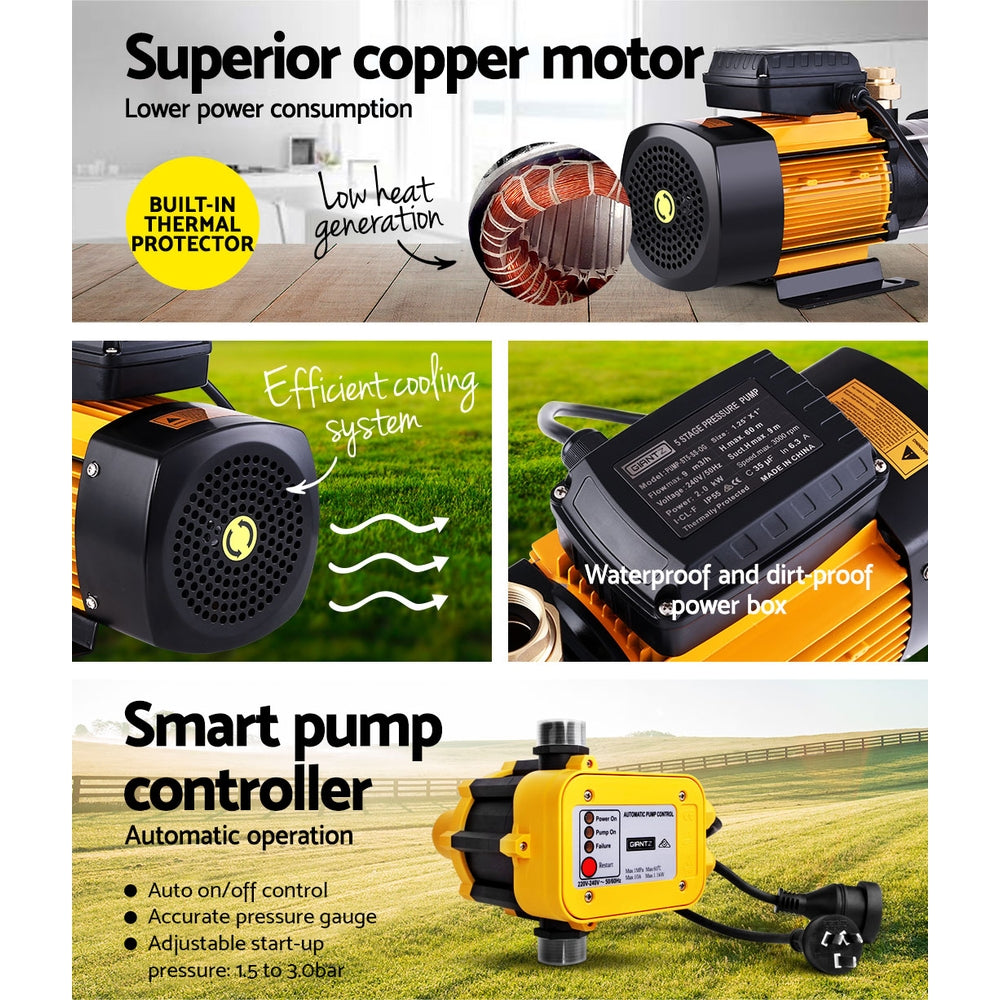

• Copper motor with efficient cooling system
• Built-in thermal protection
• Corrosion-resistant brass connector
• Ceramic and carbon seals
• Designed for continuous operation within specified limits
• 1-year warranty

Technical Specifications

• Brand: Giantz
• Model / product code: PUMP-ST5-SS-OG-YEL
• Colour: Yellow
• Maximum input power: 2000W
• Rated input power: 1300W
• Maximum flow rate: 6000L/hour (100L/min)
• Maximum head: 50m

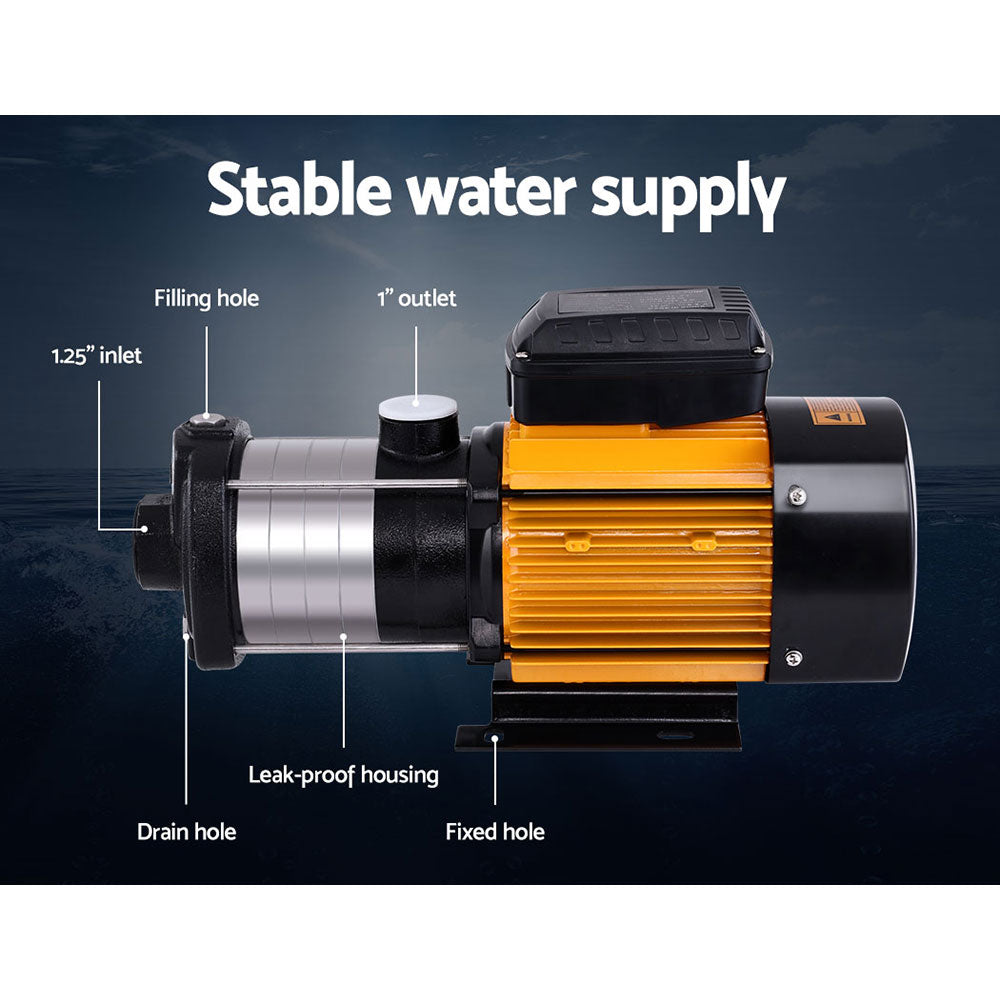

• Inlet diameter: 30mm (1.25 inches)
• Outlet diameter: 25mm (1 inch)
• Motor protection rating: IP54
• Insulation class: B (130°C)
• Maximum ambient temperature: 40°C
• Maximum liquid temperature: 60°C
• Power cord: SAA 250V / 10A, 0.3m

Automatic Controller Specifications

• Voltage: 220–240V
• Frequency: 50/60Hz
• Maximum current: 10A
• Maximum operating pressure: 10 bar
• Maximum water temperature: 60°C
• Protection rating: IP65
• Inlet and outlet: 25mm (1 inch)
• Dimensions: 22 × 12.4 × 17cm

Package Contents

• 1 × Giantz 5-stage water pump
• 1 × Automatic pump controller
• 1 × User manual

Suitable Applications

• Home and garden water supply
• Garden and farm irrigation
• Rainwater tank or well water transfer
• Domestic pipeline pressure boosting
• Water circulation for suitable ponds and small fountains

Important Usage Information

This pump is not designed for heavy-duty industrial, commercial or hydraulic applications, elevators or industrial machinery. Ensure the electrical supply and plumbing installation meet the manufacturer's requirements.

The maximum flow rate and maximum head are separate performance ratings and should not be expected simultaneously. Actual performance depends on pipework, elevation and system resistance.
