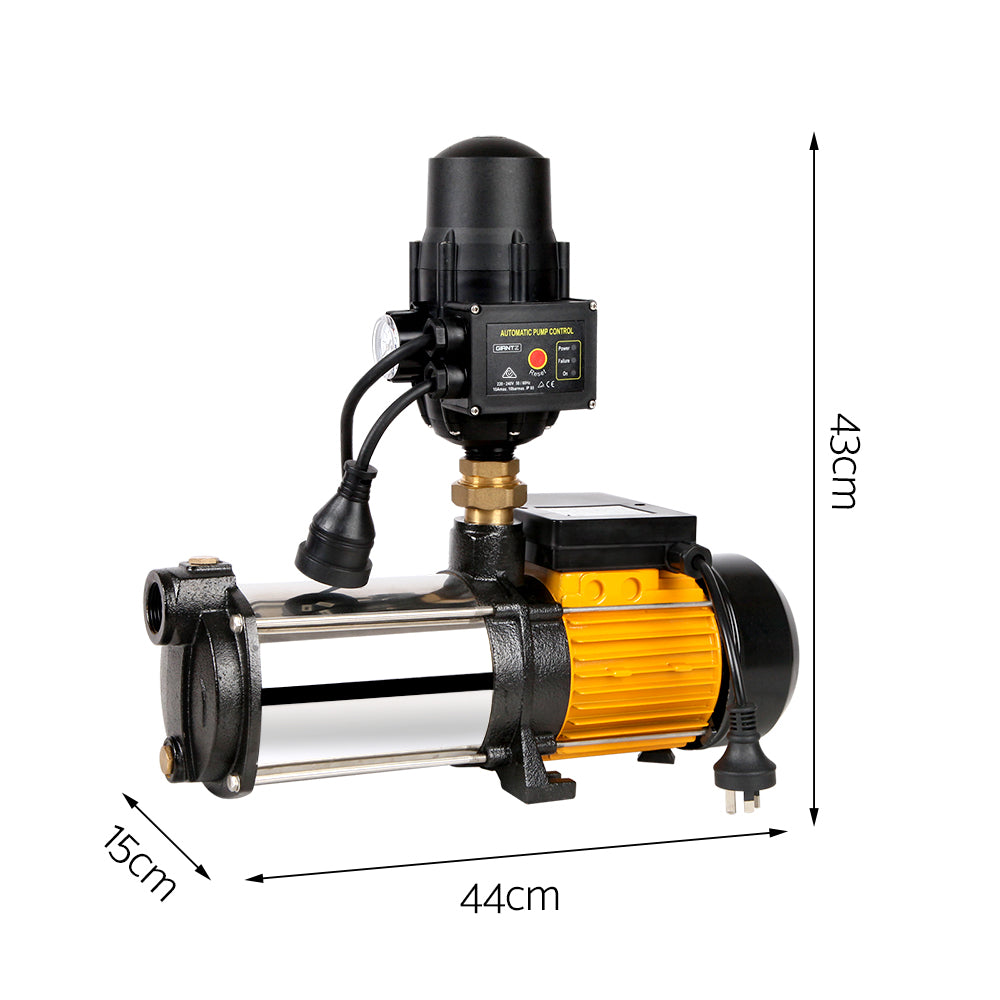

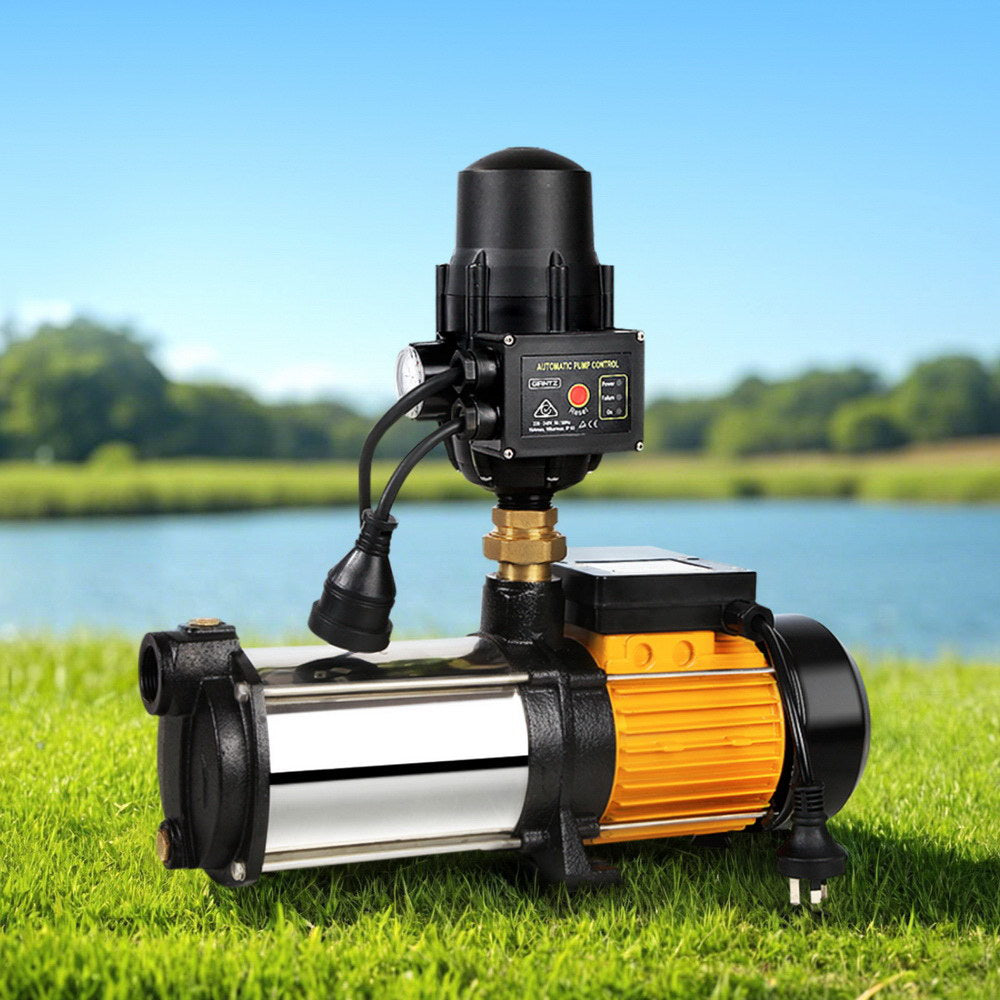

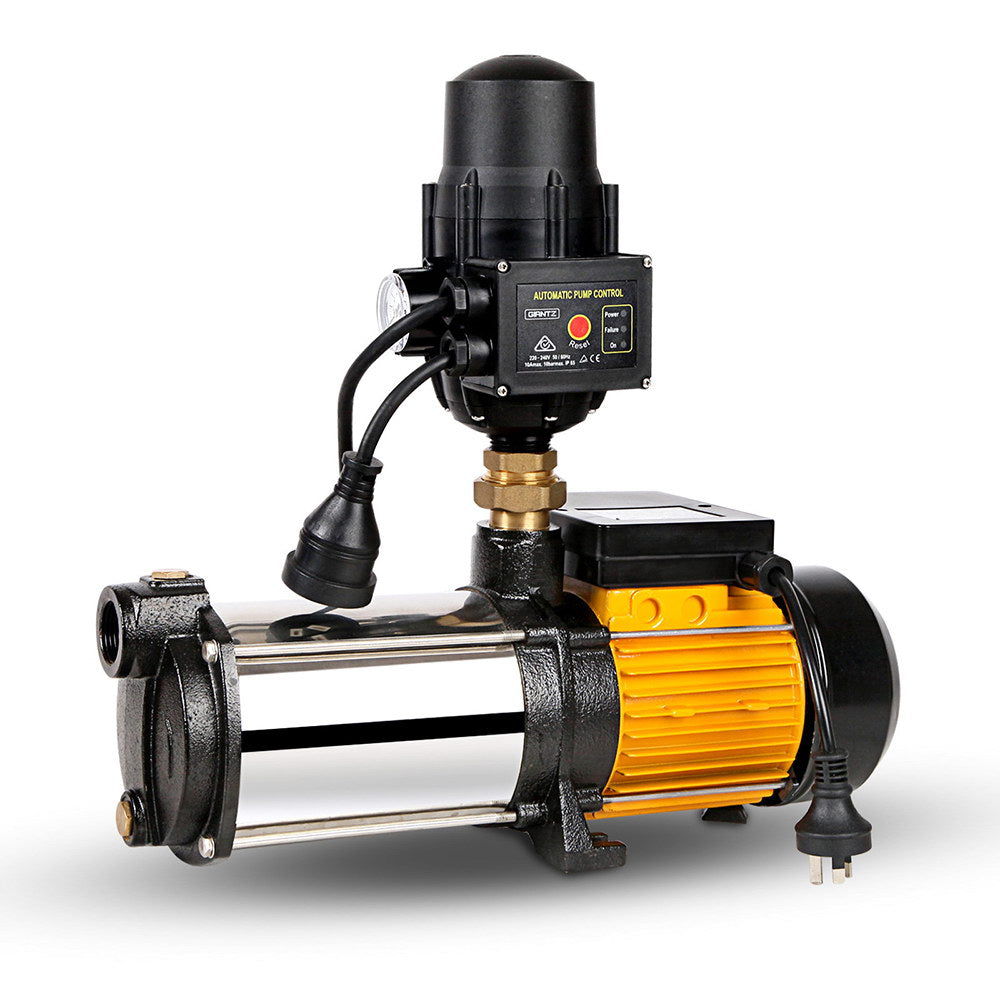

Giantz 2500W 5-Stage High Pressure Water Pump with Automatic Controller – Black

Giantz 2500W 5-Stage High Pressure Water Pump with Automatic Controller – Black

Maintain reliable water pressure for household water supply, garden irrigation and rainwater transfer with the Giantz 5-Stage High Pressure Water Pump. Featuring a stainless steel pump body, copper-wound motor and automatic pressure controller, this multi-stage pump is designed for domestic water applications.

Powerful Five-Stage Pumping

With a maximum input power of 2500W, a rated input power of 1300W and a listed maximum pumping head of 64 metres, this pump is designed for applications that need increased water pressure. The maximum listed flow rate is 9000 litres per hour. Actual performance varies with pipework, water supply and operating conditions.

Automatic Pressure Control

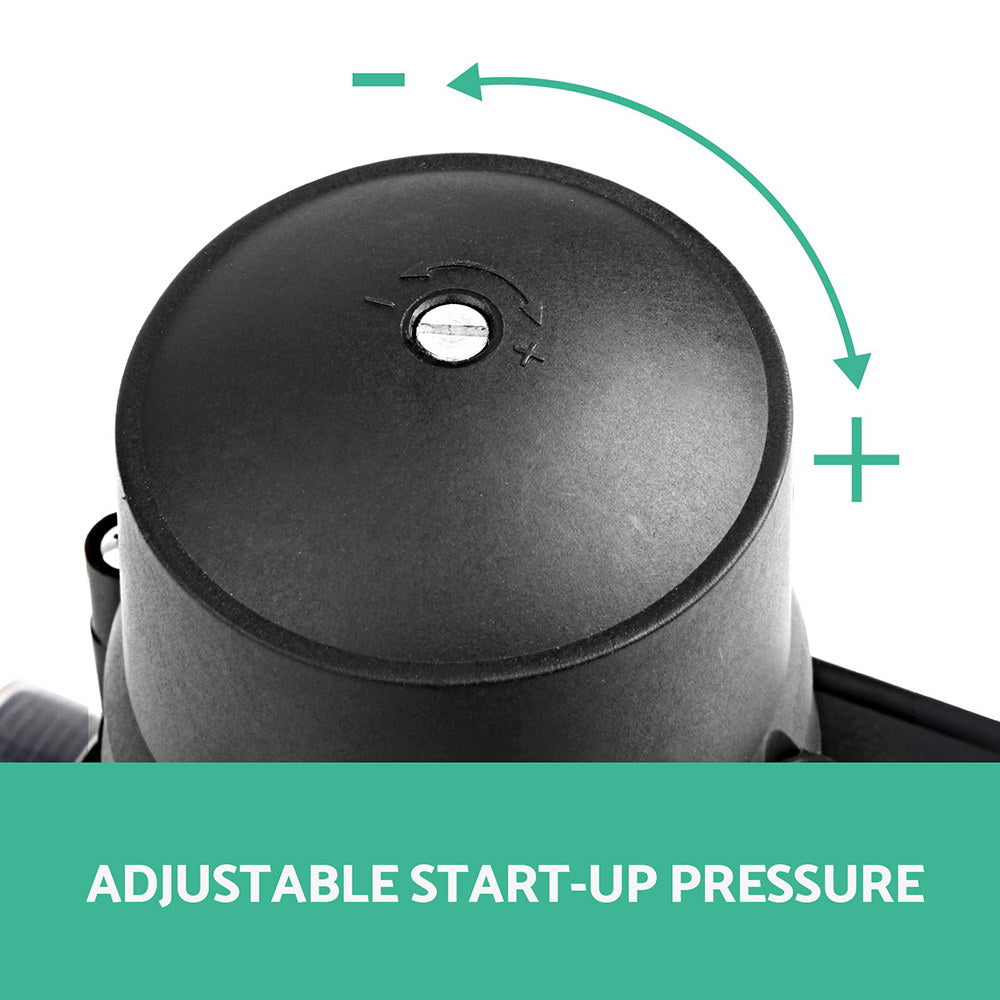

The included pressure controller automatically switches the pump on and off in response to water demand. Its adjustable starting pressure helps tailor operation to a suitable domestic water system.

Key Features

• Five-stage multi-stage water pump
• 2500W maximum input power
• 1300W rated input power
• Automatic on/off pressure controller included
• Adjustable starting pressure: 1.5–3 bar
• Stainless steel pump body with cast iron ends

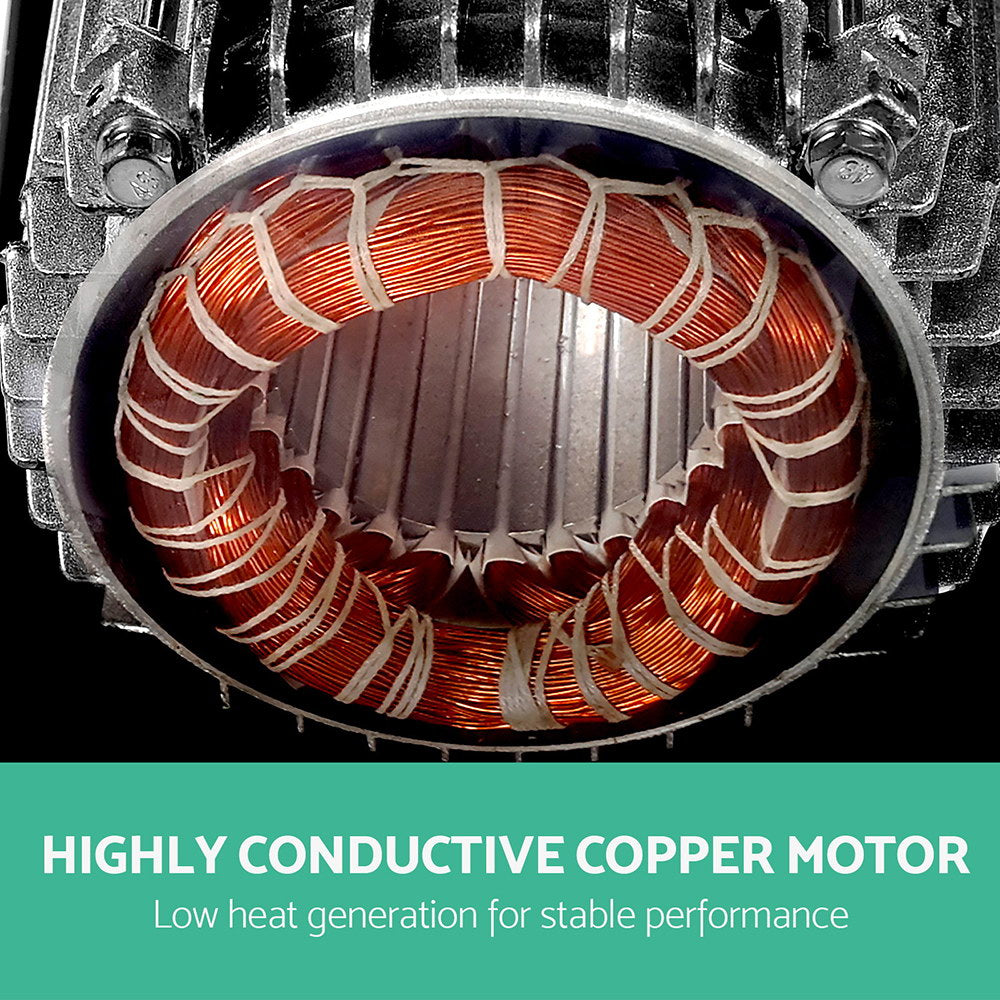

• Copper-wire motor

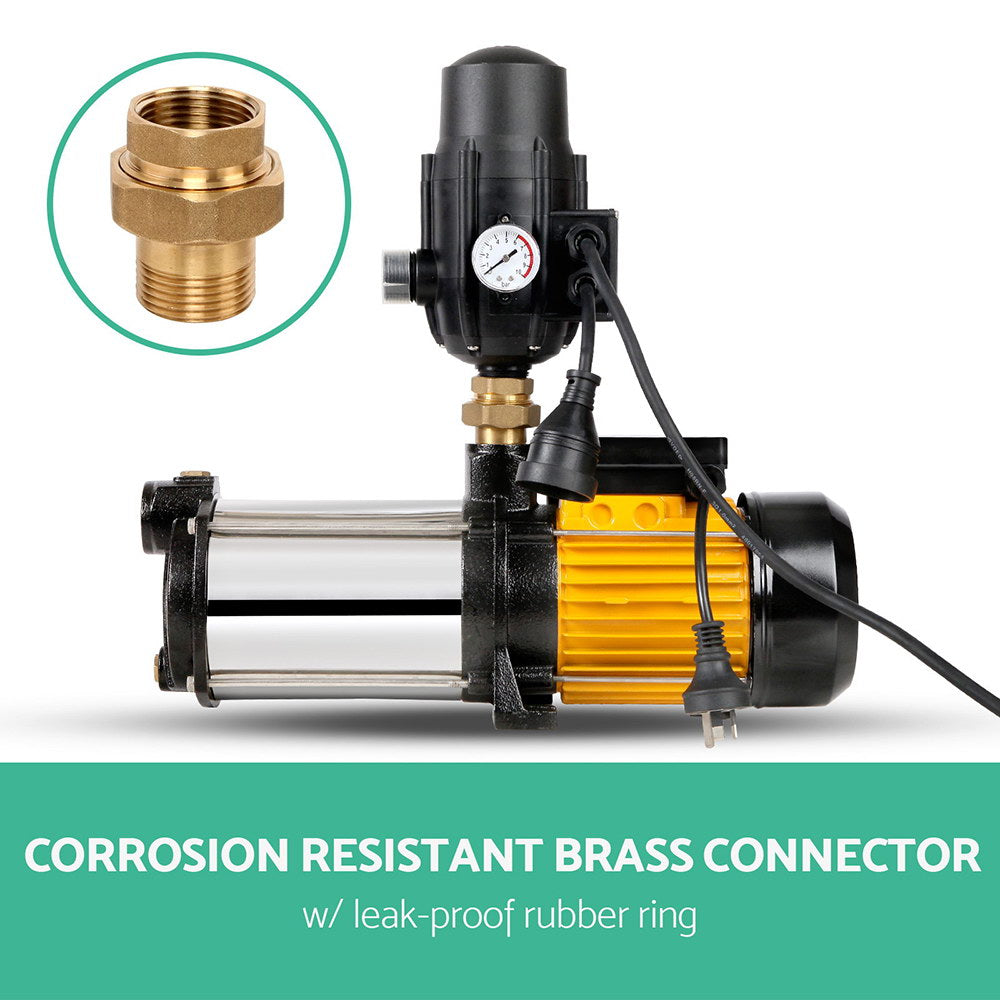

• Corrosion-resistant brass connectors
• Ceramic/carbon mechanical seal
• Built-in thermal protection

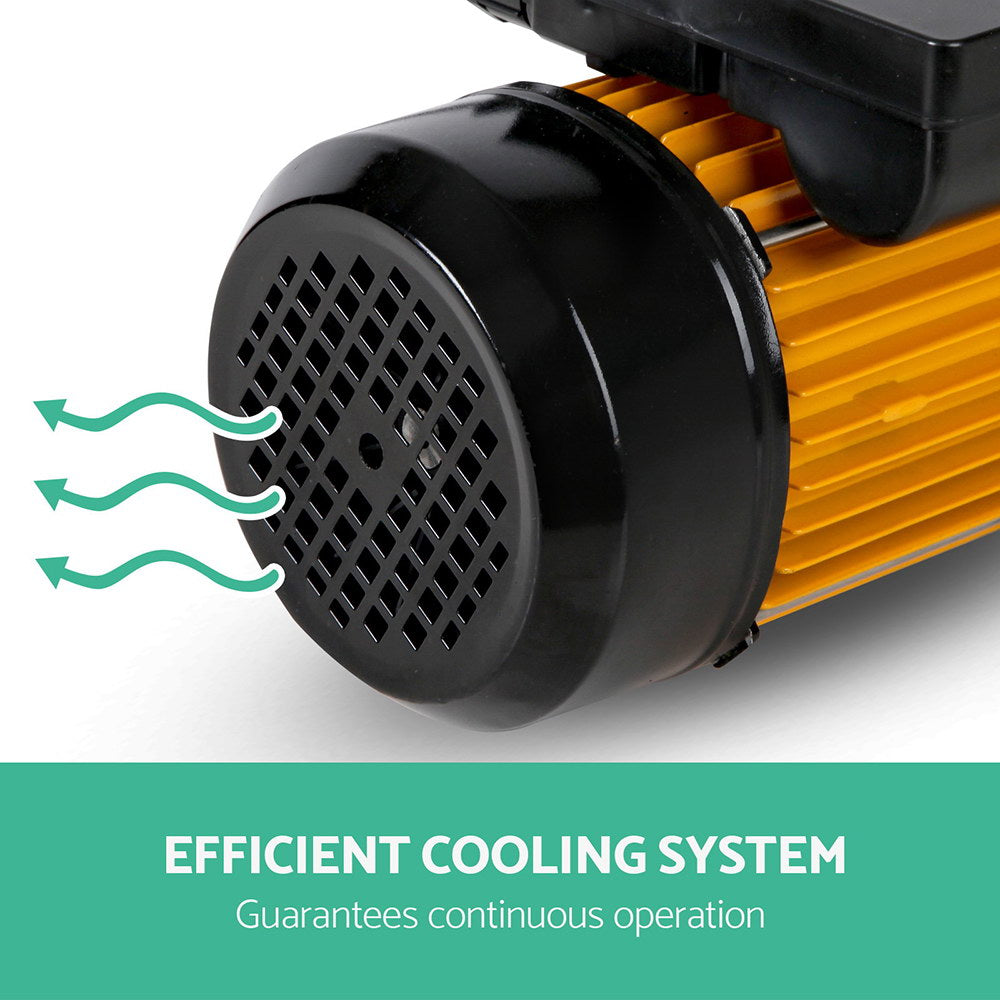

• Efficient motor cooling system
• Designed for household water boosting, garden irrigation and tank transfer
• 1-year warranty, as listed by the seller

Technical Specifications

• Brand: Giantz
• Product code shown on listing: PUMP-ST5-25-OG-TPC
• Colour: Black
• Maximum input power: 2500W
• Rated input power: 1300W
• Supply voltage: 240V
• Frequency: 50/60Hz
• Maximum flow rate: 150L/min (9000L/h)
• Maximum pumping head: 64m
• Number of stages: 5
• Inlet and outlet size: 1 inch (25mm)
• Pump protection rating: IP44
• Plug and cord: SAA 250V/10A, 0.6m
• Pump weight: 15.5kg
• Controller weight: 1.5kg

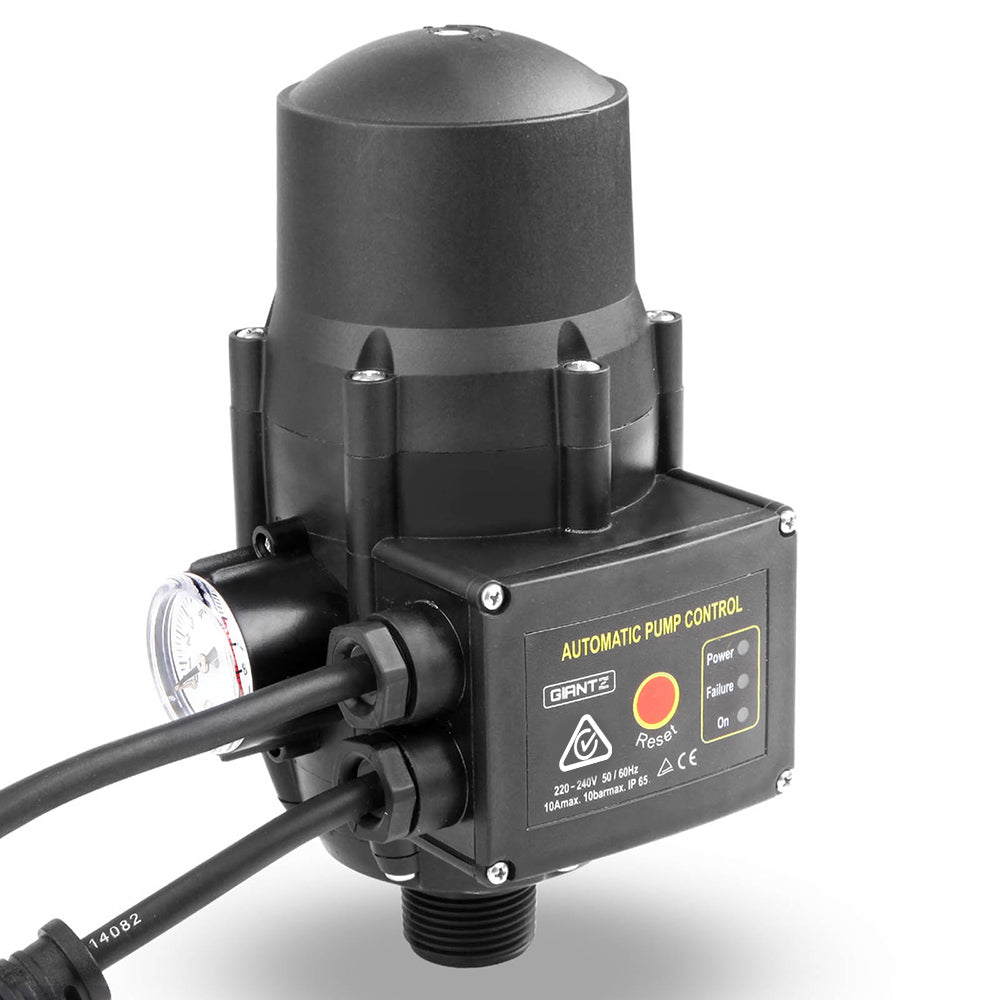

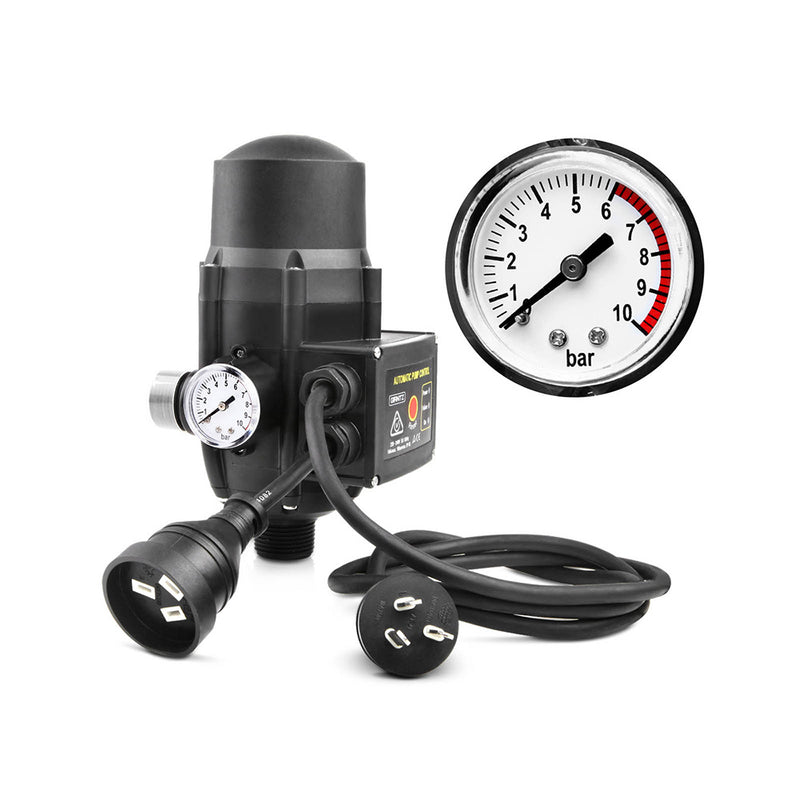

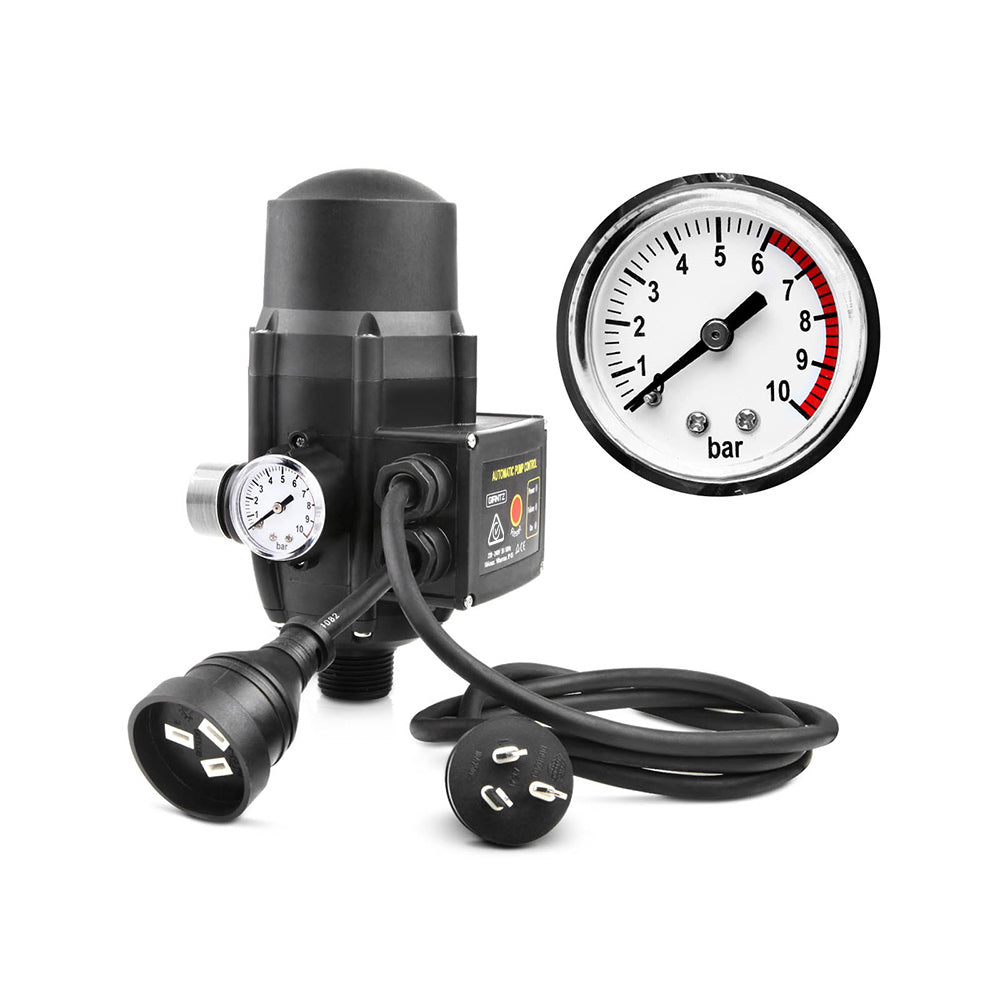

Automatic Controller Specifications

• Voltage: 240V
• Frequency: 50/60Hz
• Maximum current: 10A
• Starting pressure: 1.5–3 bar
• Maximum working pressure: 10 bar
• Maximum water temperature: 60°C
• Protection rating: IP65
• Connections: 1 inch (25mm)
• Controller dimensions: 22 x 15 x 15cm

Package Contents

• 1 x Giantz 5-stage water pump
• 1 x Automatic pump controller

Installation and Safety

Install the pump according to the manufacturer's instructions and confirm that the electrical supply, plumbing and pressure ratings are suitable. Use appropriate electrical protection and a qualified professional for electrical installation where required. Do not operate the pump dry.

Important: This pump is intended for domestic water transfer and irrigation. The seller specifically excludes industrial machinery, elevator systems and other heavy-duty hydraulic applications.

Choose the Giantz 2500W 5-stage pump for domestic water boosting, garden irrigation and rainwater tank transfer.
