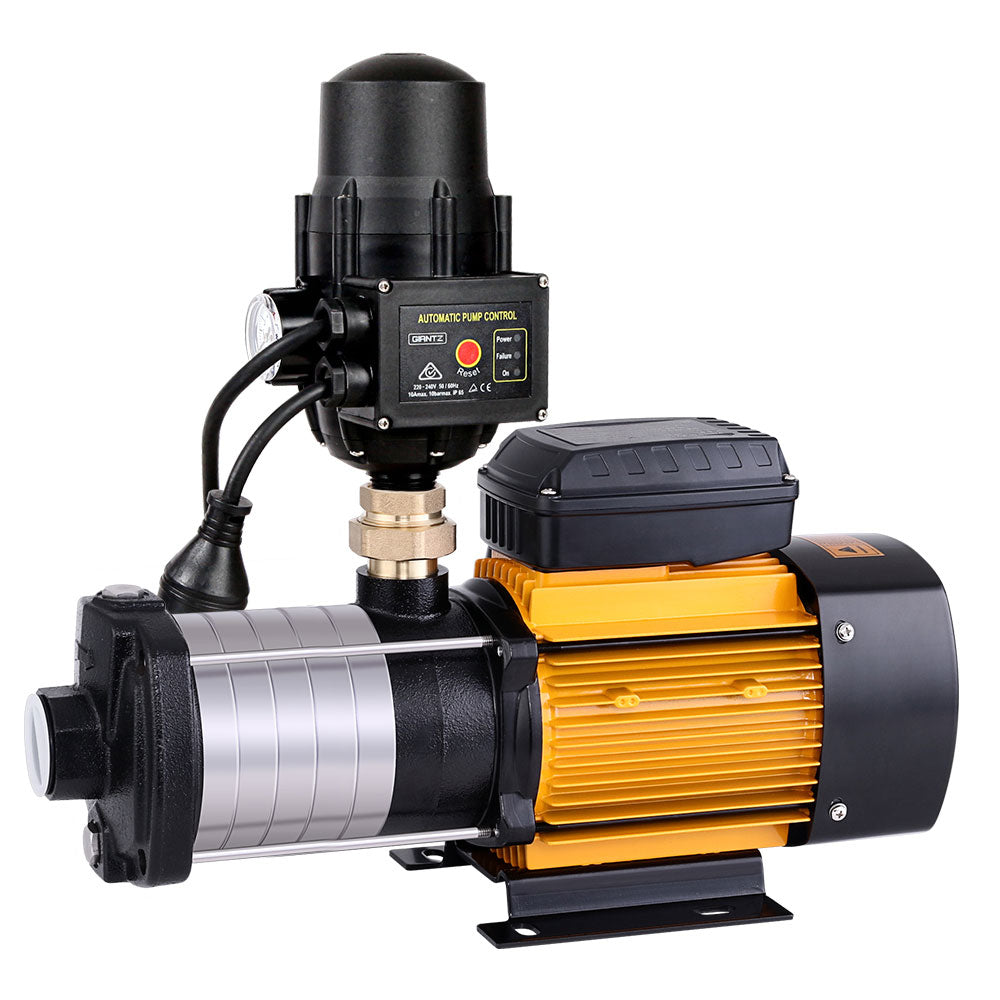

Giantz 2500W 6-Stage Garden Water Pump with Automatic Controller – Black

Giantz 6-Stage Garden Water Pump with Automatic Pressure Controller – Black

Improve your household water supply and garden irrigation with the Giantz 6-Stage Water Pump. Designed for domestic water pressure boosting, rainwater tank transfer and garden watering, this multi-stage pump combines a stainless steel pump body with an automatic pressure controller for convenient on-demand water delivery.

Key Features

• Six-Stage Pump Design: Designed for high-pressure water delivery in suitable domestic applications.
• 1300W Rated Input Power: Maximum input power of 2500W.
• High Water Flow: Maximum rated flow rate of 12,000 litres per hour (200L/min).

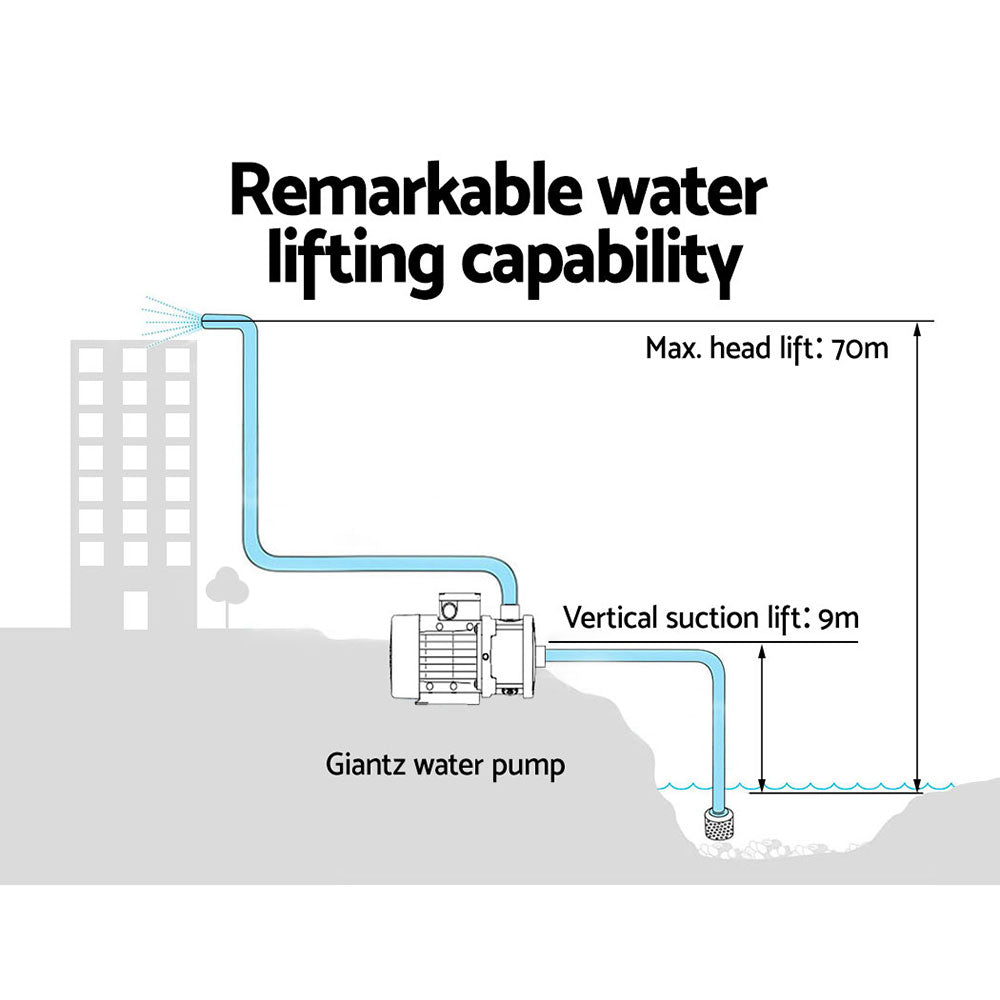

• High Delivery Head: Maximum rated head of 70 metres.

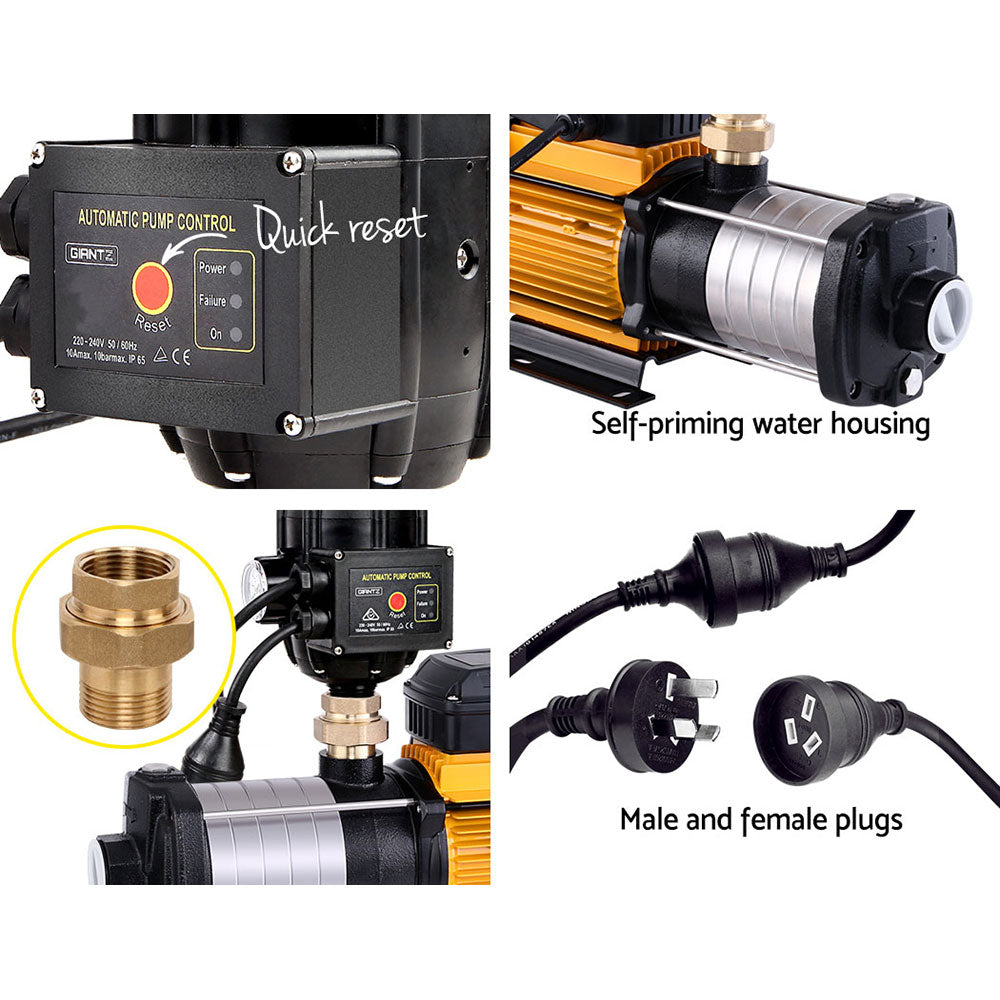

• Automatic Pressure Controller: Controls pump operation automatically according to water demand.

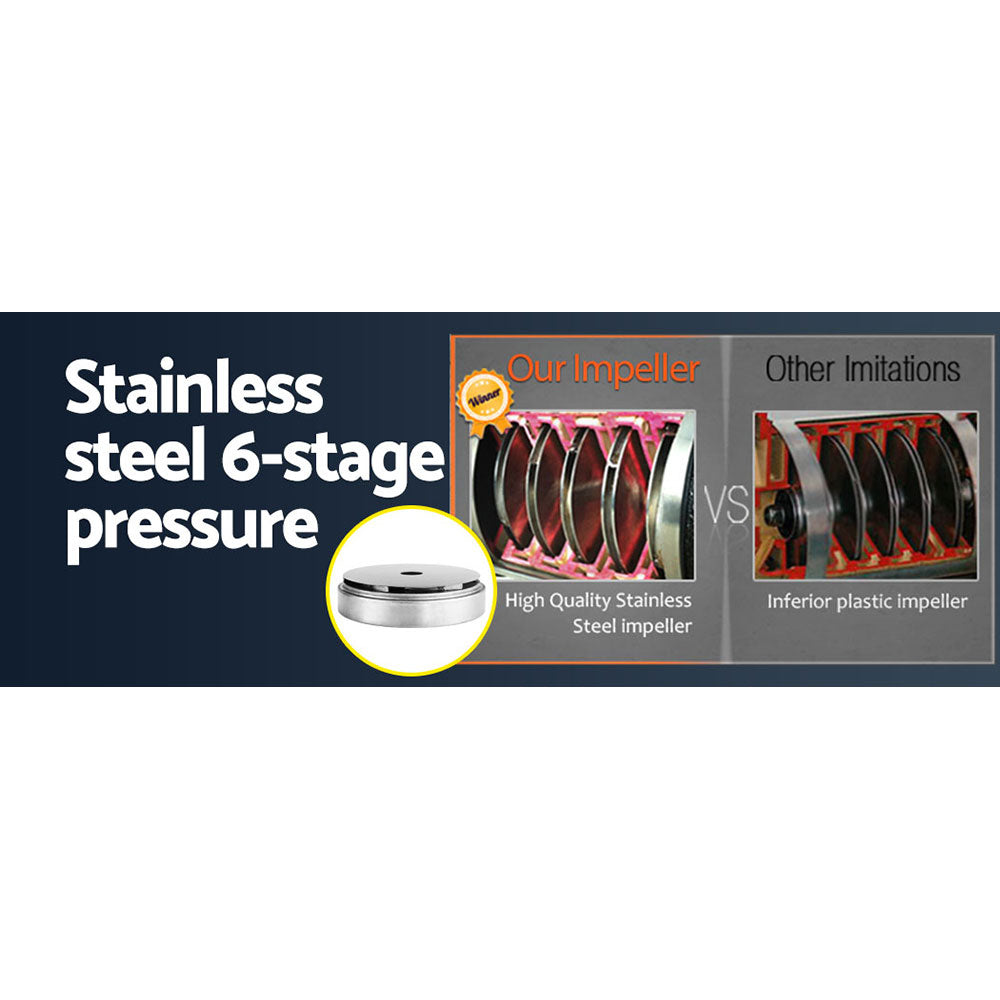

• Stainless Steel Construction: Stainless steel pump body, impeller and motor shaft.
• Corrosion-Resistant Connector: Includes a brass connector.

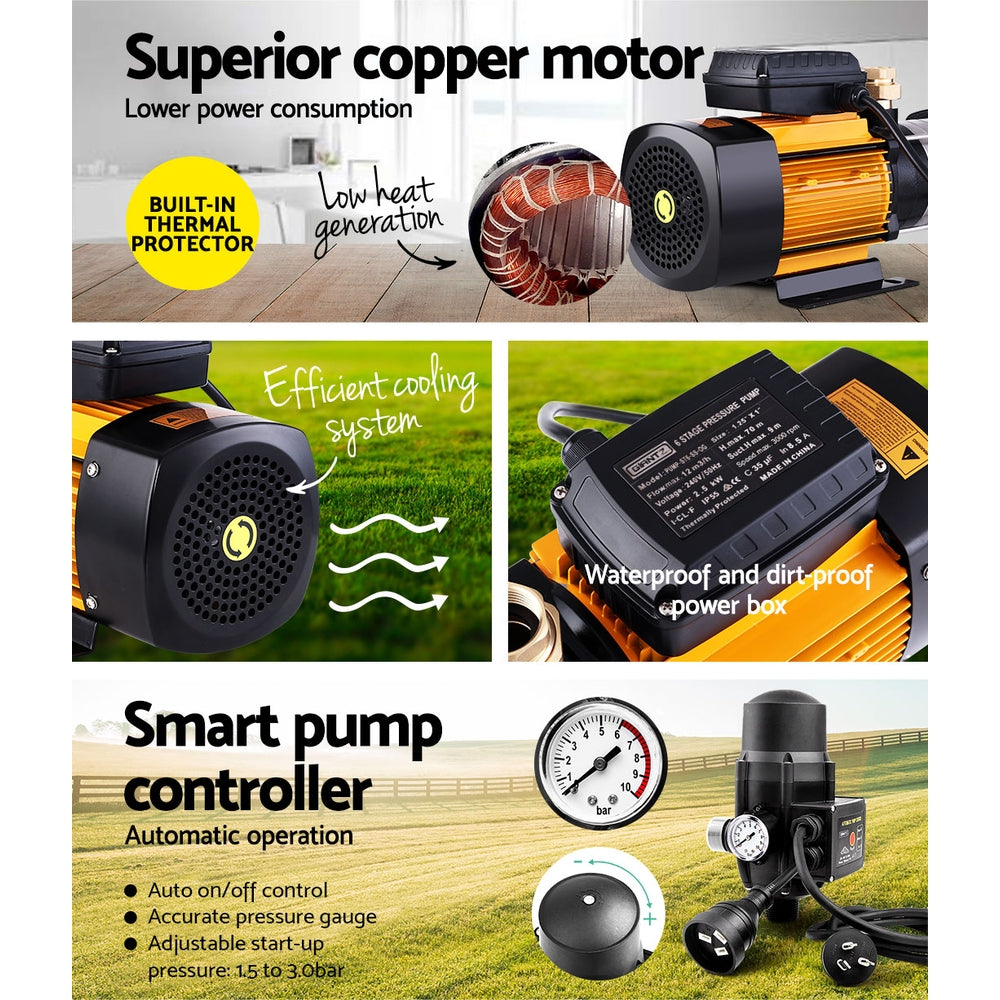

• Thermal Protection: Built-in protection helps reduce the risk of motor overheating.
• Efficient Cooling: Cooling system supports dependable operation within the specified limits.
• Continuous-Duty Design: Listed for continuous operation within the manufacturer's operating conditions.

Suitable Applications

• Domestic water pressure boosting
• Garden and farm irrigation within rated capacity
• Transferring water from compatible rainwater tanks or wells
• Household garden watering
• Circulating water in suitable ponds and small fountains

Technical Specifications

• Brand: Giantz
• Model/Code: PUMP-ST6-SS-OG-TPC
• Pump Type: Six-stage water pressure pump
• Colour: Black
• Rated Input Power: 1300W
• Maximum Input Power: 2500W
• Plug and Cord: SAA 250V/10A, 0.3m
• Maximum Flow Rate: 12,000L/hour (200L/min)
• Maximum Head: 70m
• Duty Cycle: Continuous, within specified operating conditions
• Impeller: Stainless steel
• Pump Body: Stainless steel
• Motor Shaft: Stainless steel
• Inlet Diameter: 1.25 inch (approximately 30mm)
• Outlet Diameter: 1 inch (25mm)
• Brass Connector: 1 inch
• Protection Rating: IP44
• Insulation Class: B (130°C)
• Maximum Ambient Temperature: 40°C
• Maximum Liquid Temperature: 60°C

Automatic Controller Specifications

• Voltage: 220–240V
• Frequency: 50/60Hz
• Maximum Current: 10A
• Starting Pressure: 1.5–3 bar
• Maximum Working Pressure: 10 bar
• Protection Rating: IP65
• Inlet/Outlet Size: 1 inch (25mm)
• Dimensions: 22 × 15 × 15cm
• Controller Weight: 1.5kg

Package Includes

• 1 × Giantz 6-Stage Water Pump
• 1 × Automatic Pump Controller
• 1 × User Manual

Important Safety Information

This pump is intended for suitable domestic water supply, garden irrigation and water-transfer applications. It is not designed for heavy-duty industrial, hydraulic or elevator systems. Ensure the electrical supply matches the pump requirements and follow the manufacturer's installation and safety instructions.

The maximum flow rate and maximum delivery head are rated limits and may not be achieved simultaneously. Actual performance depends on installation, pipework and operating conditions.

Warranty: 1 year.
