Giantz 2500W 6-Stage Garden Water Pump with Automatic Controller – Yellow

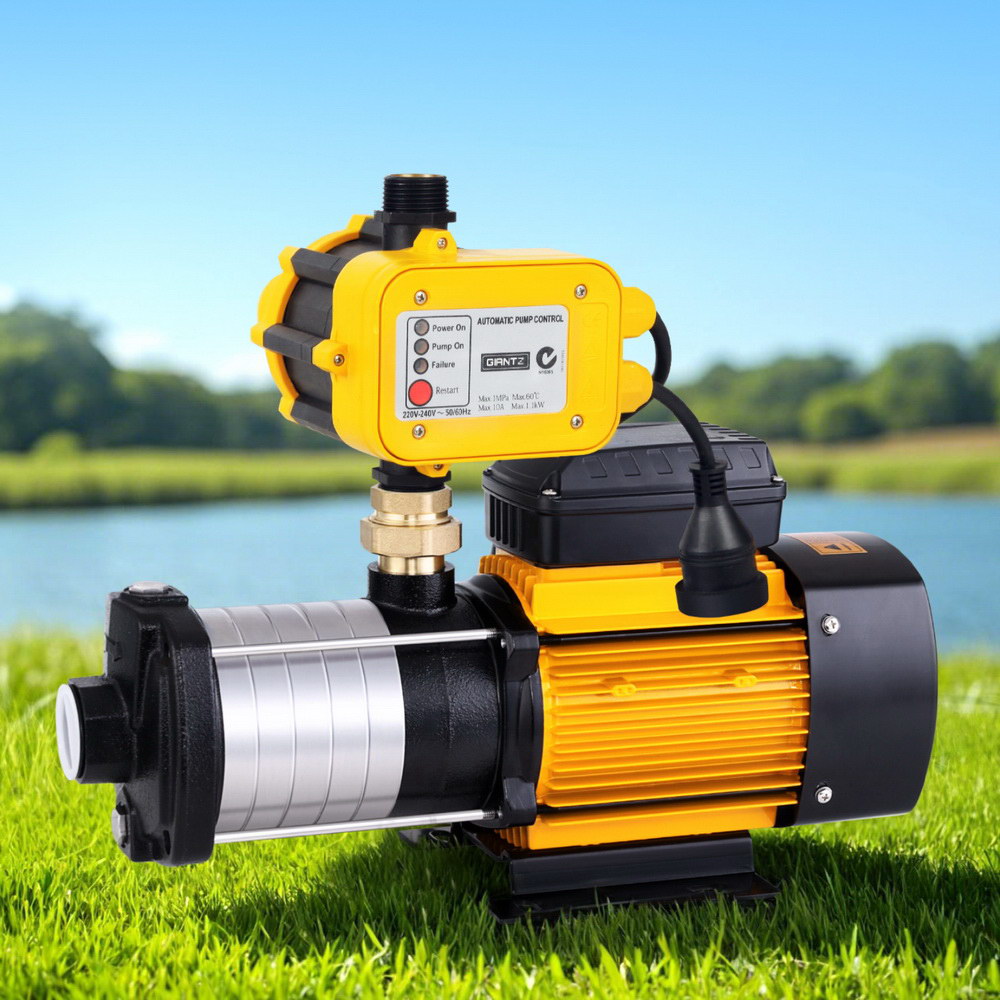

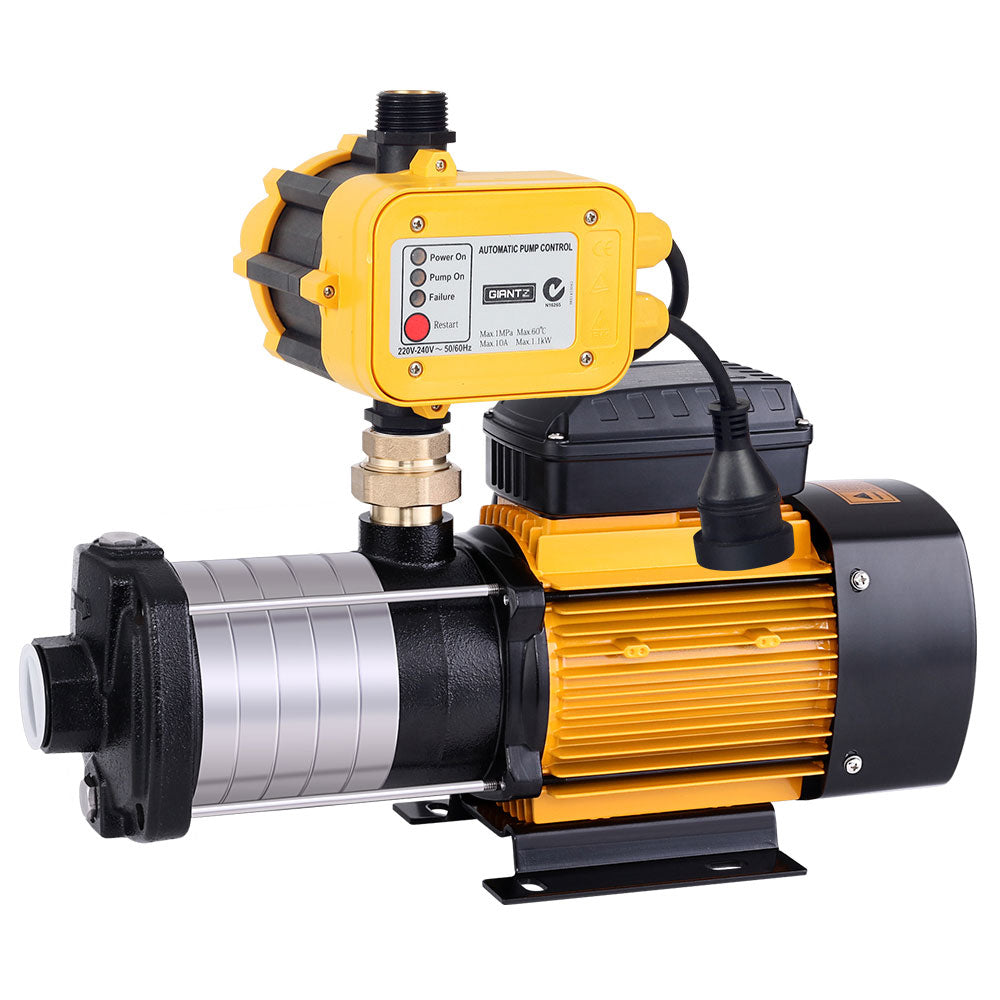

Giantz 6-Stage Garden Water Pump with Automatic Pressure Controller

Enjoy reliable water pressure for your home, garden and irrigation system with the Giantz 6-Stage Water Pump. Featuring a multi-stage pump design, stainless steel construction and a fully automatic pressure controller, this pump is designed for domestic water supply, rainwater tank transfer and garden irrigation.

Key Features

• Powerful Multi-Stage Pump: Six-stage design for high-pressure water delivery.
• 1300W Rated Input Power: Maximum input power of 2500W.
• High Flow Rate: Maximum rated flow of 12,000 litres per hour (200L/min).
• High Delivery Head: Maximum head of 70 metres.

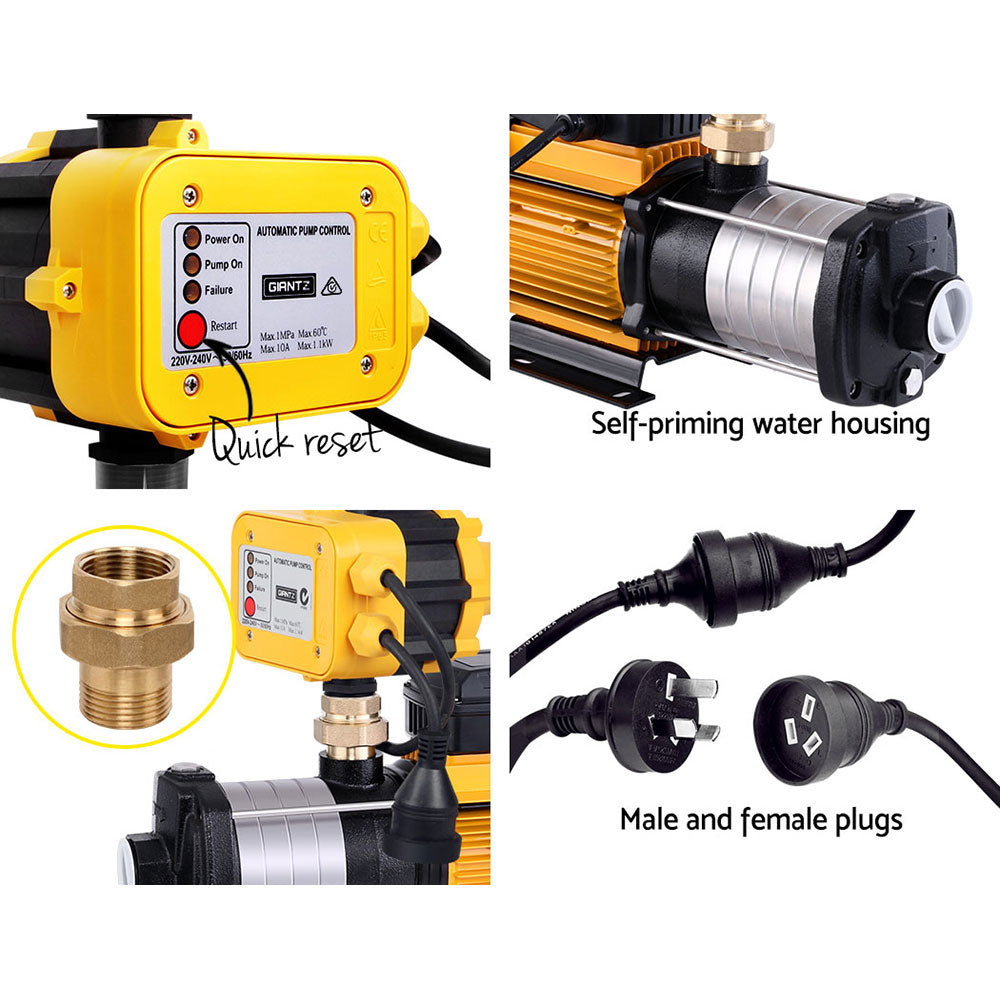

• Automatic Pressure Controller: Automatically controls pump operation in response to water demand.
• Stainless Steel Construction: Stainless steel pump body, impeller and motor shaft.
• Corrosion-Resistant Components: Brass connector and ceramic/carbon seals.

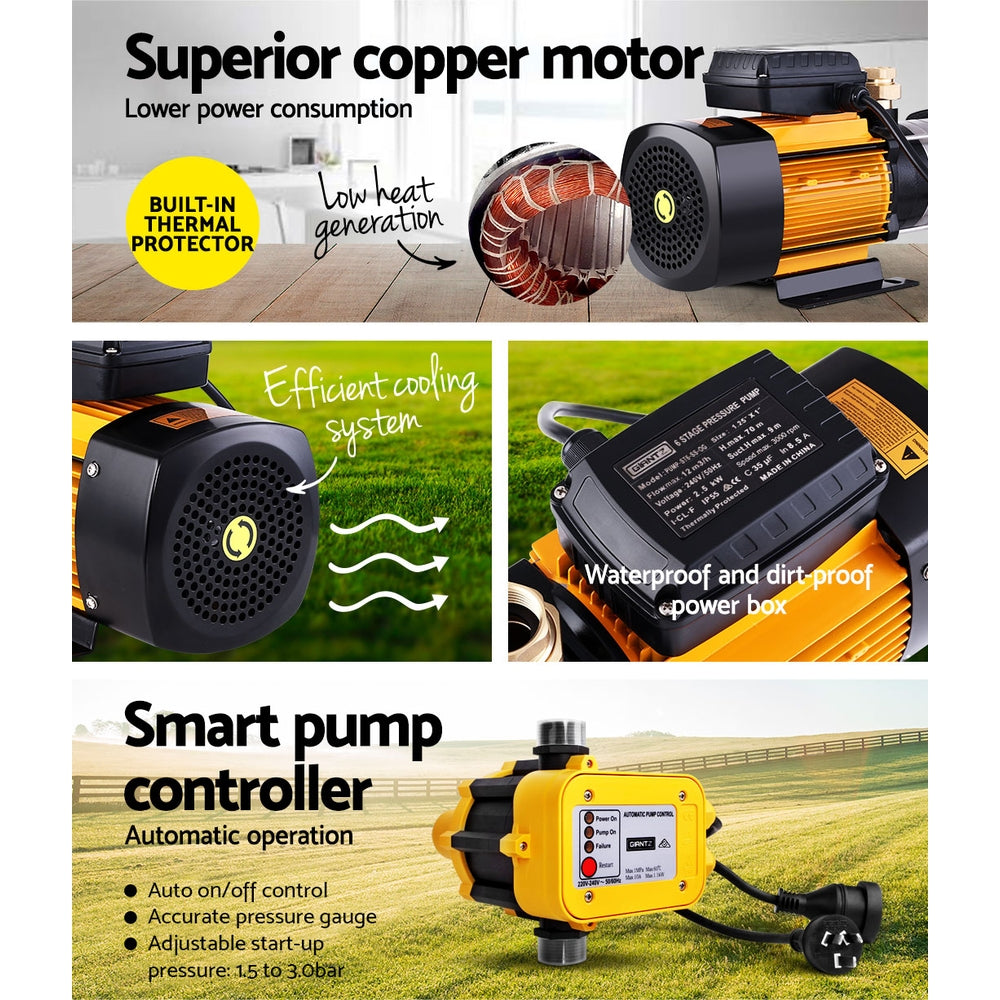

• Built-in Thermal Protection: Helps protect the motor against overheating.
• Continuous-Duty Rating: Listed for continuous operation within the manufacturer's operating limits.
• Easy Connection: Supplied with an Australian-standard plug and cable.

Suitable Applications

• Domestic water pressure boosting
• Garden and farm irrigation within the pump's rated capacity
• Transferring water from suitable rainwater tanks or wells
• Household garden watering
• Water circulation in compatible ponds and small fountains

Technical Specifications

• Brand: Giantz
• Model/Code: PUMP-ST6-SS-OG-YEL
• Pump Type: Six-stage water pressure pump
• Colour: Yellow
• Rated Input Power: 1300W
• Maximum Input Power: 2500W
• Plug and Cord: SAA 250V/10A, 0.3m
• Maximum Flow Rate: 12,000L/hour (200L/min)

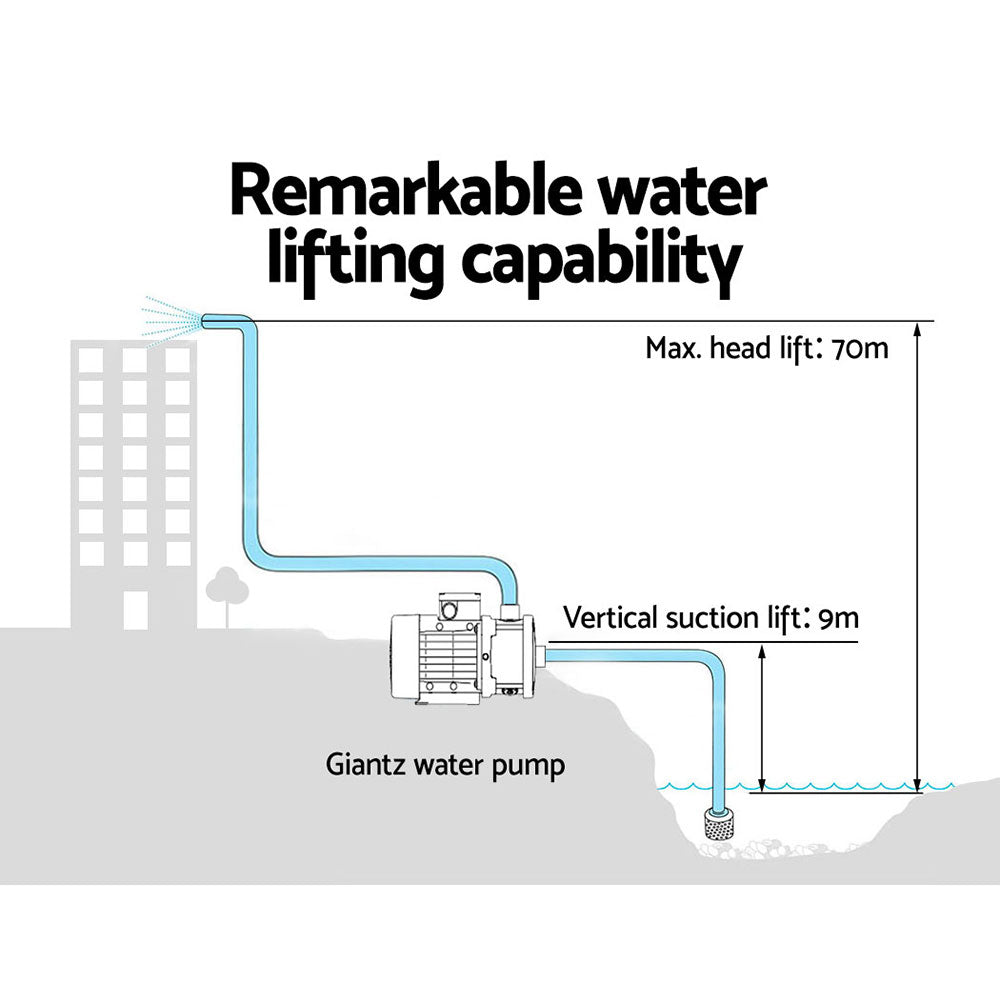

• Maximum Head: 70m
• Duty Cycle: Continuous, within specified operating limits

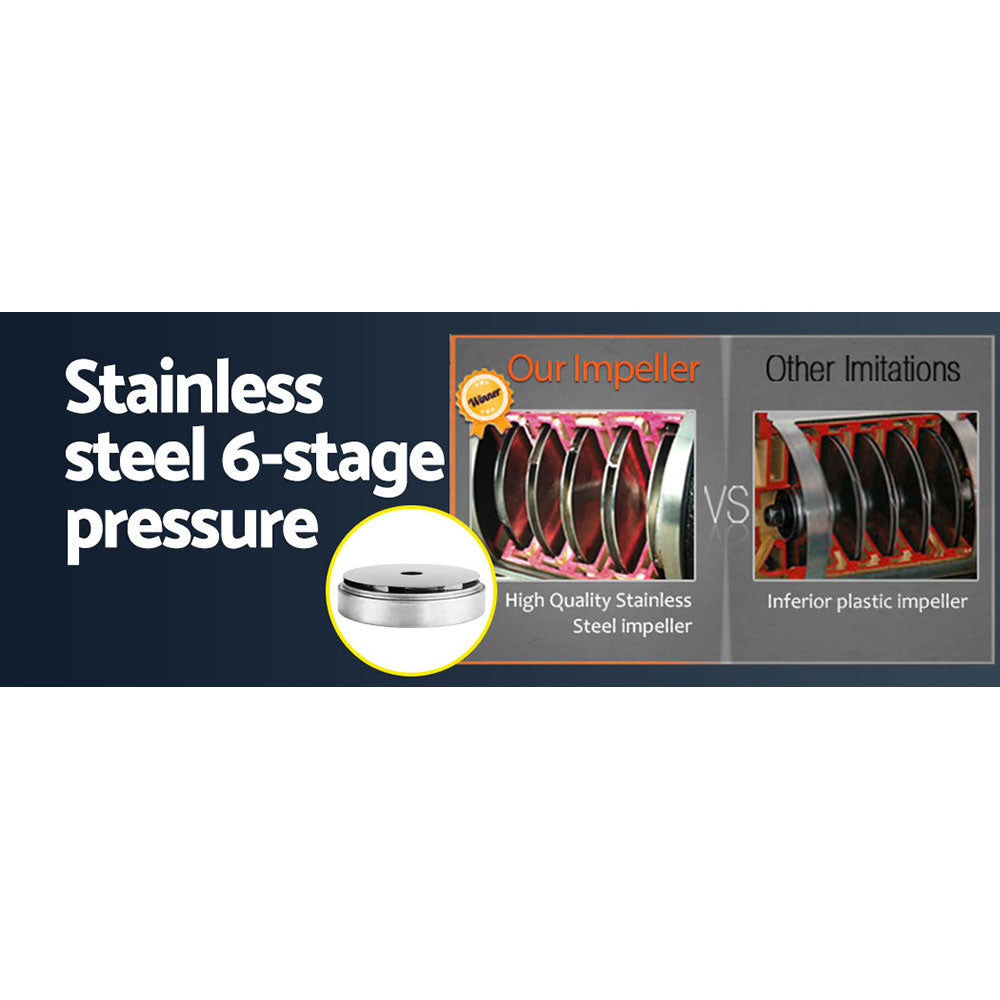

• Impeller: Stainless steel
• Pump Body: Stainless steel
• Motor Shaft: Stainless steel

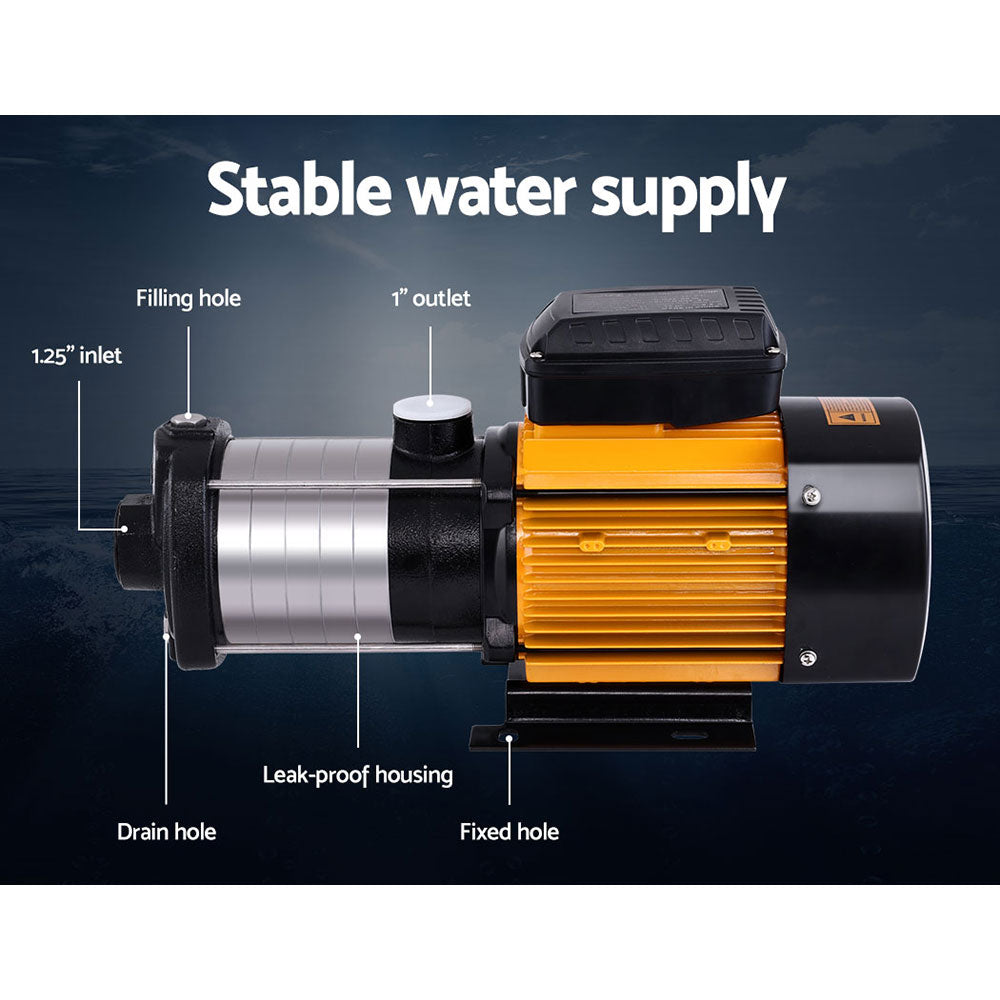

• Inlet Diameter: 1.25 inch (approximately 30mm)
• Outlet Diameter: 1 inch (25mm)
• Brass Connector: 1 inch
• Pump Protection Rating: IP44
• Insulation Class: B (130°C)
• Maximum Ambient Temperature: 40°C
• Maximum Liquid Temperature: 60°C

Automatic Controller Specifications

• Voltage: 220–240V
• Frequency: 50/60Hz
• Maximum Current: 10A
• Maximum Water Temperature: 60°C
• Maximum Working Pressure: 10 bar
• Protection Rating: IP65
• Inlet and Outlet: 1 inch (25mm)
• Dimensions: 22 × 12.4 × 17cm

Package Includes

• 1 × Giantz 6-Stage Water Pump
• 1 × Automatic Pump Controller
• 1 × User Manual

Important Safety Information

This pump is intended for suitable domestic water supply, garden irrigation and water-transfer applications. It is not designed for heavy-duty industrial, hydraulic or elevator systems. Ensure the electrical supply matches the pump requirements and follow the manufacturer's installation and safety instructions.

Maximum flow and maximum head are rated limits and may not be achieved simultaneously. Actual performance depends on installation, pipework and operating conditions.

Warranty: 1 year.
