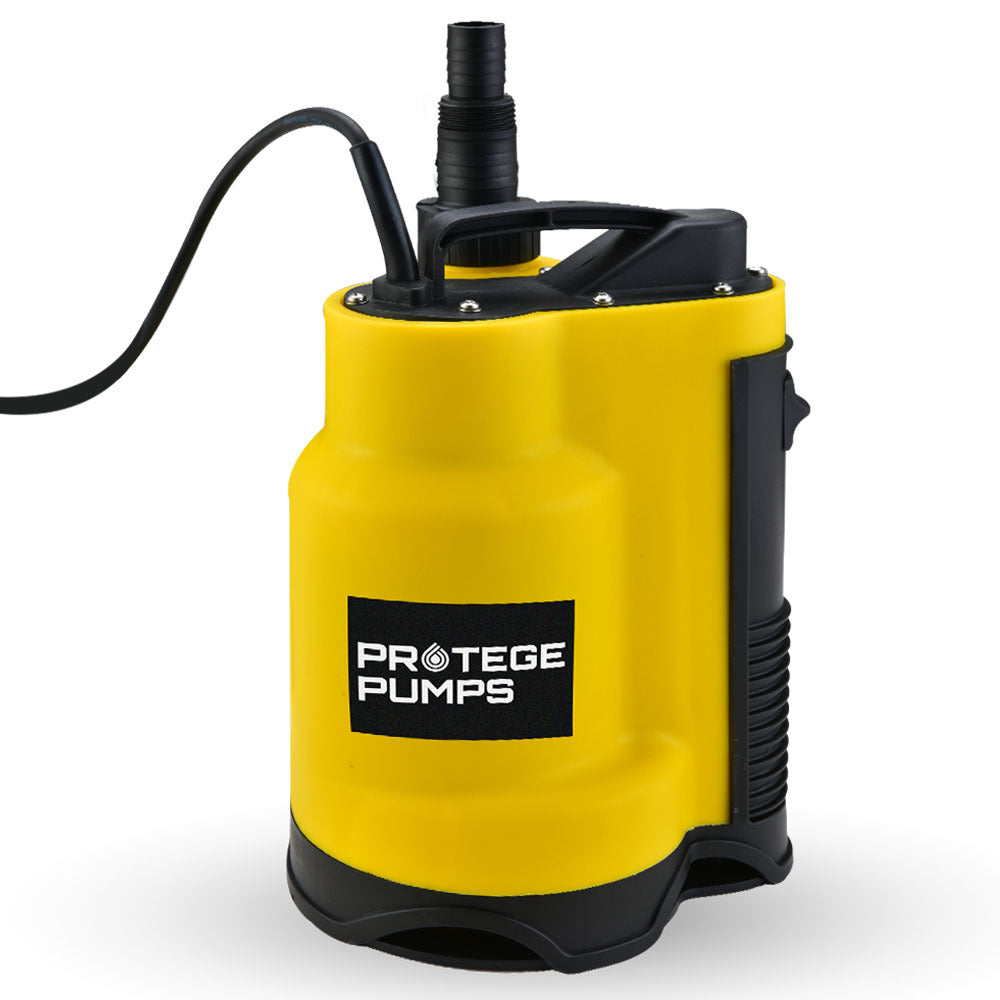

Protege PRD-M7 750W Submersible Dirty Water Pump – 13,000 L/h, 8.5m Head with Integrated Float Switch

The Protege PRD-M7 750W Submersible Dirty Water Pump is designed for dependable drainage in residential, garden and flood-recovery applications. Its integrated float switch supports automatic operation while its compact design allows installation in sump pits as small as 250 × 250mm.

With a maximum flow rate of 13,000 litres per hour and a maximum discharge head of 8.5 metres, this versatile pump is suitable for moving clean, grey and dirty water containing solid particles up to 16mm, subject to the manufacturer's operating guidelines.

Key Features

• 750W Motor: Designed for demanding household and garden drainage tasks.
• High Flow Capacity: Maximum listed pumping rate of 13,000 L/h.
• Integrated Float Switch: Helps automate pump operation as water levels rise and fall.

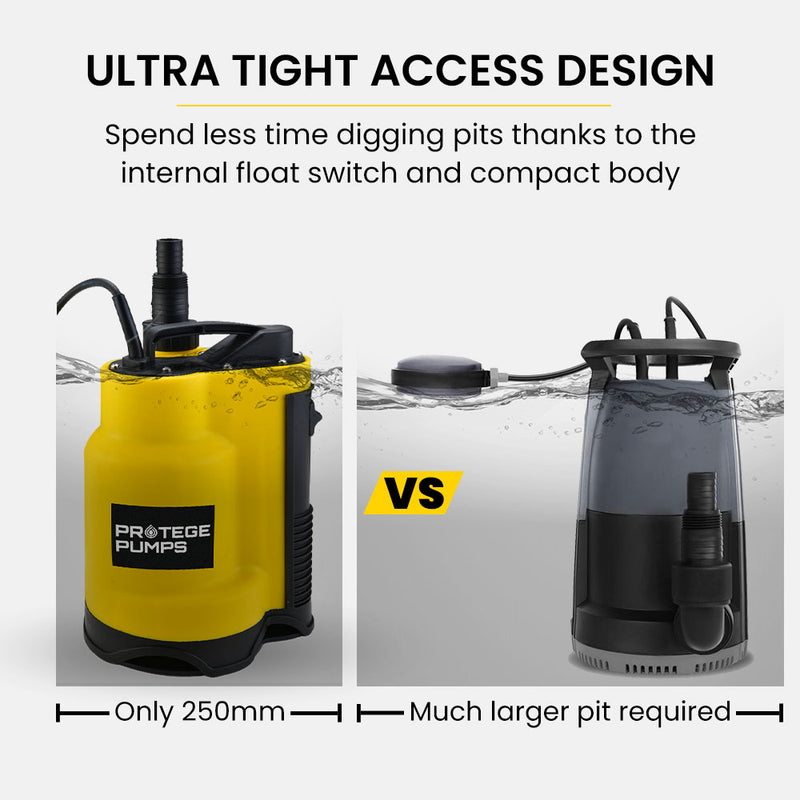

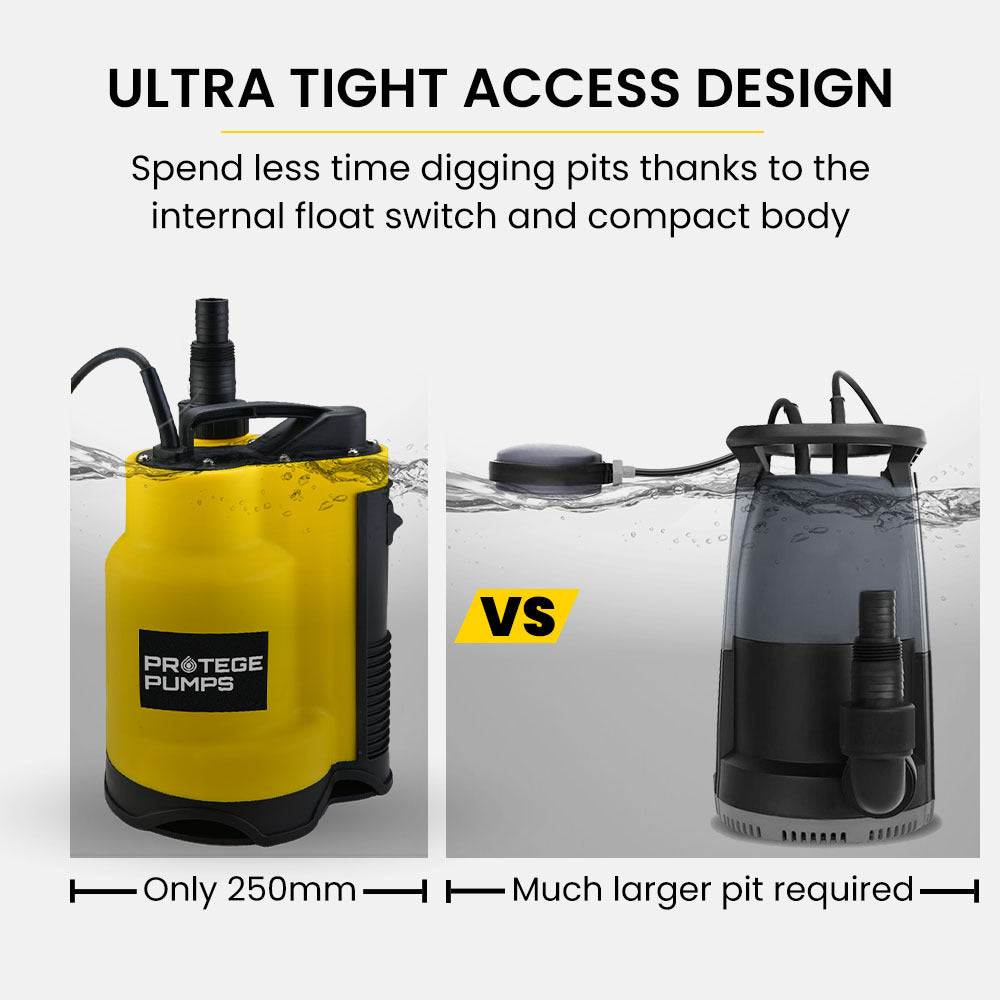

• Compact Installation: Suitable for sump pits measuring approximately 250 × 250mm.

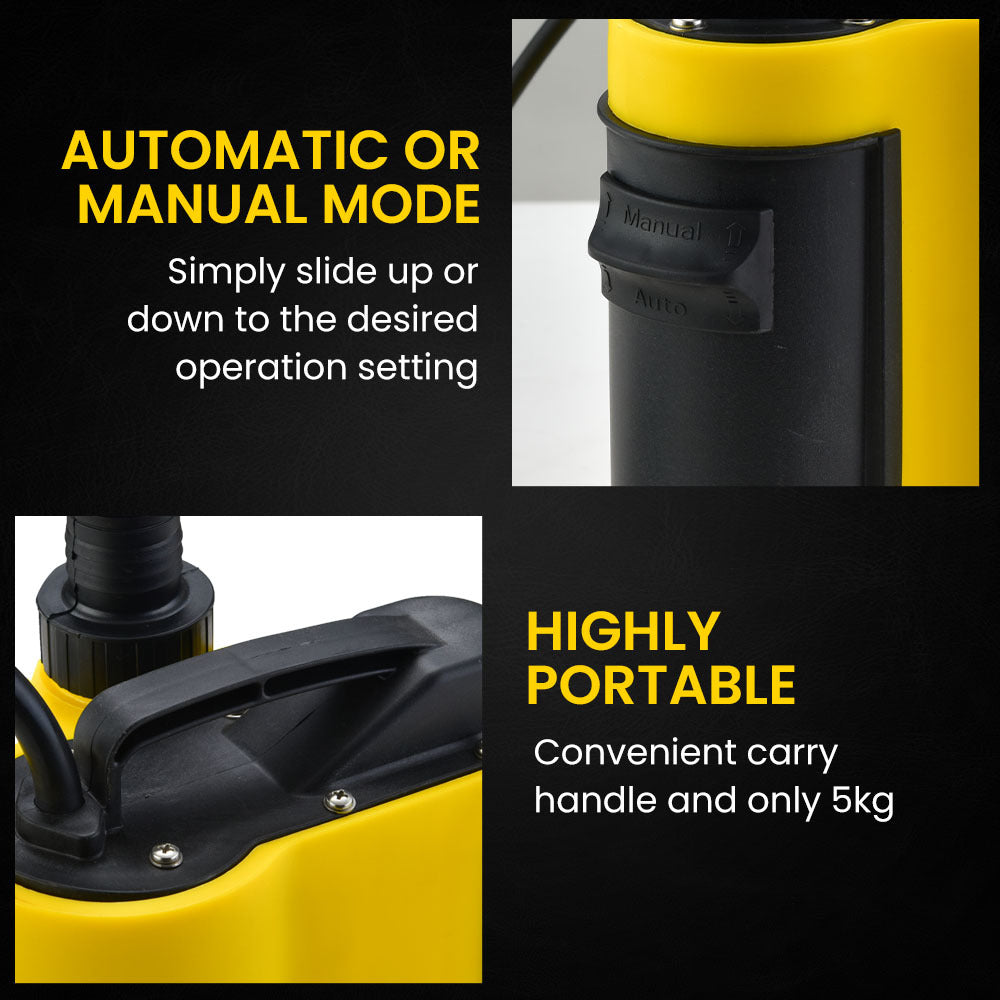

• Automatic and Manual Modes: Automatic operation between specified water levels, with manual mode for lower residual water levels.
• Dirty Water Handling: Designed to pass solid particles up to 16mm.
• IPX8 Rating: Listed for submersion up to 7 metres.
• 10m Power Cable: Provides flexibility when positioning the pump.

Product Specifications

• Brand: Protege
• Model: PRD-M7
• Power Rating: 750W

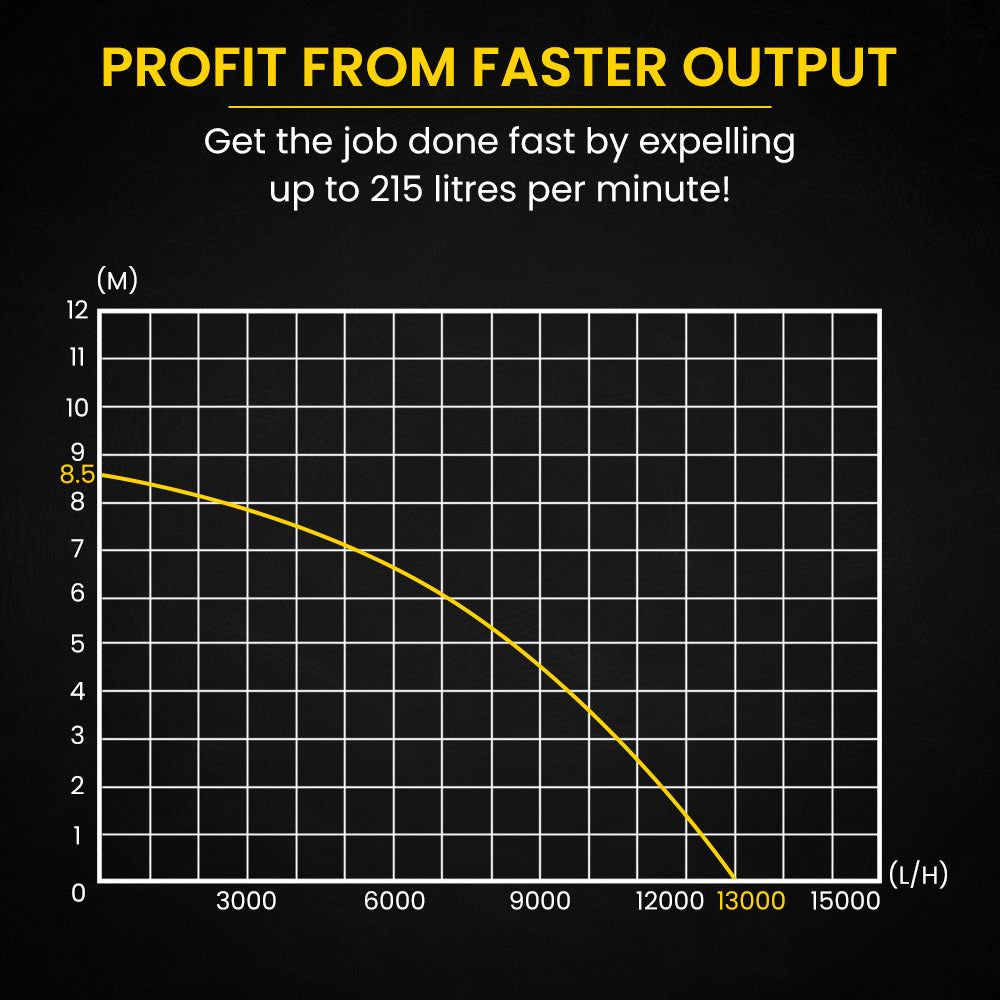

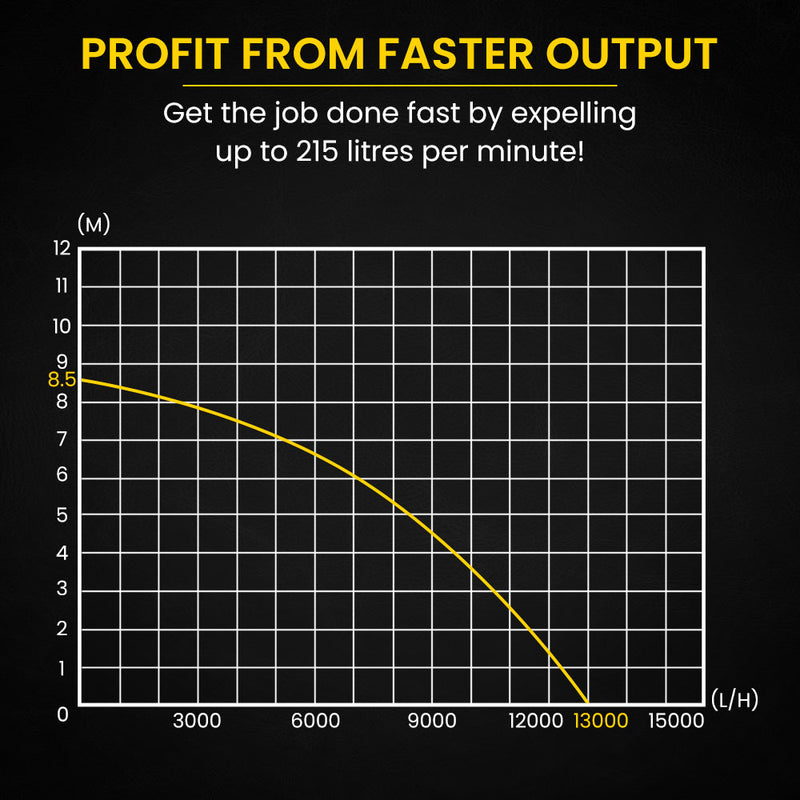

• Maximum Flow Rate: 13,000 L/h

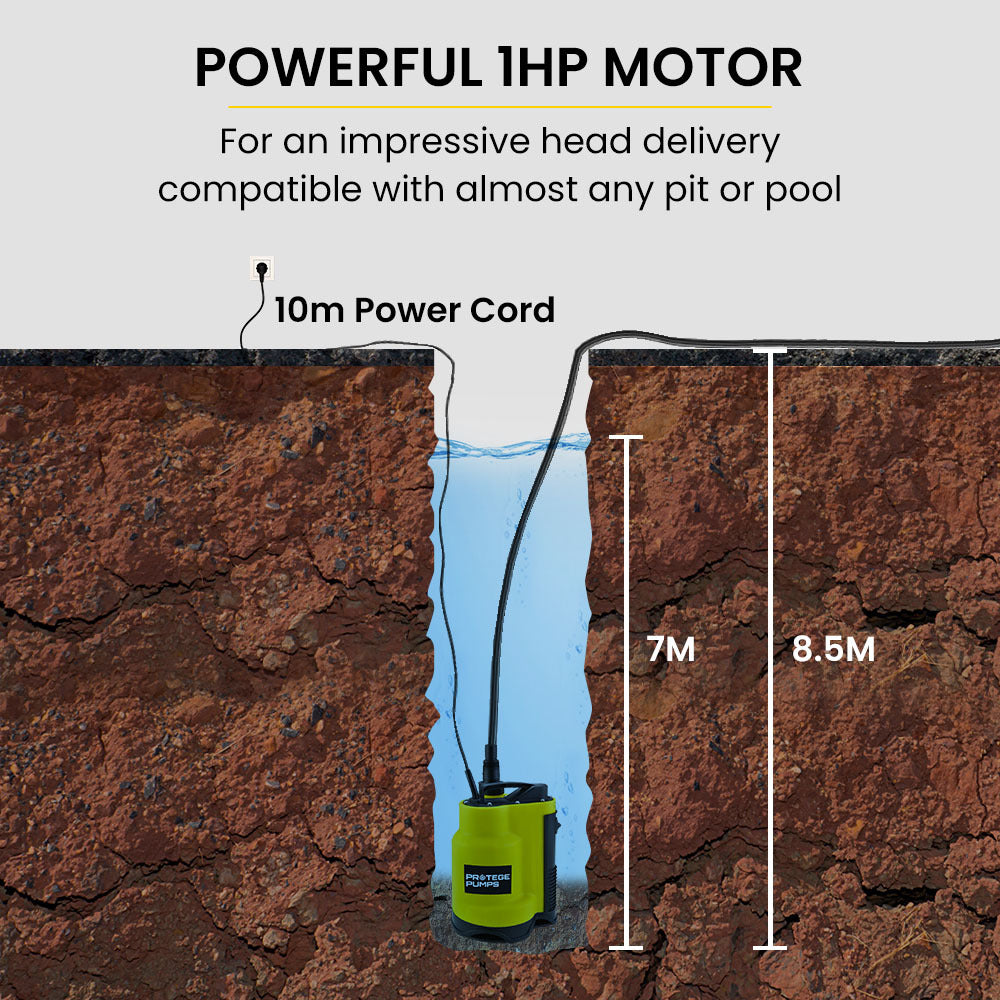

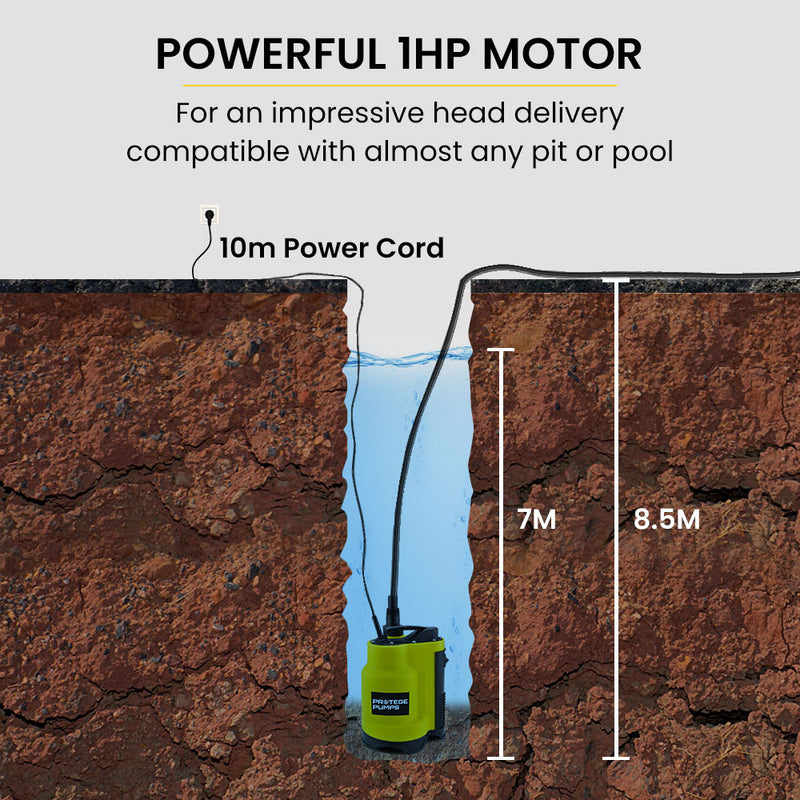

• Maximum Discharge Head: 8.5m
• Water Resistance Rating: IPX8
• Maximum Submersion Depth: 7m
• Maximum Solid Particle Size: 16mm

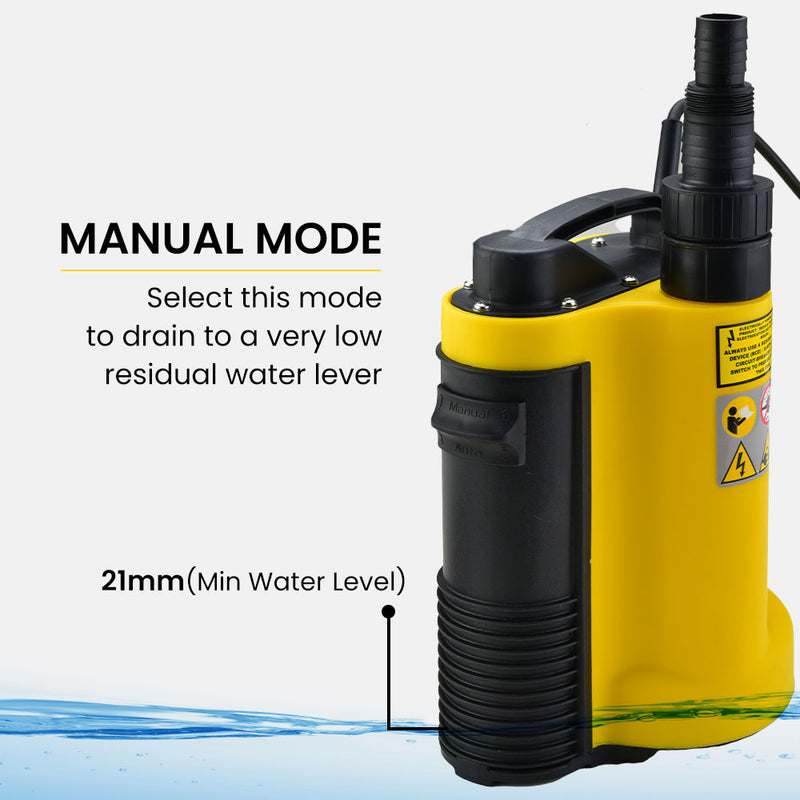

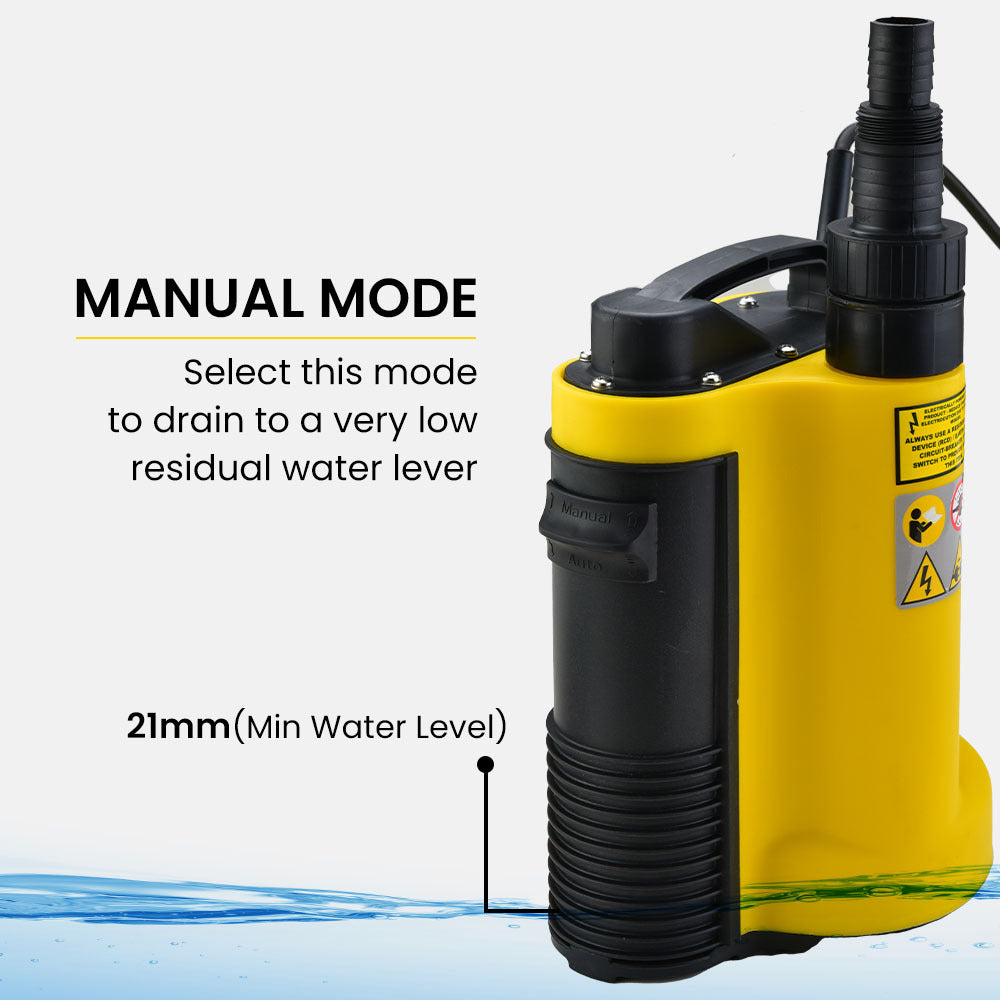

• Minimum Residual Water Level: 21mm in manual mode

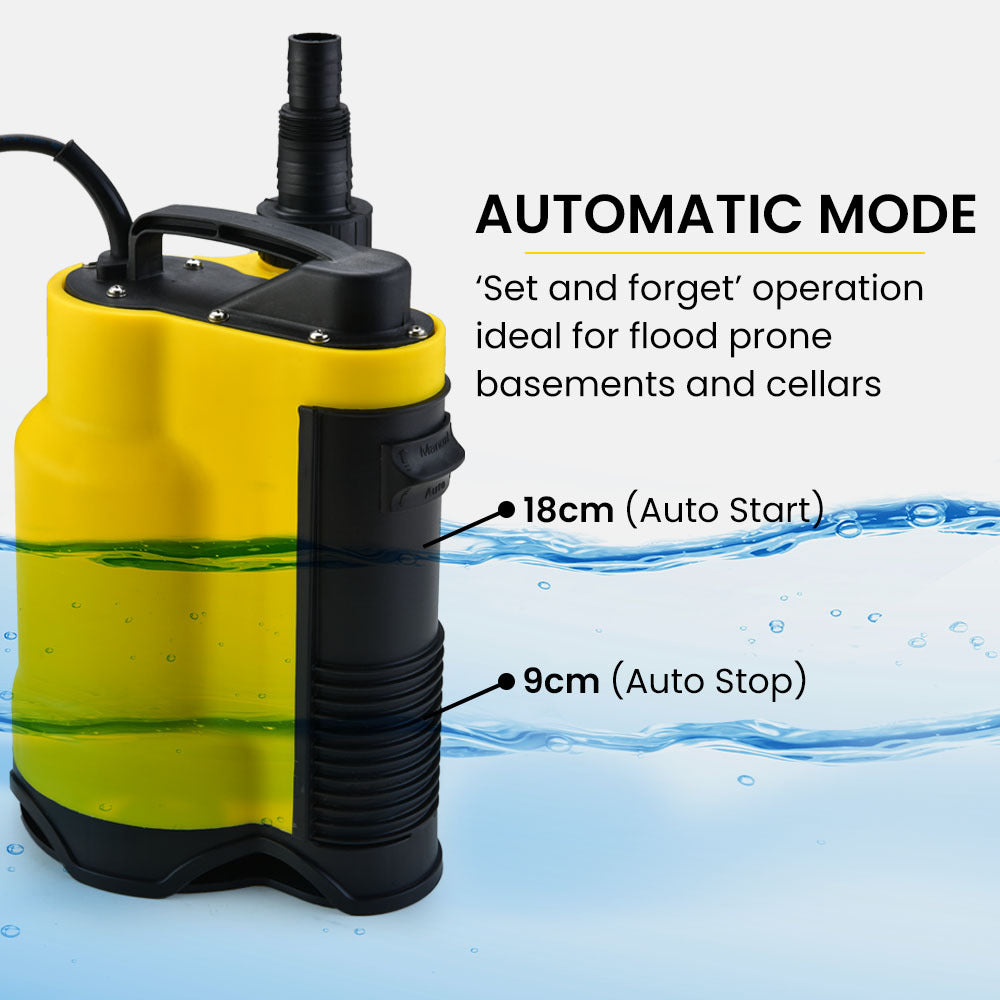

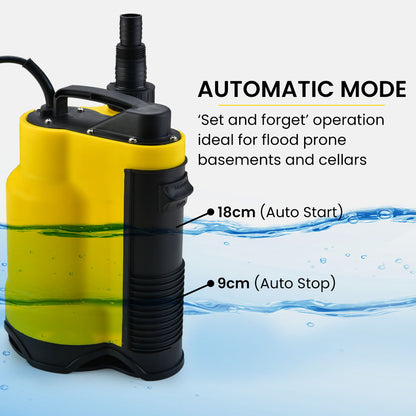

• Automatic Start/Stop Levels: 9cm / 18cm
• Housing Material: Polymer
• Impeller Material: Nylon

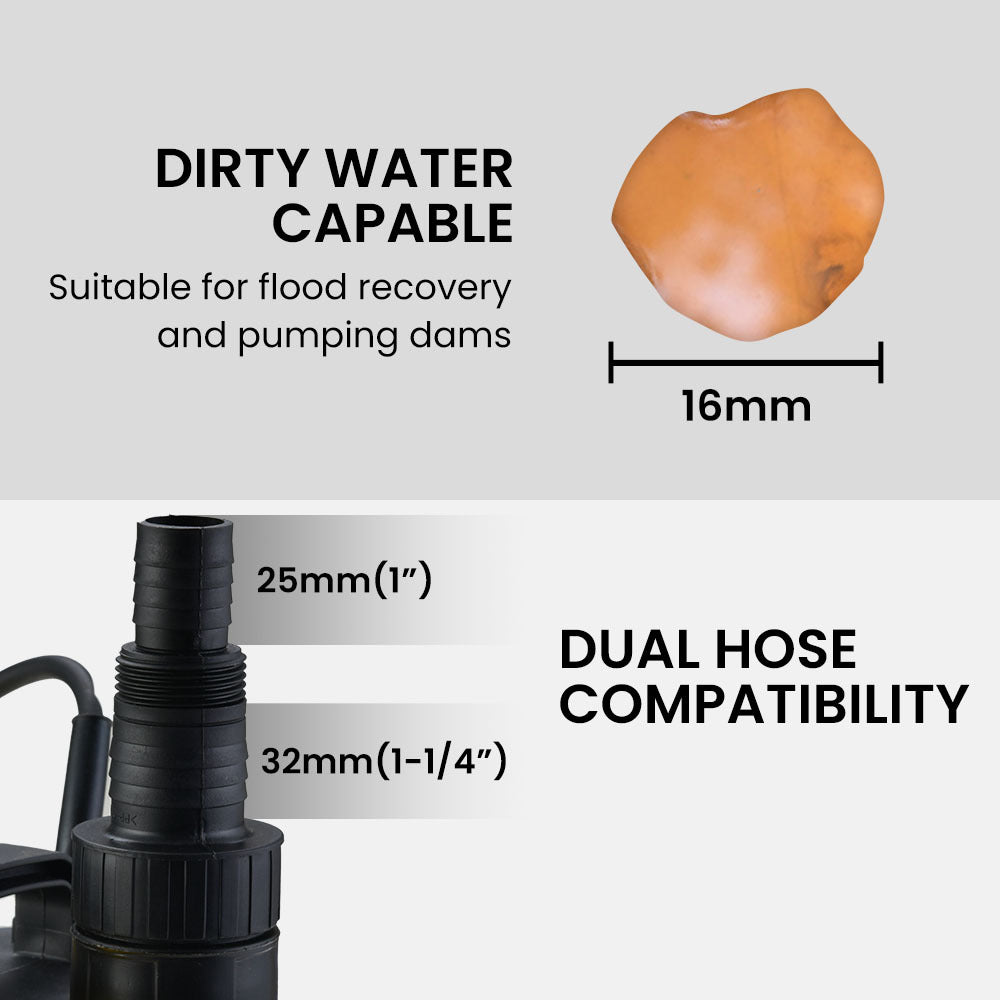

• Outlet Sizes: 25mm (1 inch) and 32mm (1¼ inch)
• Voltage: 240V AC / 50Hz
• Power Plug: 10A Australian Standard
• Power Cord Length: 10m
• Maximum Operating Temperature: 35°C

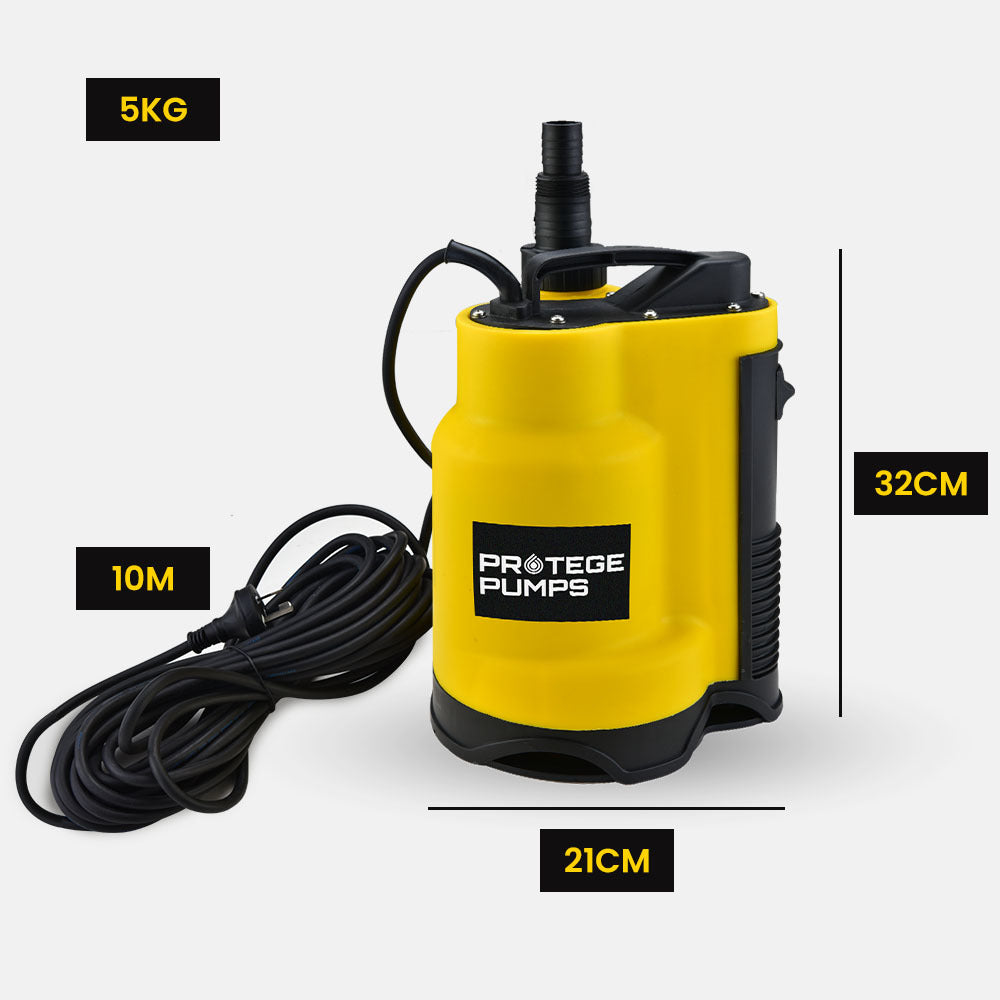

• Product Dimensions (W × L × H): 21 × 17 × 30cm
• Product Weight: 5kg
• Carton Dimensions (L × W × H): 23 × 19 × 37cm
• Carton Weight: 6kg
• SKU: V219-PMPWTPPTDW7A

Suitable Applications

• Flooded basements and cellars
• Garden ponds and water catchments
• Residential sump pits
• Rainwater and suitable dirty-water drainage
• Water removal after heavy rainfall
• General household and garden water transfer

Package Contents

• 1 × Protege PRD-M7 Submersible Dirty Water Pump
• 1 × Hose Connector

The user manual is available online.

Installation and Safety

Install the pump according to the manufacturer's instructions. Check the power supply, hose connection and permitted operating conditions before use. Do not exceed the specified particle size, operating temperature or submersion depth. Follow appropriate electrical safety precautions when using a submersible pump.

Why Choose the Protege PRD-M7?

The Protege PRD-M7 combines a powerful 750W motor, automatic float control and a compact footprint for practical drainage in restricted spaces. Its high listed flow capacity and ability to handle particles up to 16mm make it a versatile option for household drainage, garden maintenance and flood-recovery tasks.
