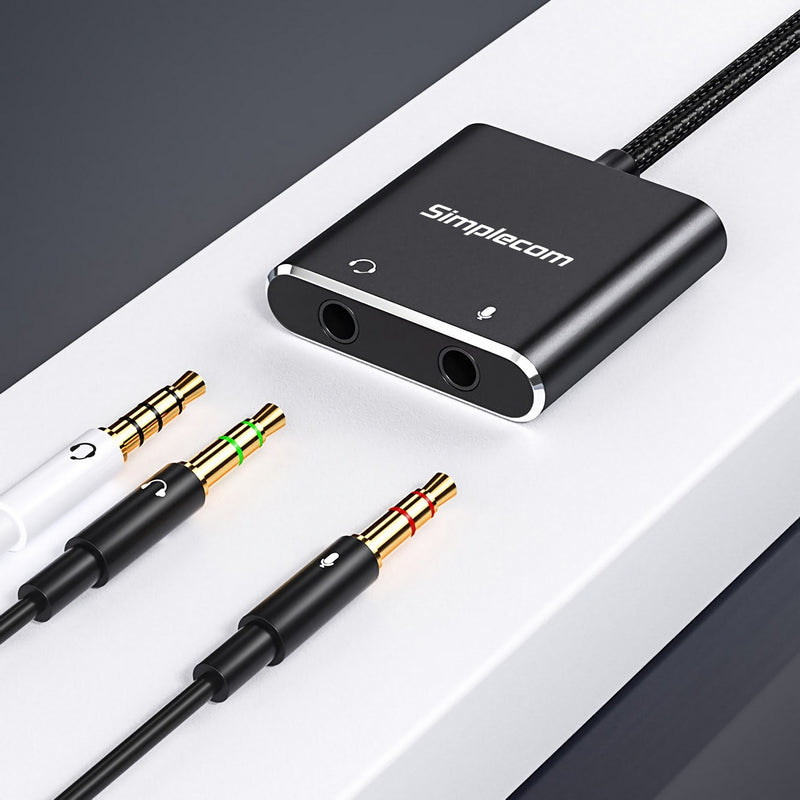

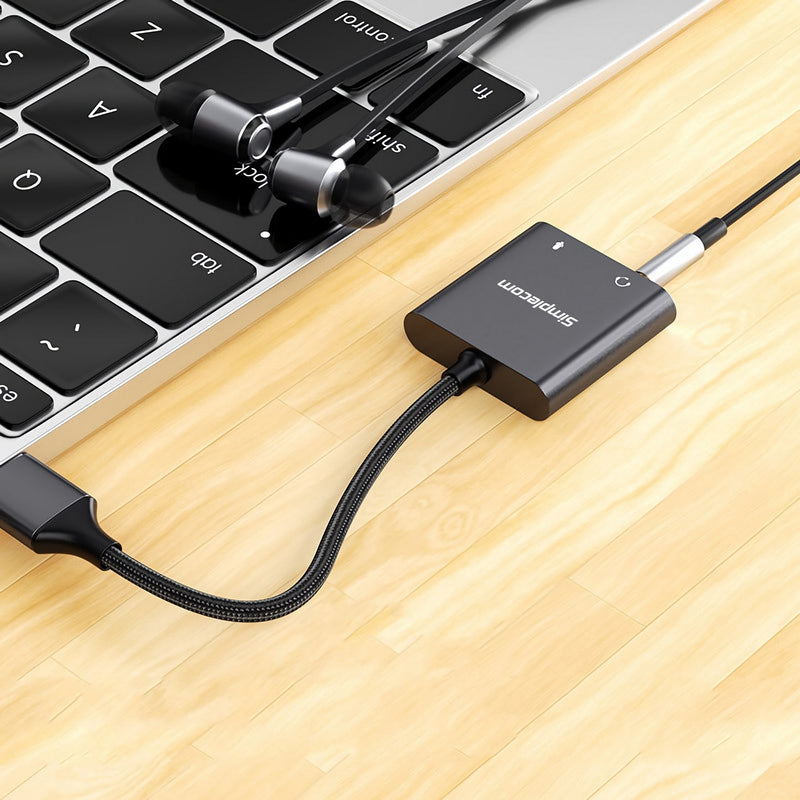

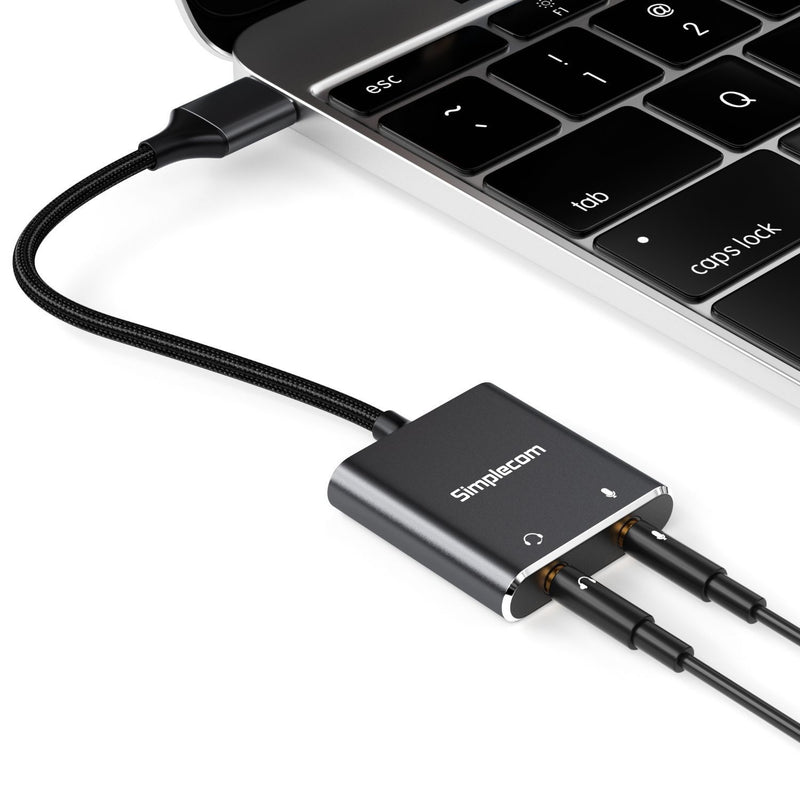

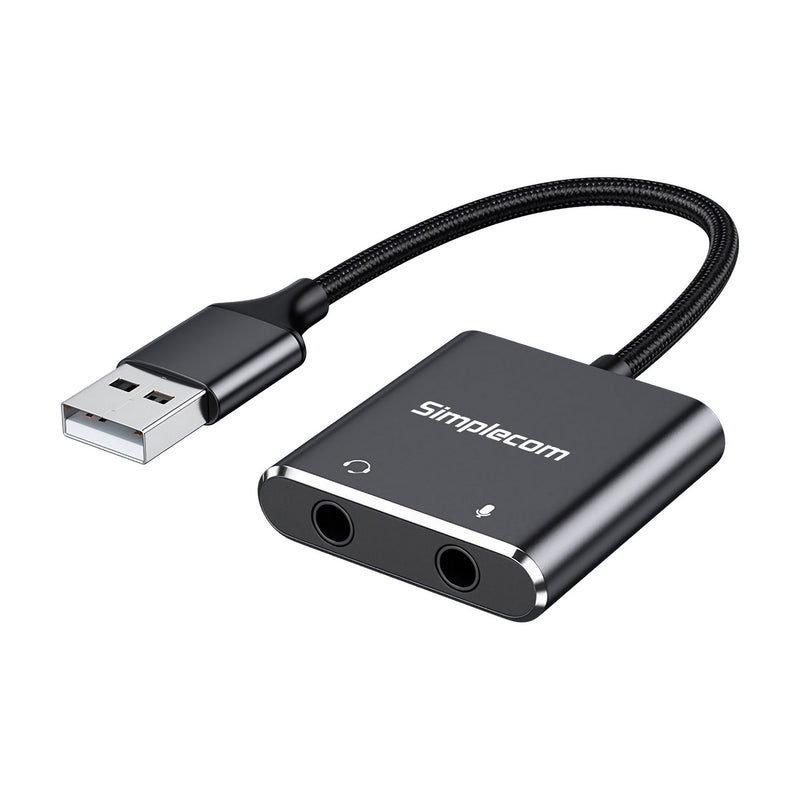

Simplecom CA152 USB to 3.5mm Audio & Microphone Adapter – USB 2.0 External Sound Card, TRS & TRRS Headset Support, 24-bit/96kHz Stereo Audio, Aluminium Housing

Connect your 3.5mm headphones and microphone to a computer through USB with the Simplecom CA152 USB to 3.5mm Audio and Microphone Sound Card Adapter. Featuring separate headphone and microphone ports, this compact USB audio adapter supports standard TRS headsets and single-plug TRRS headsets with an integrated microphone. Its built-in smart conversion chip automatically detects compatible headset connections, while the aluminium casing and braided cable provide a durable, portable design.

Key Features & Benefits

• USB to 3.5mm Audio Adapter: Adds separate headphone and microphone connections to a compatible computer through USB.

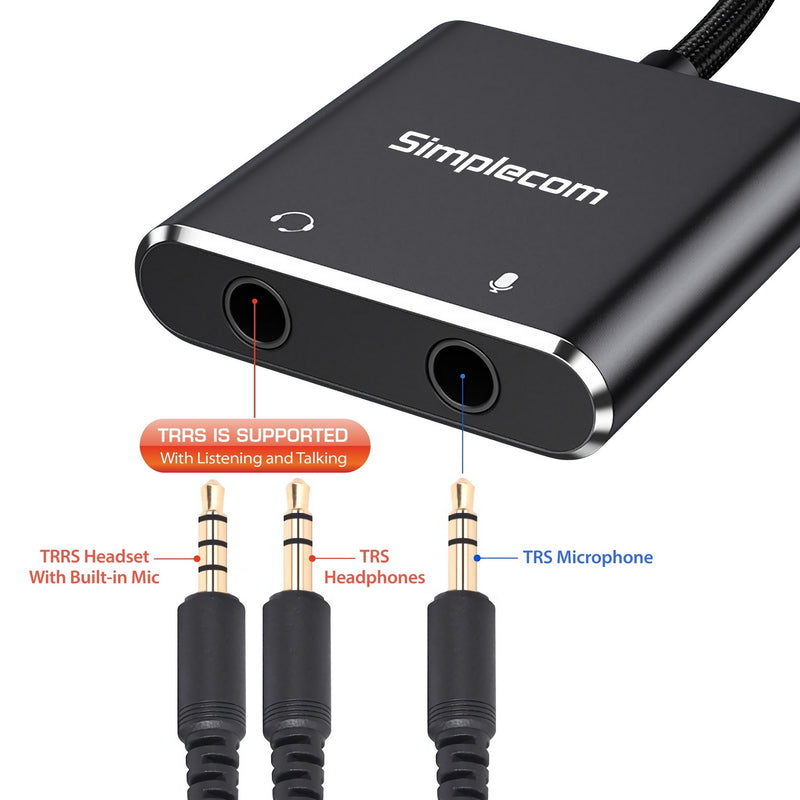

• TRS and TRRS Headset Support: The headphone jack supports standard TRS headsets and TRRS headsets with an integrated microphone.
• Automatic Headset Detection: Built-in smart conversion technology detects compatible TRS or TRRS headset connections.
• Separate Microphone Input: Includes a dedicated 3.5mm TRS microphone port for compatible external microphones.
• High-Resolution Stereo Audio: Supports audio output up to 24-bit/96kHz stereo.
• Plug and Play: No additional driver software is required on supported systems.
• Aluminium Housing: Premium aluminium casing provides a durable finish.
• Braided Cable: Durable braided cable helps protect the connection during everyday use.
• Compact and Portable: Lightweight design makes it convenient for home, office and travel use.

Product Specifications

• Brand: Simplecom
• Model: CA152
• Product Type: USB to 3.5mm audio and microphone adapter
• USB Interface: USB 2.0
• Headphone Connection: 3.5mm TRRS female, four-conductor, with microphone support
• Microphone Connection: 3.5mm TRS female, three-conductor
• Maximum Audio Output: 24-bit/96kHz stereo
• Housing Material: Aluminium
• Cable Material: Braided
• Cable Length: 15cm (excluding connectors)
• Dimensions: 3.4 x 3.3 x 0.8cm
• Weight: 18g
• Operating System Support: Windows XP and above, macOS 8.6 and above, Linux and Chrome OS
• Additional Device Compatibility: PS4, PS5 and Nintendo Switch

Product Uses

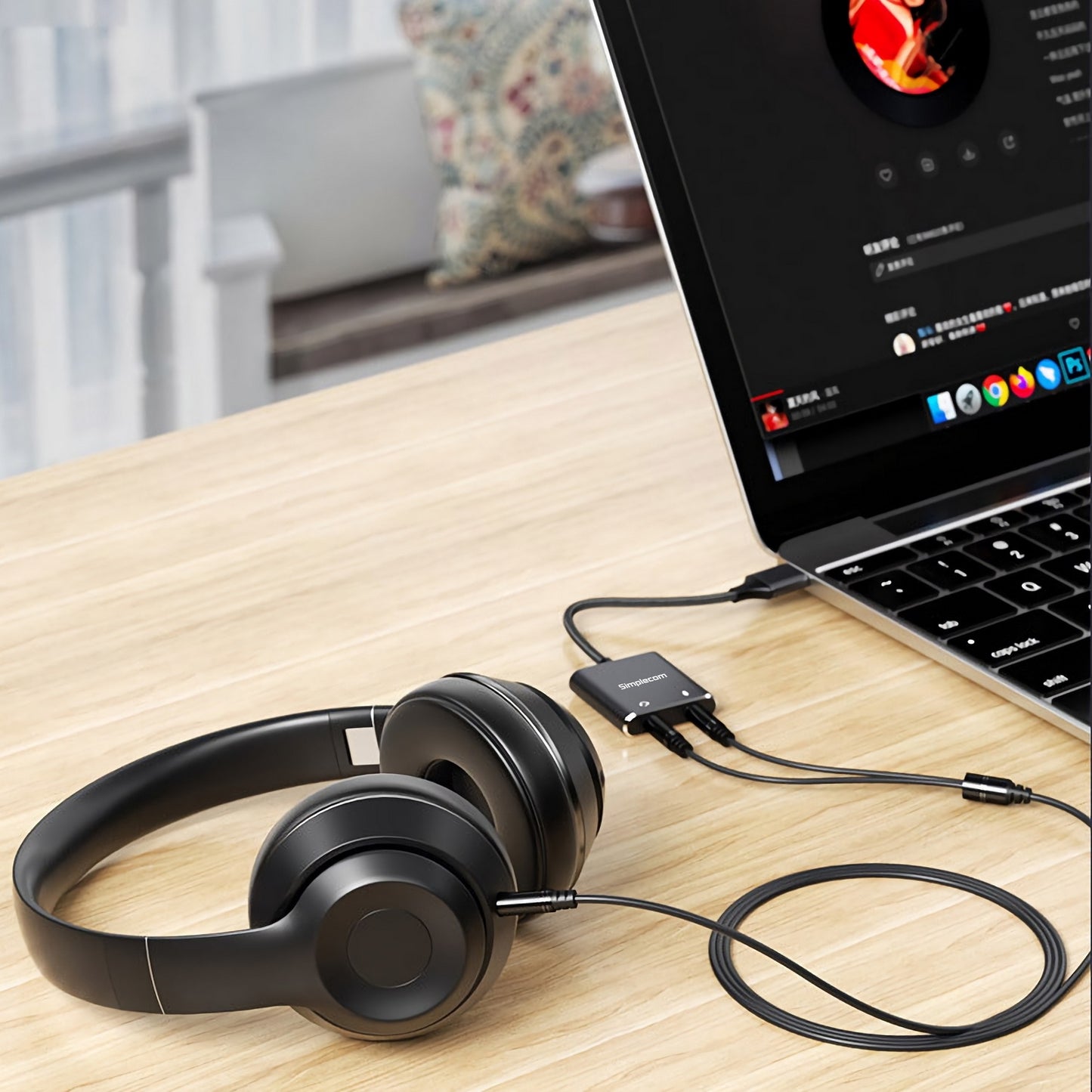

Use the Simplecom CA152 to connect compatible 3.5mm headphones, headsets and microphones to a computer or supported gaming device through USB. It is suitable for online meetings, voice chats, gaming, listening to music and everyday audio applications. A compatible single-plug TRRS headset can provide both headphone audio and microphone functionality through the headphone port.

Compatibility Note

Important: The adapter supports CTIA-standard TRRS headsets only; legacy OMTP-standard headsets are not supported. When a TRRS headset with an integrated microphone is connected, its microphone is activated and the adapter's separate microphone port is disabled. The adapter does not support inline headset controls such as play, pause or volume adjustment. It is not compatible with PS3, TVs, amplifiers, car audio systems or Xbox One because their USB ports do not carry the required audio signal.
