Simplecom CM302v2 HDMI 2.1 Bi-Directional 2-Way Switch – 8K@60Hz, 4K@120Hz, 48Gbps, HDR10
Simplecom CM302v2 HDMI 2.1 Bi-Directional 2-Way Switch – 8K@60Hz, 4K@120Hz, 48Gbps, HDR10
Couldn't load pickup availability
Estimate shipping
Check delivery costs for your selected quantity without adding to cart.
Quantity: 1 item · Selected product
Available shipping options · 1 item
Estimated for your selected quantity. Final cost at checkout.
SKU:V28-SIMCM302V2
Electronics > Computer Accessories > Computer Cables & Adapters
Make your home entertainment and workstation setup more flexible with the Simplecom CM302v2 Bi-Directional HDMI 2.1 Switch. This compact 2-way HDMI selector lets you connect two HDMI sources to one display, or one HDMI source to switch between two displays. With support for up to 8K@60Hz resolution and 48Gbps bandwidth, it is designed for compatible gaming consoles, computers, TV boxes, monitors and televisions.
Key Features & Benefits
- Bi-Directional 2-Way Switching: Use two HDMI sources with one display, or one HDMI source with two selectable displays.
- HDMI 2.1 Support: Supports bandwidth up to 48Gbps for high-resolution video transmission.
- High Resolution and Refresh Rates: Supports up to 8K@60Hz, 4K@120Hz and 1080p@240Hz with compatible equipment.
- HDR10 Support: Delivers compatible high dynamic range video for enhanced picture detail.
- Wide Audio Compatibility: Supports DTS-HD, Dolby TrueHD, Dolby Digital, Dolby Atmos and LPCM 7.1 audio formats.
- HDCP 2.3 Compliant: Supports protected digital content from compatible HDMI devices.
- Manual Toggle Button: Easily select the required source or display without repeatedly disconnecting cables.
- Durable Aluminium Housing: Compact aluminium alloy casing helps dissipate heat and is easy to carry.
- No External Power Required for Normal Operation: Powered by the connected HDMI source, with USB-C backup power available if additional power is needed.
Product Specifications
- Brand: Simplecom
- Model: CM302v2
- Device Type: Bi-directional 2-way HDMI switch
- HDMI Version: HDMI 2.1
- Maximum Bandwidth: 48Gbps
- Supported Resolutions: Up to 8K@60Hz, 4K@120Hz and 1080p@240Hz
- HDR Support: HDR10
- HDCP Support: HDCP 2.3
- Audio Formats: DTS-HD, Dolby TrueHD, Dolby Digital, Dolby Atmos and LPCM 7.1
- Maximum Cable Distance: Less than 2m on the input and output sides
- Backup Power Input: USB DC 5V
- Maximum Operating Current: 15mA
- Operating Temperature: -15°C to +55°C
- Dimensions: 53 x 52 x 21mm
- Weight: 45g
- Housing Material: Aluminium alloy
Product Uses
Connect a gaming console, PC or TV box to one HDMI port on your television or monitor and switch between the two sources. Alternatively, connect one HDMI source to two displays and manually select which display to use. It is suitable for home entertainment systems, gaming setups and office workstations.
Package Includes
- 1 x Simplecom CM302v2 Bi-Directional HDMI Switch
- 1 x HDMI Cable
- 1 x User Manual
Important Usage Notes
- This is a manual switch and does not support automatic source switching.

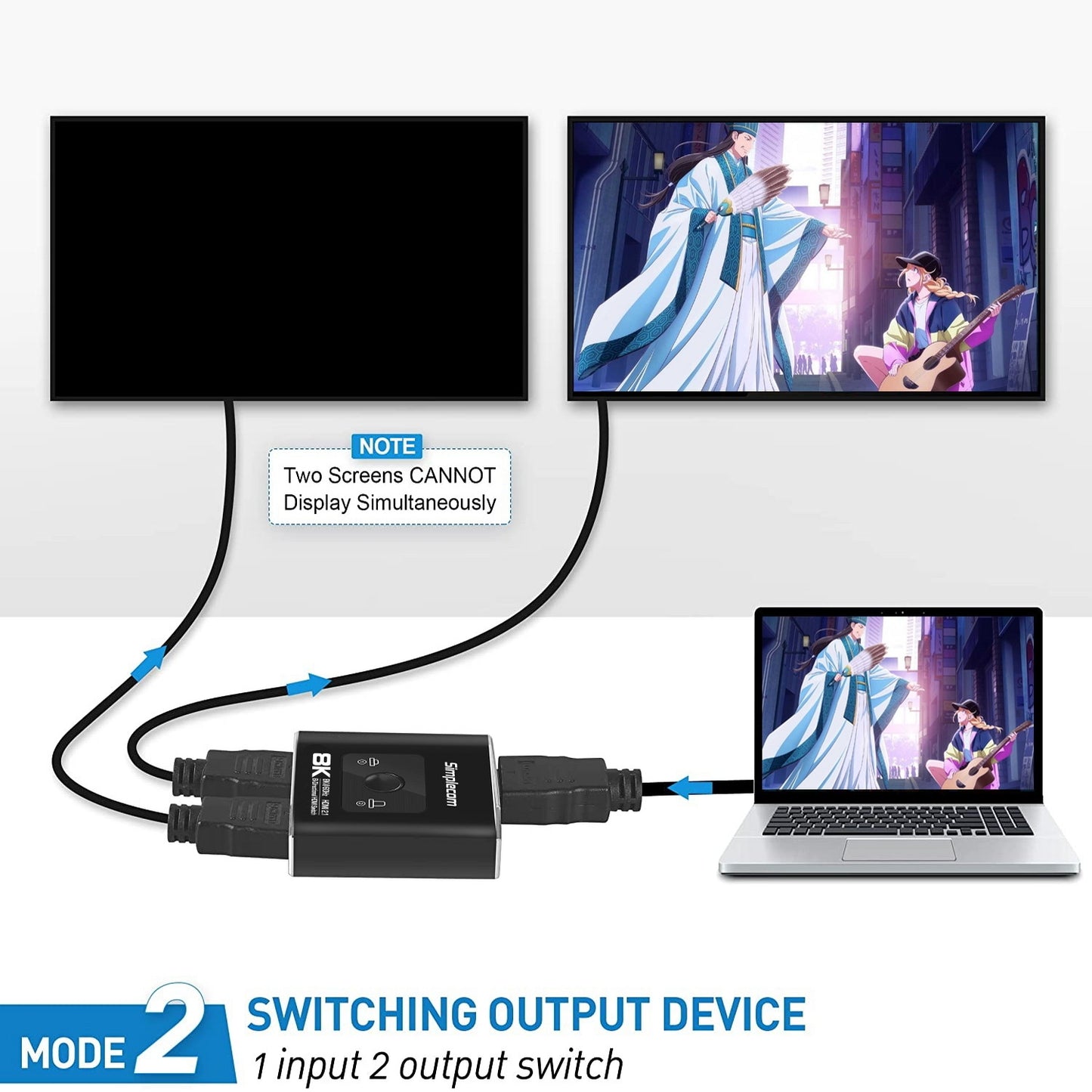

- When using one HDMI input with two output displays, only one display can be selected at a time. Both displays cannot operate simultaneously.
- Keep HDMI cables connected to the switch shorter than 2 metres on both the input and output sides.
- USB-C backup power may be used if the HDMI source does not provide sufficient power.
- Achieving the maximum resolution and refresh rate requires compatible source devices, displays and HDMI cables.
