Simplecom CM505v3 Component to HDMI Converter – YPbPr Video & Stereo Audio to Full HD 1080p, USB Powered

Connect your older audio and video equipment to modern HDMI displays with the Simplecom CM505v3 Component to HDMI Converter. Designed to convert analogue YPbPr component video and stereo R/L audio into digital HDMI output, this convenient adapter supports resolutions up to Full HD 1080p. Its plug-and-play design and USB power supply make it a practical solution for connecting compatible DVD players, set-top boxes and gaming consoles to HDMI televisions and monitors.

Key Features & Benefits

• Component to HDMI conversion: Converts analogue YPbPr video and stereo R/L audio into digital HDMI output.
• Full HD 1080p support: Supports video resolutions up to 1920 x 1080.
• Stereo audio support: Supports uncompressed two-channel audio formats such as LPCM.
• Wide device compatibility: Suitable for compatible older DVD players, set-top boxes and gaming consoles with component video output.
• USB powered: Operates using a 5V USB power connection, which can connect to a USB wall adapter or suitable TV USB port.
• Durable aluminium housing: Provides a sturdy enclosure and helps dissipate heat during operation.
• High bandwidth: Supports 165MHz / 1.65Gbps per channel and 4.95Gbps across all channels.
• Plug-and-play operation: Provides convenient connectivity without complicated installation.

Product Specifications

• Brand: Simplecom
• Model: CM505v3
• Product Type: Component to HDMI Converter
• Input: Component YPbPr + Stereo R/L Audio
• Output: HDMI
• Maximum Supported Resolution: Full HD 1080p
• Interlaced Resolutions: 480i, 576i, 1080i
• Progressive Resolutions: 480p, 576p, 720p, 1080p
• Vertical Frequency: 50/60Hz
• Video Amplifier Bandwidth: 165MHz / 1.65Gbps per channel
• Colour Depth: 8-bit per channel (24-bit total)
• Audio Support: Uncompressed 2-channel audio, including LPCM
• Housing Material: Aluminium
• Power Input: USB 5V 1A
• Maximum Power Consumption: 5W
• Operating Temperature: 0°C to 70°C
• Operating Humidity: 10% to 85% RH

Product Uses

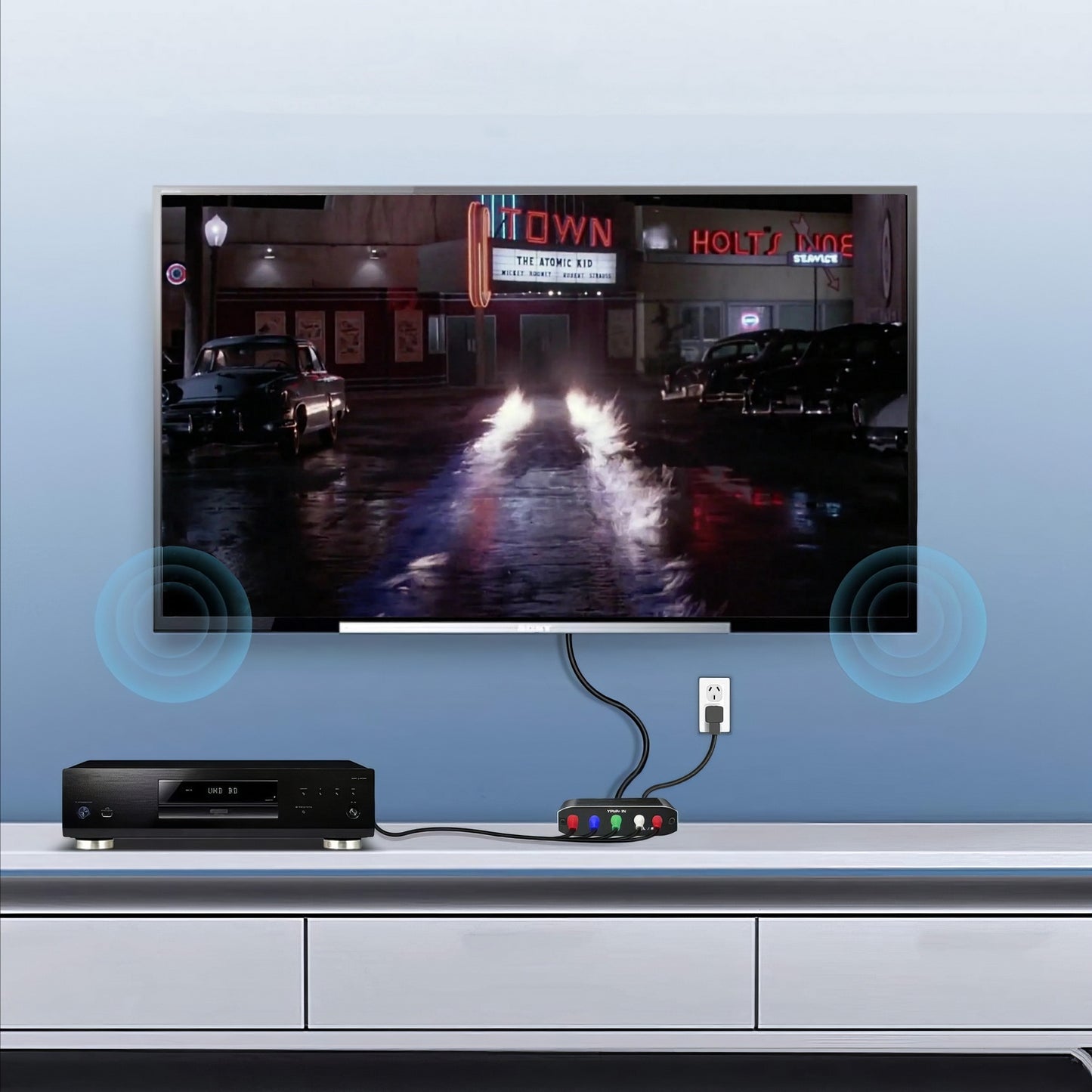

Use the Simplecom CM505v3 to connect compatible component-output devices, such as older DVD players, set-top boxes and gaming consoles, to modern HDMI televisions, monitors and displays. It is ideal for bringing legacy entertainment equipment into an HDMI-based setup.

Package Includes

• 1 x Simplecom CM505v3 Component to HDMI Converter
• 1 x HDMI Cable
• 1 x USB Power Cable
• 1 x USB Wall Adapter

Important Compatibility Information

• One-way conversion: Converts component video to HDMI only. It cannot convert HDMI to component.
• No resolution upscaling: The converter changes the connection format but does not increase the original video resolution. The HDMI display must support the input source resolution.
• Audio limitation: Supports two-channel analogue audio input and does not function as a standalone audio-only converter.
• Connection requirement: Your source device must have YPbPr component video and stereo R/L audio outputs.
