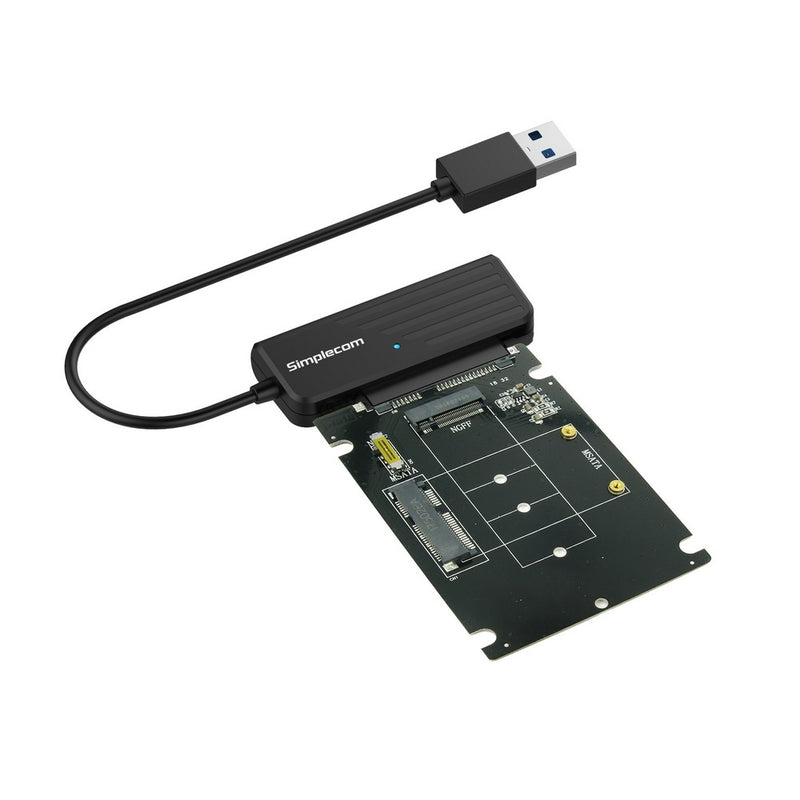

Simplecom SA225 USB 3.0 to mSATA & M.2 NGFF B Key SSD Adapter – 2-in-1 SATA SSD Converter, 5Gbps Data Transfer, USB 3.0 Cable

Simplecom SA225 USB 3.0 to mSATA & M.2 NGFF B Key SSD Adapter – 2-in-1 SATA SSD Converter, 5Gbps Data Transfer, USB 3.0 Cable

$40.00
$50.95 $40.00
Sale Sold out
Shipping calculated at checkout.
FREE SHIPPING

Estimate shipping

Check delivery costs for your selected quantity without adding to cart.

Quantity: 1 item · Selected product

Estimated for your selected quantity. Final cost at checkout.

V28-SA225

Electronics > Computer Accessories

Access and transfer data from compatible mSATA and M.2 SATA SSDs with the Simplecom SA225 USB 3.0 to mSATA and M.2 NGFF B Key 2-in-1 Combo Adapter. Designed for convenient data backup, migration and storage access, this versatile adapter converts supported SSDs into USB 3.0 storage devices with data transfer speeds of up to 5Gbps.

Key Features & Benefits

  • 2-in-1 SSD Compatibility: Supports both full-size mSATA SSDs and compatible M.2 NGFF SATA SSDs.
  • USB 3.0 Connectivity: Connect compatible SSDs to a computer through a USB 3.0 port.
  • Up to 5Gbps Transfer Speed: Uses USB 3.0 (USB 3.1 Gen 1) technology for fast data access and transfers.

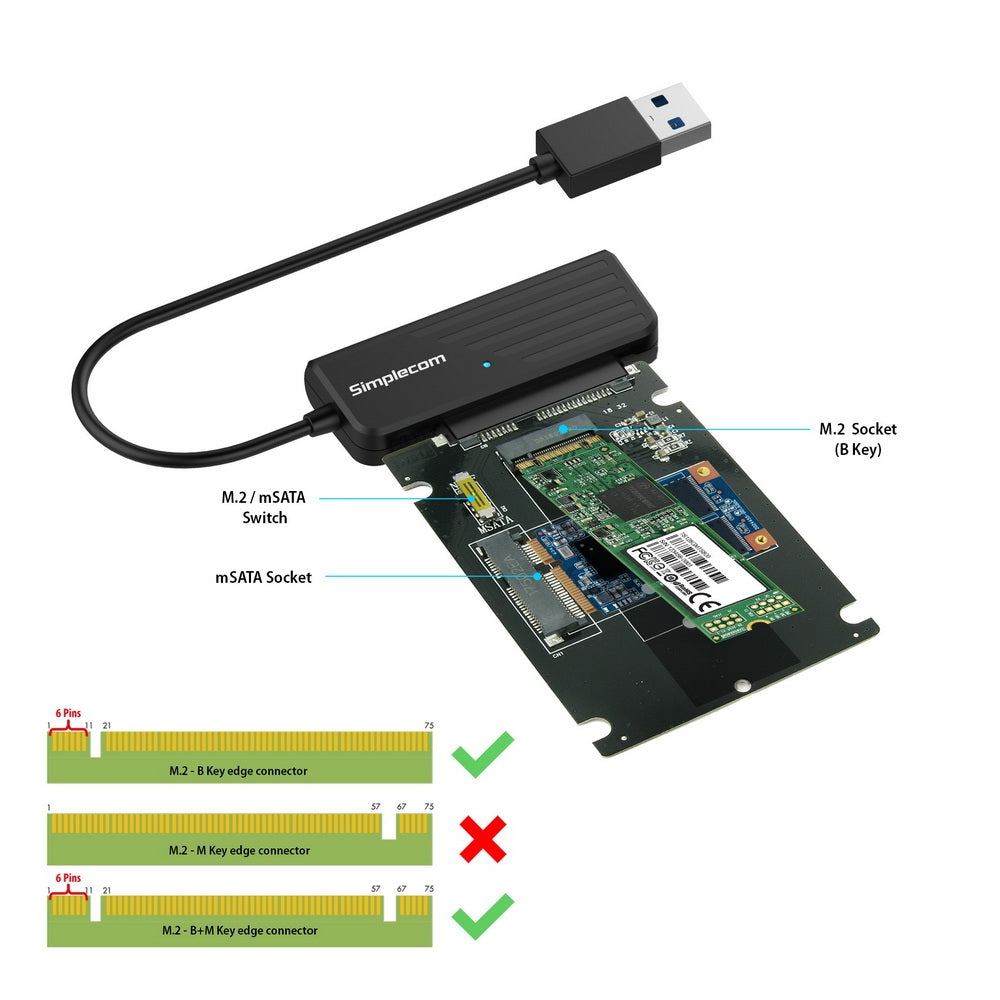

  • Onboard SSD Selector: Features a switch for selecting between the mSATA and M.2 interfaces.
  • Detachable USB Cable: Includes a removable USB 3.0 cable for convenient connectivity.
  • Plug and Play: No additional drivers are required on supported operating systems.
  • Backup and Migration: Useful for accessing existing SSD data, transferring files and performing storage backups.

Product Specifications

  • Brand: Simplecom
  • Model: SA225
  • Product Type: 2-in-1 mSATA and M.2 SSD to USB adapter
  • USB Interface: USB 3.0 (USB 3.1 Gen 1)
  • Maximum Data Transfer Rate: Up to 5Gbps
  • Supported M.2 SSD Sizes: 2230, 2242, 2260 and 2280
  • Supported M.2 Key Types: B Key and B+M Key SATA SSDs
  • Supported mSATA SSD: Full-size mSATA, 50.95 x 30mm
  • Circuit Board Dimensions: 97 x 65 x 5mm
  • Operating System Compatibility: Windows 7 and above, macOS 10.6 and above

Product Uses

Use the Simplecom SA225 to access compatible mSATA or M.2 SATA SSDs through a computer's USB port. It is suitable for data backup, file transfers, storage migration and retrieving files from supported SSDs. The adapter can also be connected to a SATA port after detaching the USB cable.

Package Includes

  • 1 x Simplecom SA225 mSATA and M.2 SSD Combo Adapter
  • 1 x USB 3.0 Cable
  • 1 x Screwdriver
  • Screws with Washers

Compatibility Note

Important: This adapter supports SATA-protocol mSATA and M.2 SSDs with B Key or B+M Key connections only. It does not support NVMe PCIe M.2 SSDs or M Key-only SSDs. Check your SSD's interface and key type before purchasing.
