Simplecom SA506 NVMe & SATA M.2 SSD to USB-C Adapter – USB 3.2 Gen 2 10Gbps, M.2 M-Key & B+M-Key, UASP, TRIM Support

Access, transfer and manage your solid-state drives with the Simplecom SA506 NVMe and SATA M.2 SSD to USB-C Adapter. Designed with dual-protocol compatibility, this versatile adapter supports both NVMe and SATA M.2 SSDs with M-Key or B+M-Key connectors. Its USB 3.2 Gen 2 interface supports data transfer speeds up to 10Gbps for compatible NVMe drives, making it useful for data migration, file transfers, drive cloning and backups.

Key Features & Benefits

• Dual-Protocol Compatibility: Supports both NVMe and SATA-based M.2 SSDs through one USB-C adapter.
• USB 3.2 Gen 2 Interface: Supports transfer rates up to 10Gbps with compatible NVMe SSDs and USB ports.
• Multiple M.2 Sizes: Compatible with 2230, 2242, 2260, 2280 and 22100 M.2 SSD sizes.

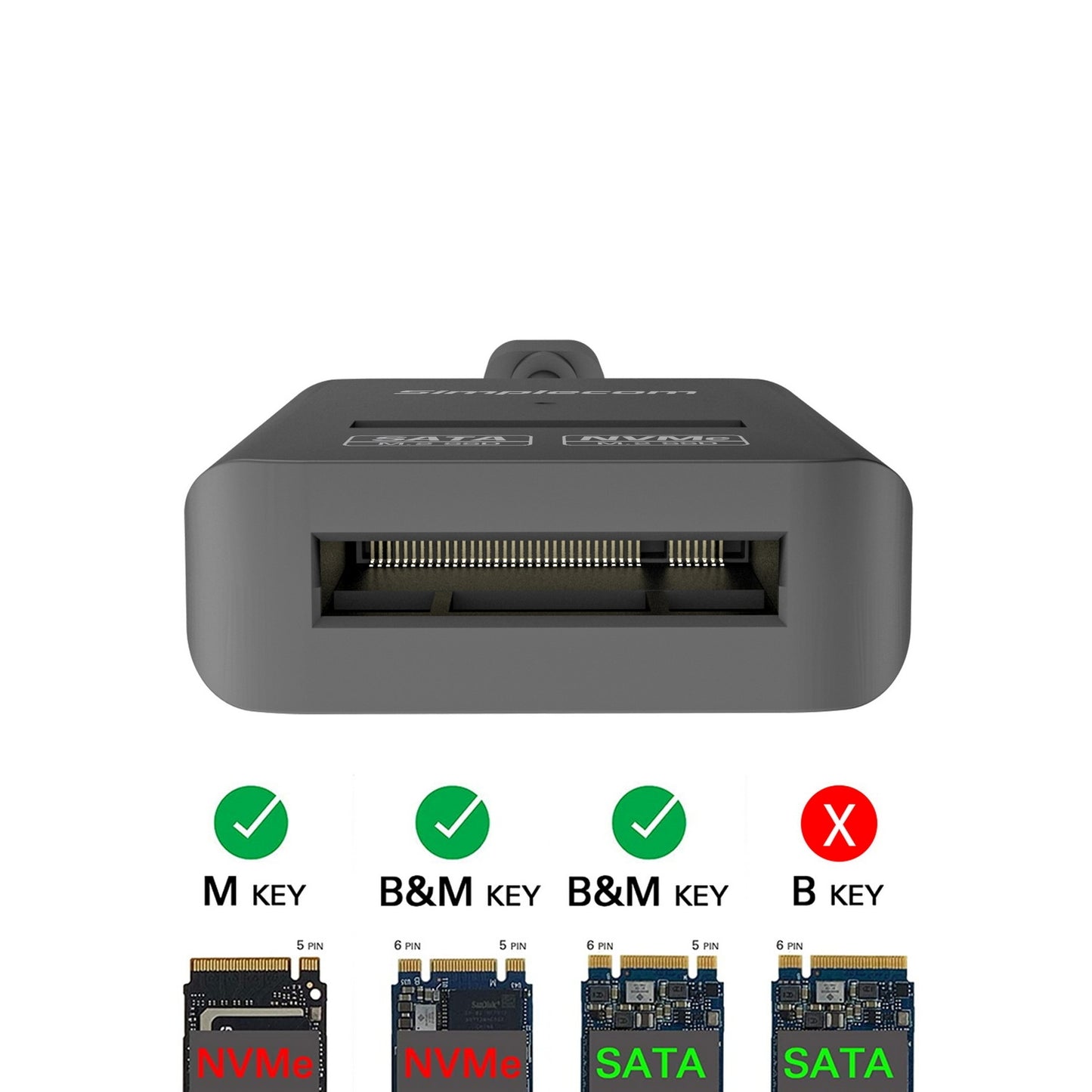

• M-Key and B+M-Key Support: Works with compatible NVMe M-Key and SATA B+M-Key drives.
• Convenient Cable-Style Design: Makes it easy to connect and swap different M.2 SSDs without installing them inside a computer or enclosure.
• UASP Support: Supports USB Attached SCSI Protocol for improved data transfer performance with compatible systems.
• TRIM Support: Supports the TRIM command for compatible SSDs.
• Plug and Play: USB-powered operation without requiring an external power supply or additional driver installation on supported systems.
• LED Indicator: Displays power and drive activity status.
• Compact Design: Lightweight ABS plastic construction makes it convenient for desktop use and portable storage access.

Product Specifications

• Brand: Simplecom
• Model: SA506
• Product Type: M.2 SSD to USB-C Adapter
• Host Interface: USB-C
• USB Standard: USB 3.2 Gen 2
• Maximum Transfer Rate: NVMe M.2 up to 10Gbps; SATA M.2 up to 6Gbps
• Supported SSD Protocols: NVMe M.2 and SATA M.2
• Supported Key Types: M-Key and B+M-Key
• Supported M.2 Sizes: 2230, 2242, 2260, 2280 and 22100
• Material: ABS Plastic
• Dimensions: 158 x 37 x 12mm (L x W x H)
• Operating Temperature: 0°C to 45°C
• Operating System Support: Windows 7 and above, macOS 10.8 and above
• Power: USB powered

Product Uses

Use the Simplecom SA506 to access M.2 SSDs from a computer, transfer files, migrate data, perform drive backups and retrieve files from compatible storage drives. Its cable-style design is particularly convenient when working with multiple M.2 SSDs that need to be connected and swapped regularly.

Package Includes

• 1 x Simplecom SA506 M.2 SSD to USB-C Adapter
• 1 x User Manual

Compatibility & Important Notes

• Supports both NVMe and SATA M.2 SSDs with compatible M-Key or B+M-Key connections.
• NVMe SSDs support transfer rates up to 10Gbps, while SATA M.2 SSD transfer rates are limited to 6Gbps.
• Actual transfer speeds depend on the SSD, USB port, computer and connected system.
• Ensure your SSD uses a supported M.2 protocol and physical size before connecting.
• This adapter is designed for M.2 SSDs and does not support standard 2.5-inch SATA drives.
