Simplecom SE504v2 NVMe / SATA Dual Protocol M.2 SSD USB-C Enclosure Tool-Free USB 3.2 Gen 2 10Gbps
Simplecom SE504v2 NVMe / SATA Dual Protocol M.2 SSD USB-C Enclosure Tool-Free USB 3.2 Gen 2 10Gbps
Simplecom SE504v2 NVMe / SATA Dual Protocol M.2 SSD USB-C Enclosure Tool-Free USB 3.2 Gen 2 10Gbps
SE504v2 is a portable and tool-free M.2 SSD enclosure, and upgraded to support both NVMe and SATA protocol based M.2 SSD. It allows quick and easy installation of M.2 SSD in a couple of seconds. Faster file backup and transfer with USB 3.2 Gen 2 interface, supports data transfer speed up to 10Gbps, to ensure quick access to files and save time.
This enclosure features aluminium housing for better heat dissipation. M.2 SSDs are high performance drives that get hot while accessing data, aluminium housing will help heat dissipation and protect your SSD from overheating.
It's compact and portable with durable aluminium housing, so you can easily put the enclosure into your pocket or laptop bag. The enclosure is plug and play and USB powered, no external power required.
Features
- Dual Protocol support for both NVMe and SATA M.2 SSD

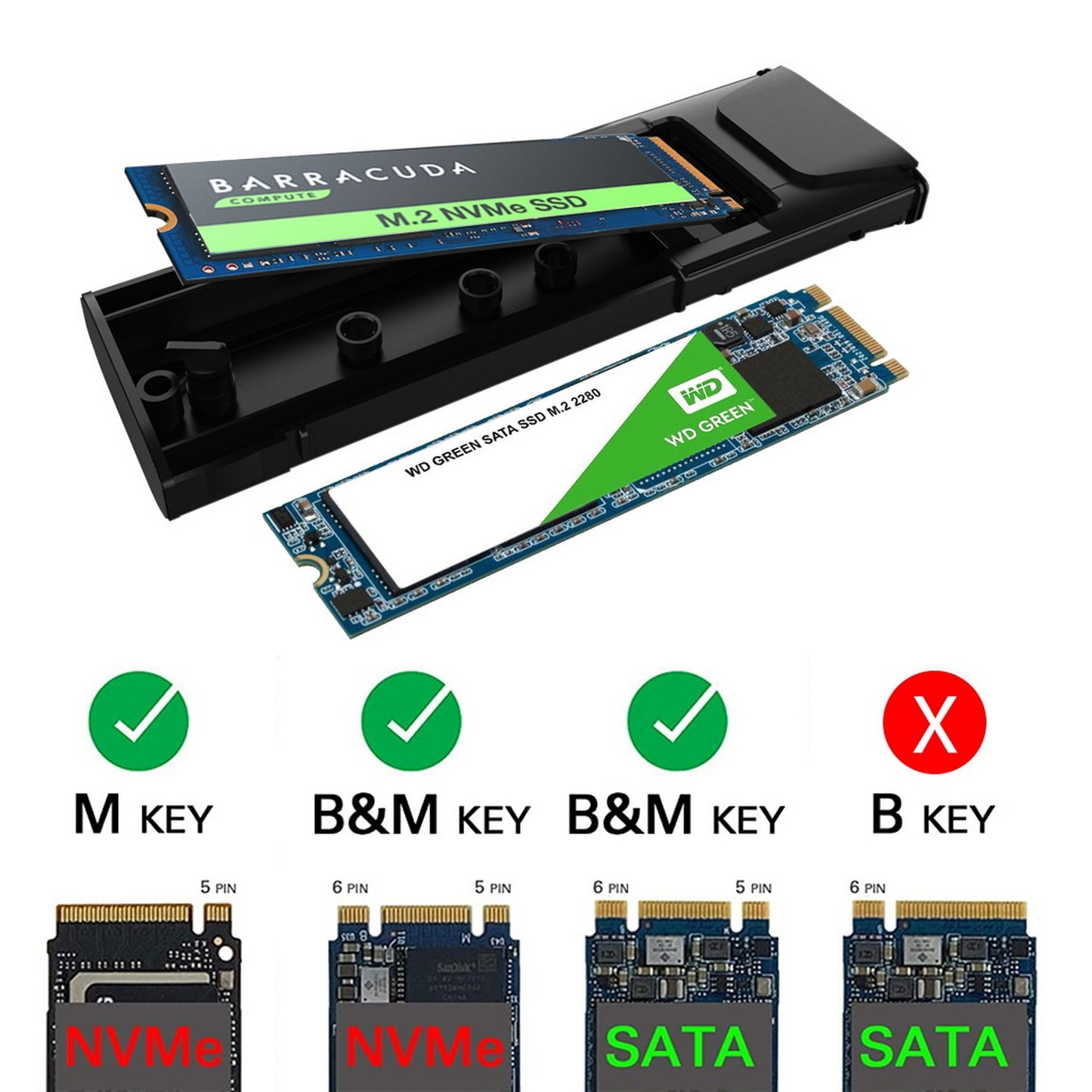

- Convert M Key or B+M Key M.2 SSD to a USB portable drive

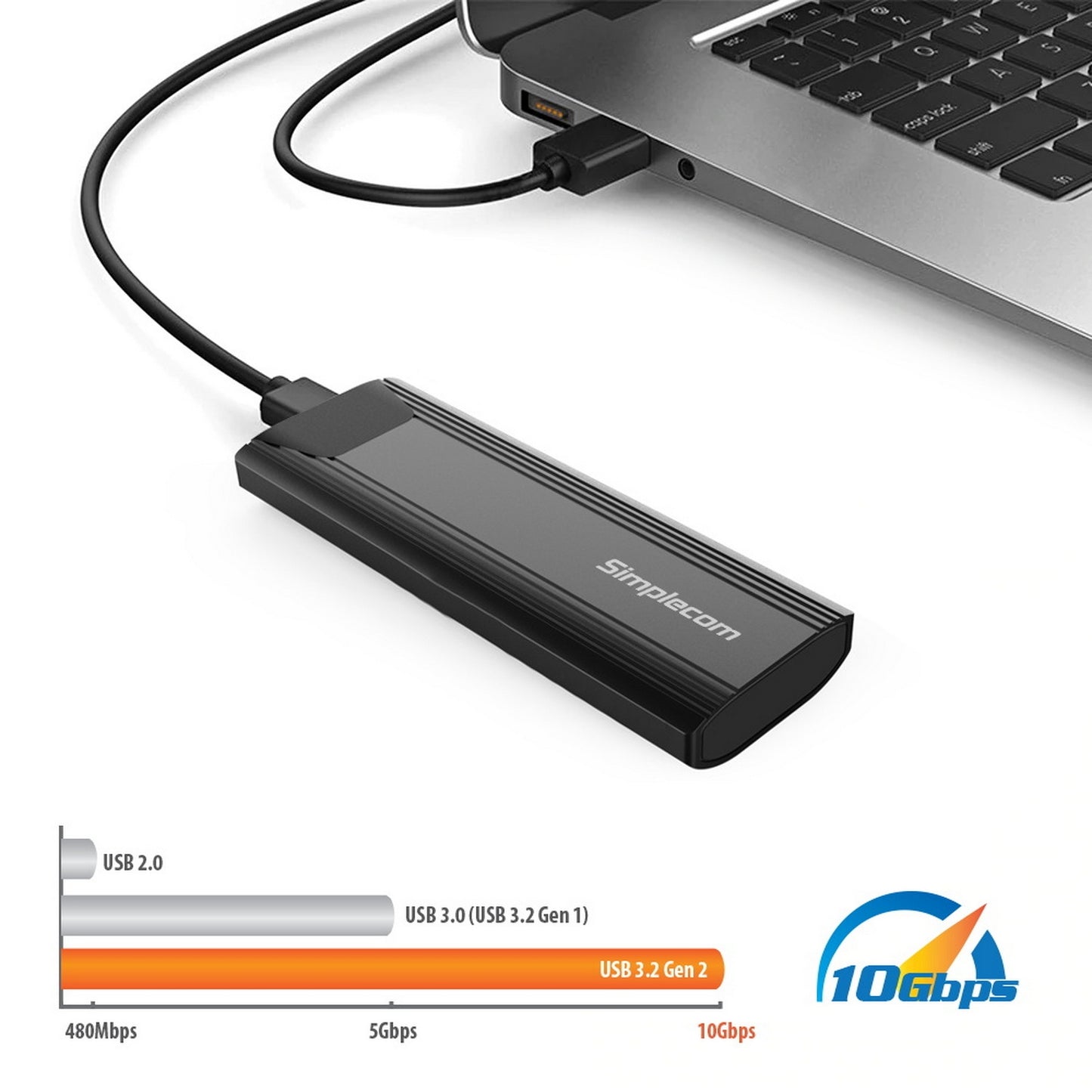

- USB 3.2 Gen 2 interface support data transfer speeds up to 10Gbps
- Aluminium case for durability and excellent heat dissipation
- Tool-free design, quick and easy installation of SSDs without any tools
- Supports USAP for faster data transfer speed and maximum performance
- Supports TRIM command for improved data writing to extend SSD life
- LED indicator for power and activity status
- Plug and play, no driver required
Specifications
- Model: SE504v2
- Interface: USB-C (USB 3.2 Gen 2)
- Housing Material: Aluminium
- Transfer Rate: NVMe M.2 up to 10Gbps, SATA M.2 up to 6Gbps
- Compatible M.2 Protocol: NVMe M.2, SATA M.2

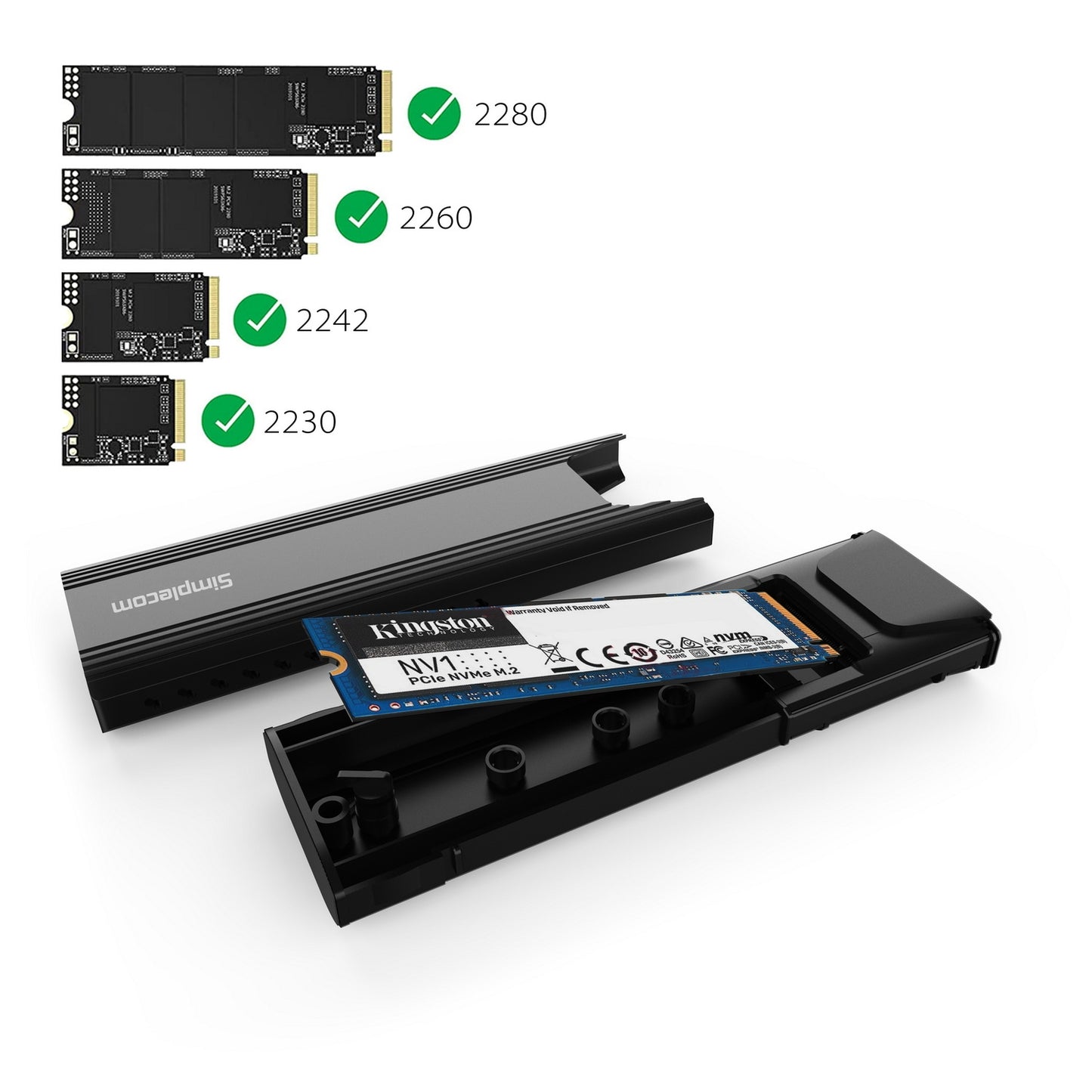

- Compatible M.2 Size: 2230, 2242, 2260, 2280
- Dimension: 112x40x13.4mm (LxWxH)
- Operating System Support: Windows 7 and above, MacOS 10.8 and above
Package Contents

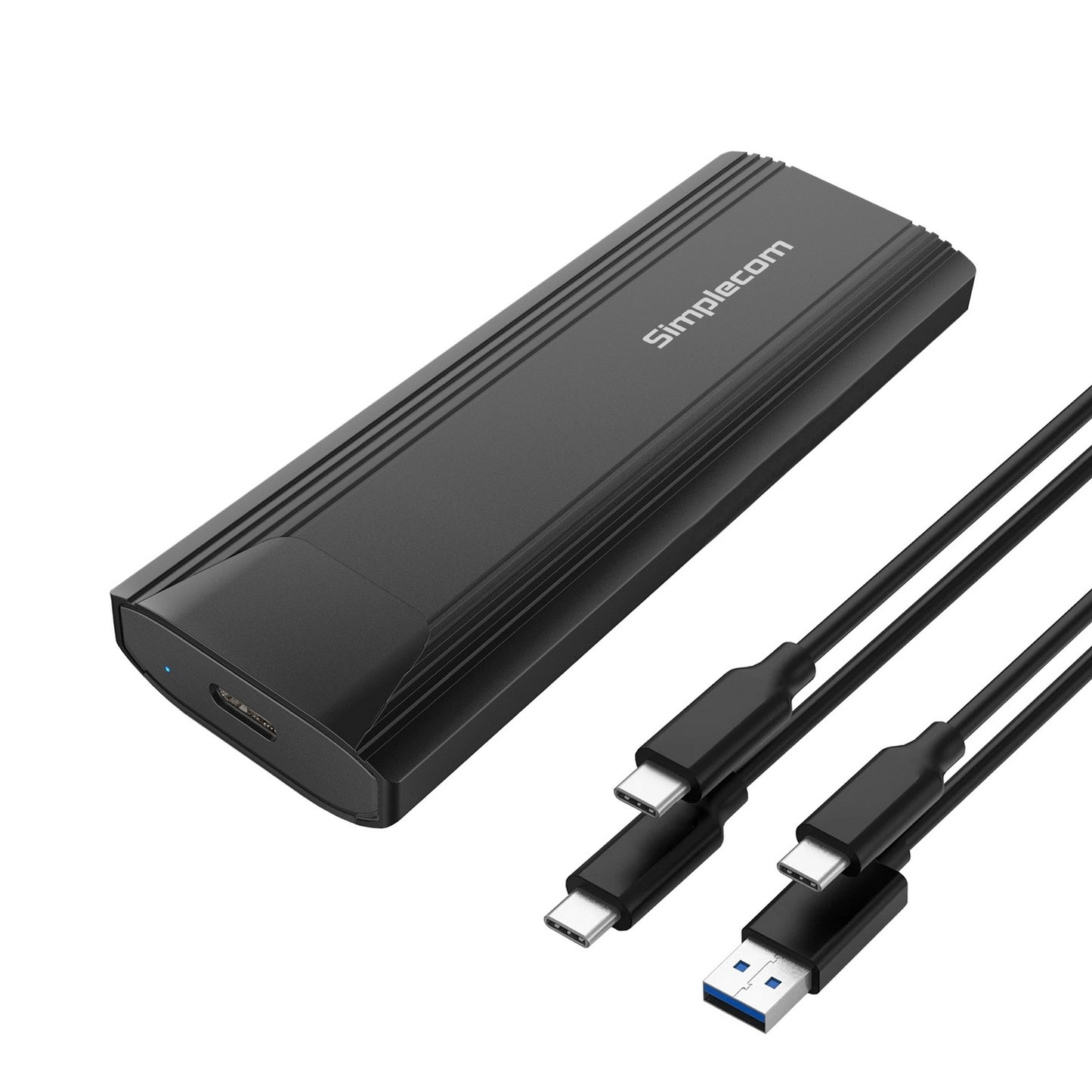

- 1x SE504v2 M.2 SSD Enclosure

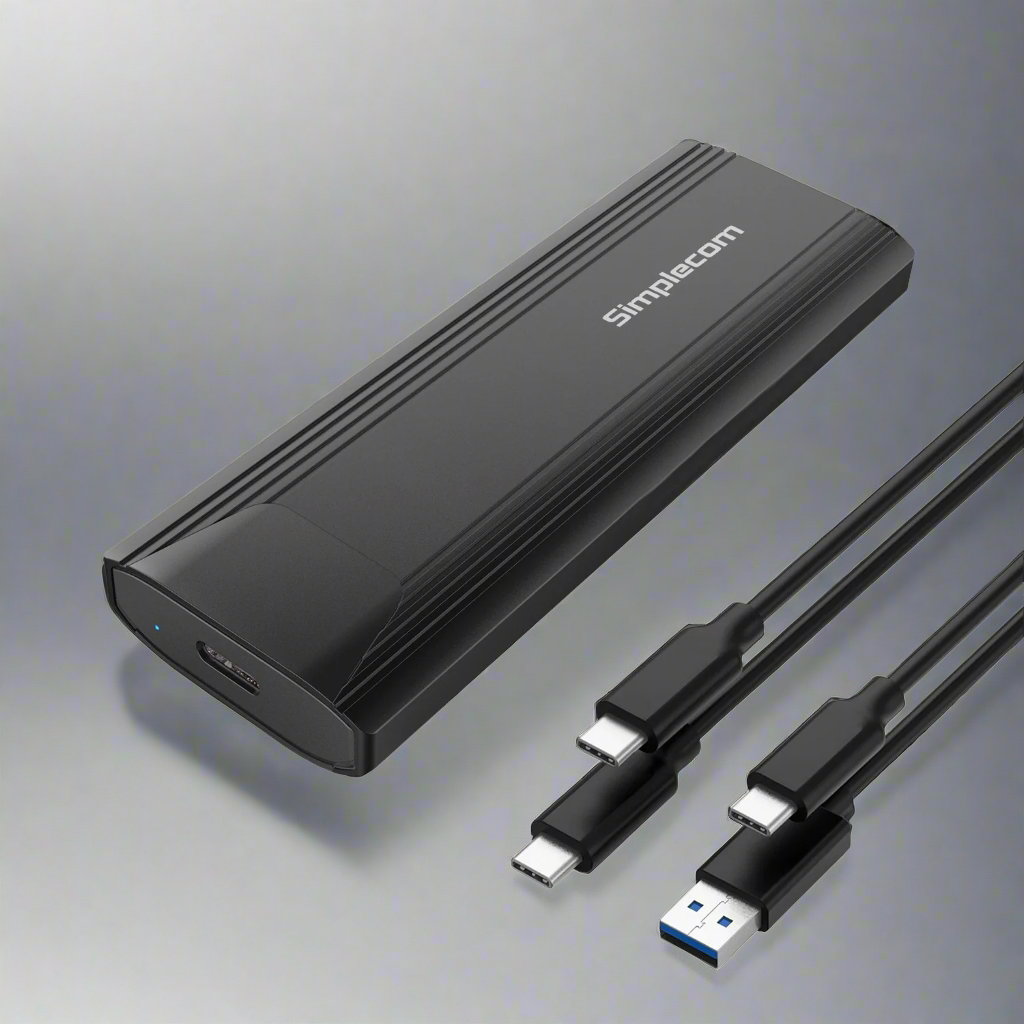

- 1x USB C to USB C Cable
- 1x USB C to USB A Cable
- 1x Thermal Pad
Important Note
SE504v2 supports both NVMe and SATA protocol based M.2 SSD (M Key or B+M Key), bandwidth will be limited to 6Gbps when using SATA M.2 SSD, as maximum transfer rate of SATA protocol is 6Gbps
