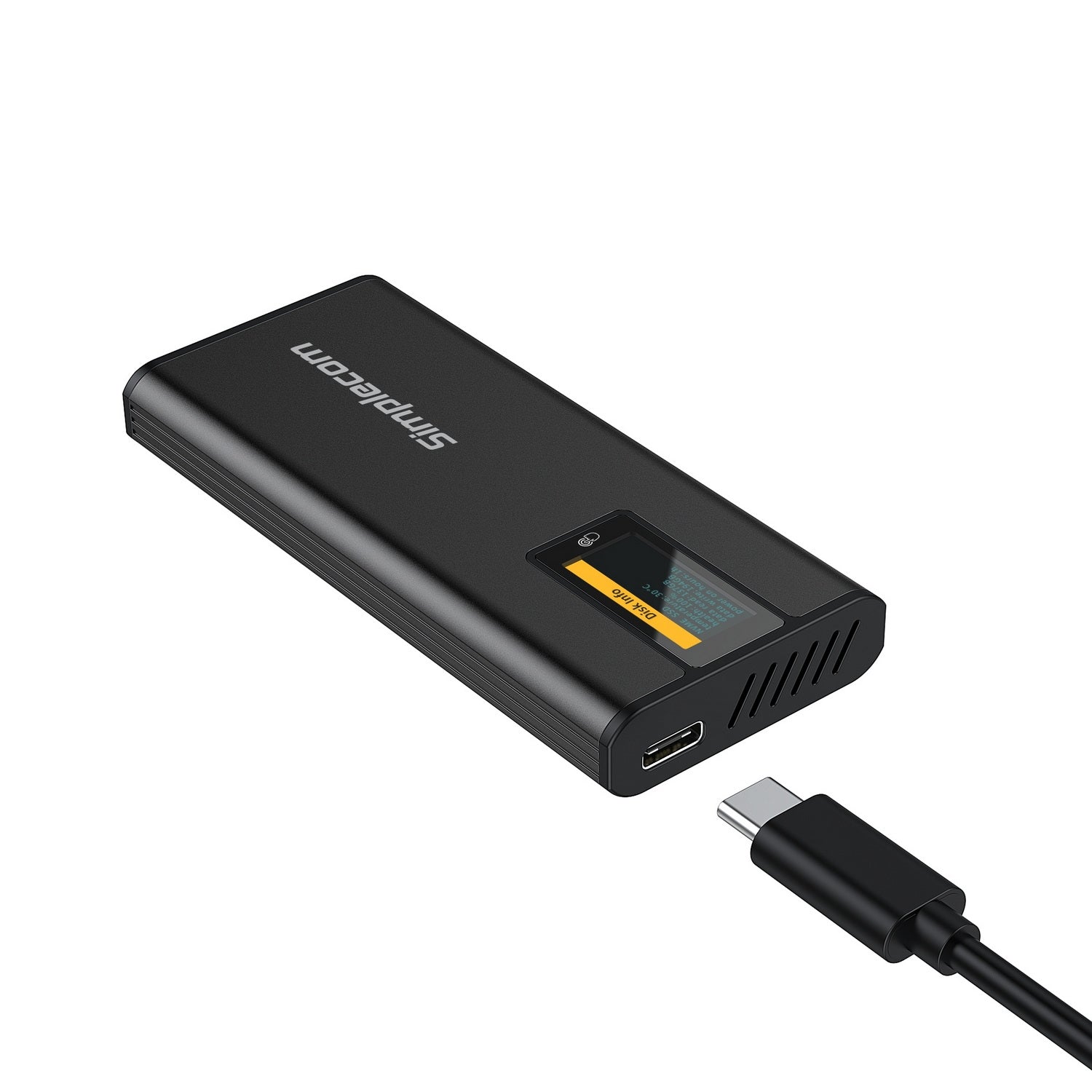

Simplecom SE530 NVMe & SATA M.2 SSD Enclosure – USB-C 3.2 Gen 2 10Gbps, SMART LED Display, Tool-Free Aluminium Case

Turn your compatible M.2 SSD into portable external storage with the Simplecom SE530 NVMe and SATA M.2 SSD to USB-C Enclosure. Featuring USB 3.2 Gen 2 connectivity with transfer speeds of up to 10Gbps for NVMe SSDs, this enclosure provides a convenient way to access, transfer and manage your stored data. Its built-in SMART LED screen displays useful SSD information, including temperature, health status, capacity and read/write activity, even without connecting to a computer.

Key Features & Benefits

• NVMe and SATA Compatibility: Supports both NVMe and SATA protocol-based M.2 SSDs with M-Key or B+M-Key connectors.
• 10Gbps USB-C Connectivity: USB 3.2 Gen 2 interface supports data transfer speeds of up to 10Gbps when used with a compatible NVMe SSD and host device.

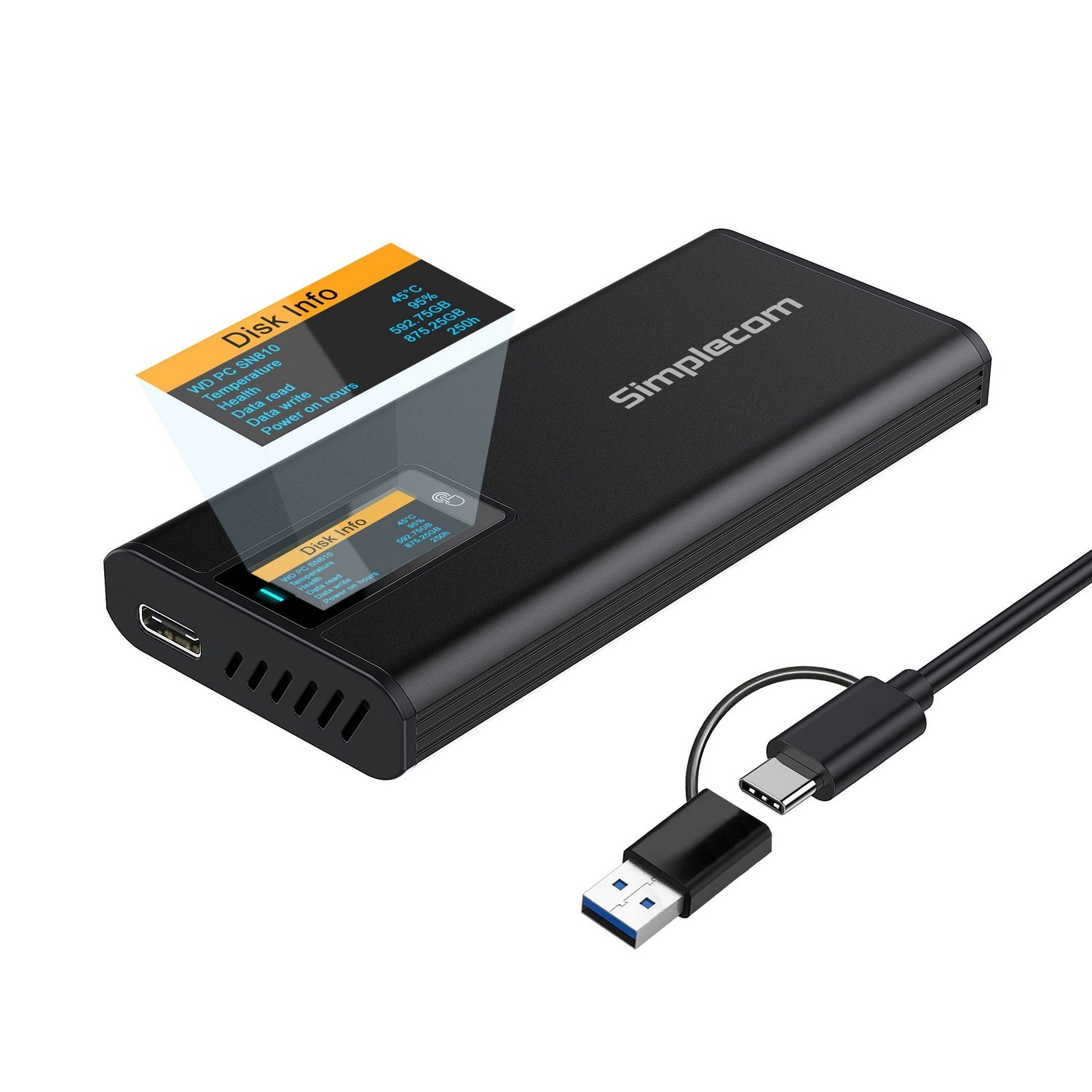

• Built-In SMART LED Screen: Displays important SSD information without requiring a computer connection.
• Real-Time SSD Monitoring: View information such as SSD temperature, health percentage, capacity, read/write activity and power-on hours.
• Convenient Touch Button: Switch between different information pages using the built-in touch control.

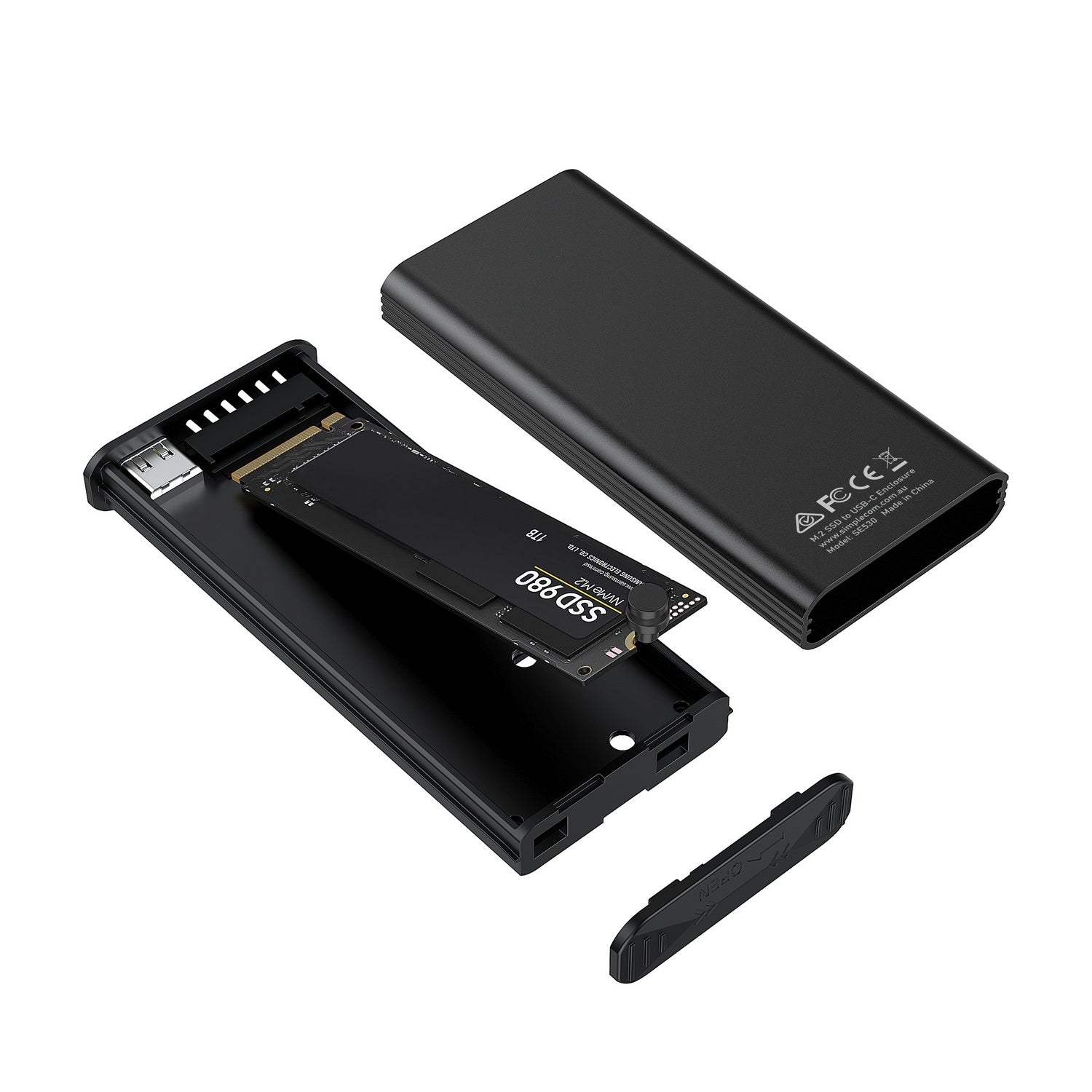

• Tool-Free Installation: Install or remove compatible M.2 SSDs without needing additional tools.
• Aluminium Housing: Durable aluminium and ABS construction helps protect the SSD and dissipate heat.
• UASP Support: Supports USB Attached SCSI Protocol for improved data transfer performance with compatible systems.
• TRIM Support: Supports the TRIM command for compatible SSDs and operating systems.
• Plug and Play: Designed for convenient operation without additional driver installation on supported systems.

Product Specifications

• Brand: Simplecom
• Model: SE530
• Product Type: External M.2 SSD Enclosure
• Host Interface: USB-C
• USB Standard: USB 3.2 Gen 2
• Maximum Transfer Rate: Up to 10Gbps (NVMe) / Up to 6Gbps (SATA)
• Supported SSD Protocols: NVMe M.2 and SATA M.2
• Supported SSD Key Types: M-Key and B+M-Key
• Supported SSD Sizes: 2242, 2260 and 2280
• Display: Built-in SMART LED screen with touch control
• Housing Material: Aluminium and ABS plastic

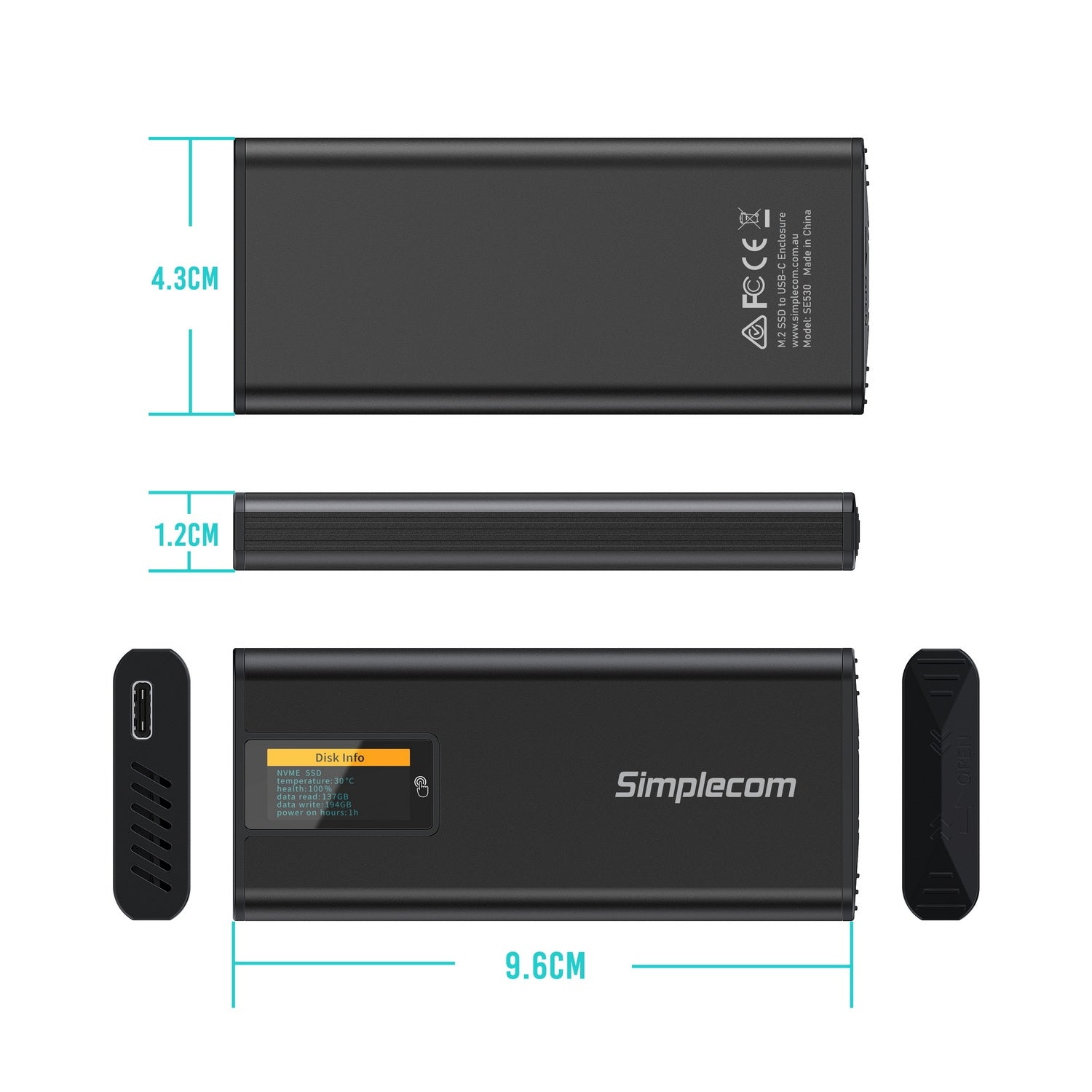

• Dimensions: 96 x 43 x 12mm
• Operating System Support: Windows 7 and above, macOS 10.8 and above
• Additional Features: UASP, TRIM and tool-free installation

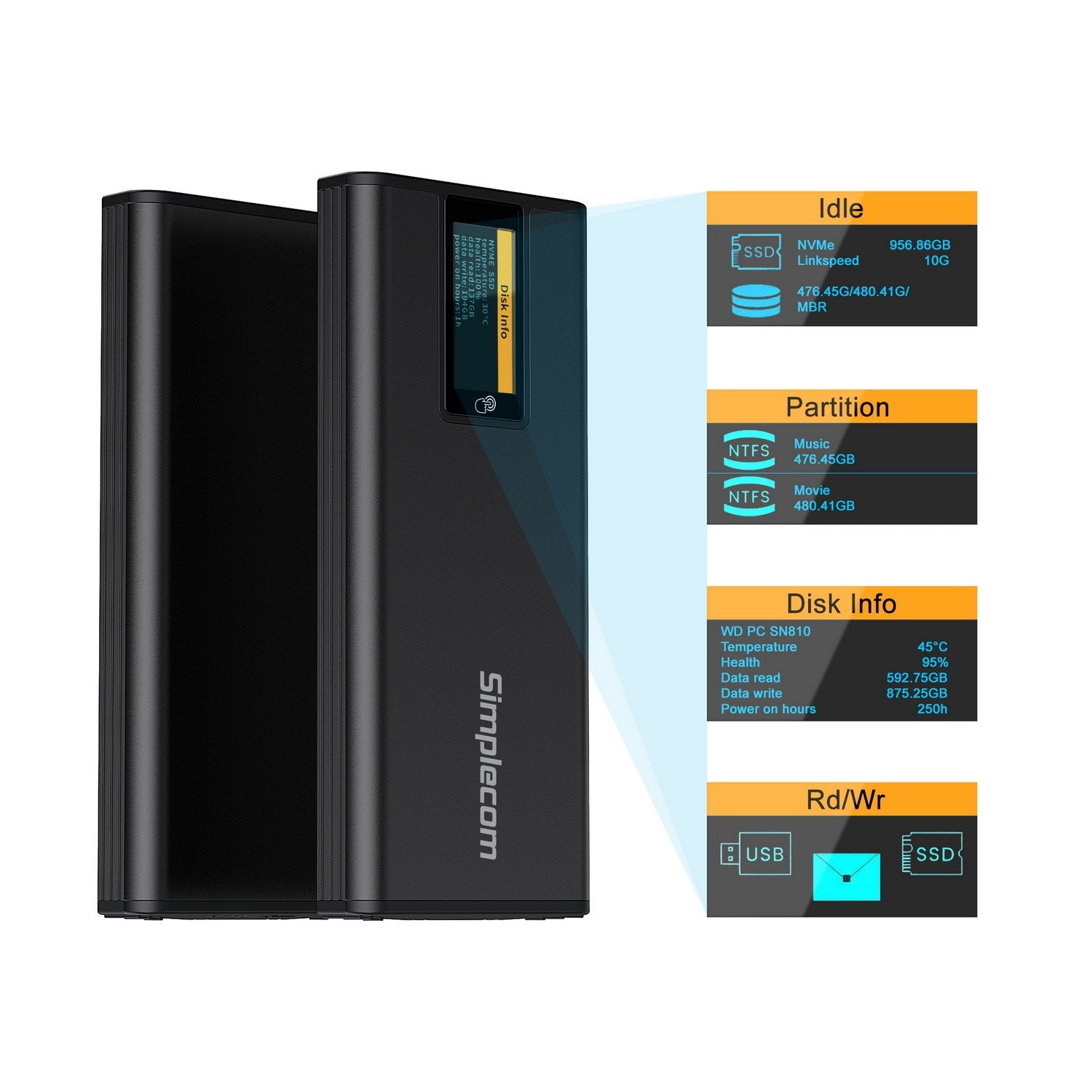

SMART LED Display Information

• SSD read, write and sleep status
• SSD type and storage capacity
• USB connection speed
• Partition details and type
• SSD temperature
• SSD health percentage
• Total data read and written
• Power-on hours
• Power cycle count
• Unsafe shutdown count

Product Uses

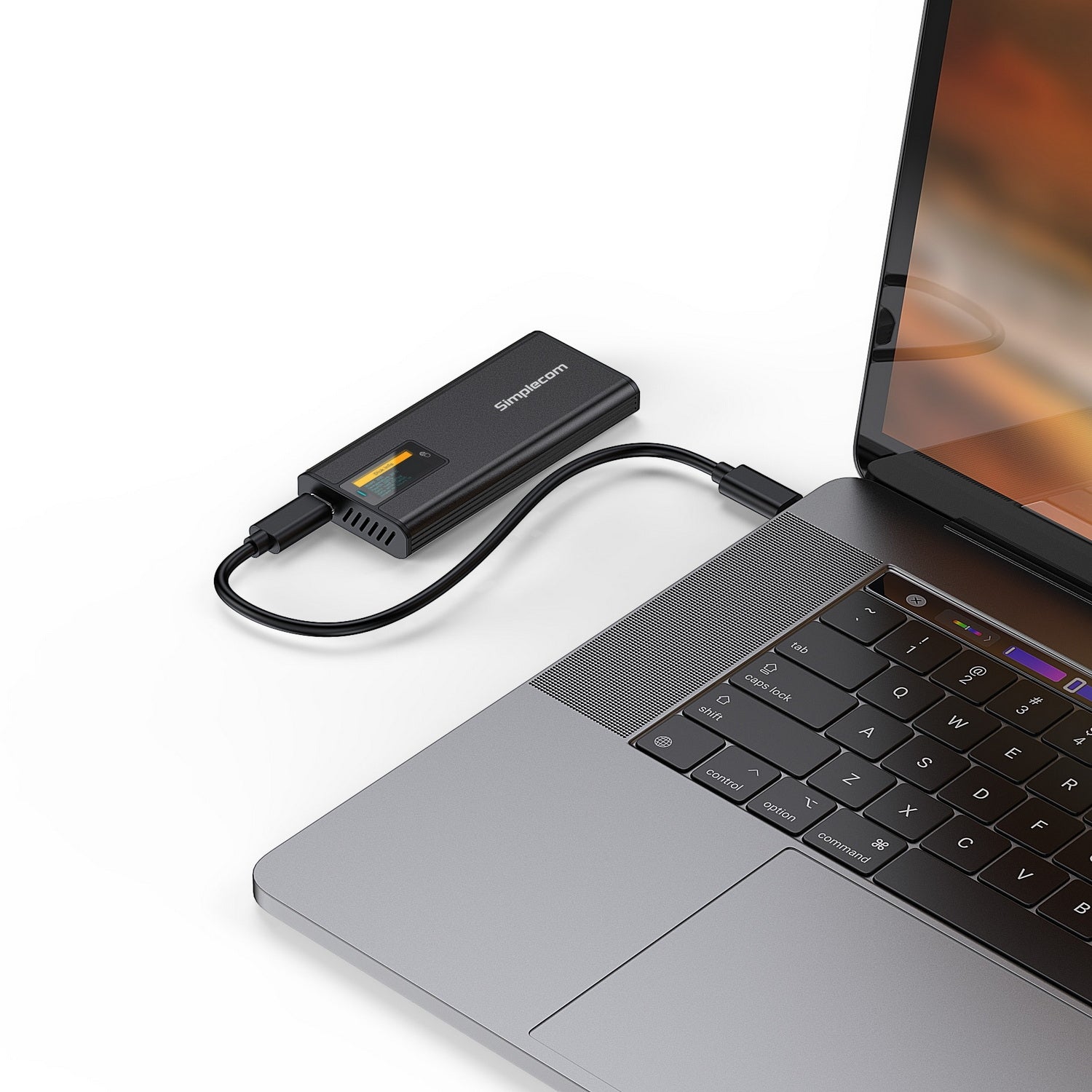

Use the Simplecom SE530 to convert a compatible internal M.2 SSD into portable external storage. It is suitable for transferring large files, backing up important documents, accessing stored media, expanding computer storage and monitoring SSD information. Its compact design makes it convenient for home, office and travel use.

Package Includes

• 1 x Simplecom SE530 M.2 SSD Enclosure
• 1 x USB-C and USB-A Combo Cable

Compatibility & Important Notes

• Compatible with NVMe and SATA-based M.2 SSDs using M-Key or B+M-Key connectors.
• Supports M.2 SSD lengths of 2242, 2260 and 2280.
• NVMe SSDs support transfer rates of up to 10Gbps, depending on the host connection and SSD performance.
• SATA M.2 SSD transfer speeds are limited to a maximum of 6Gbps due to the SATA protocol.
• An M.2 SSD is required and is not included with the enclosure.
• Actual transfer speeds depend on the SSD, USB port, cable and connected computer.

Before purchasing, check your SSD's protocol, key type and physical size to ensure compatibility with the SE530 enclosure.
